Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the radiator lower air deflector bolts.

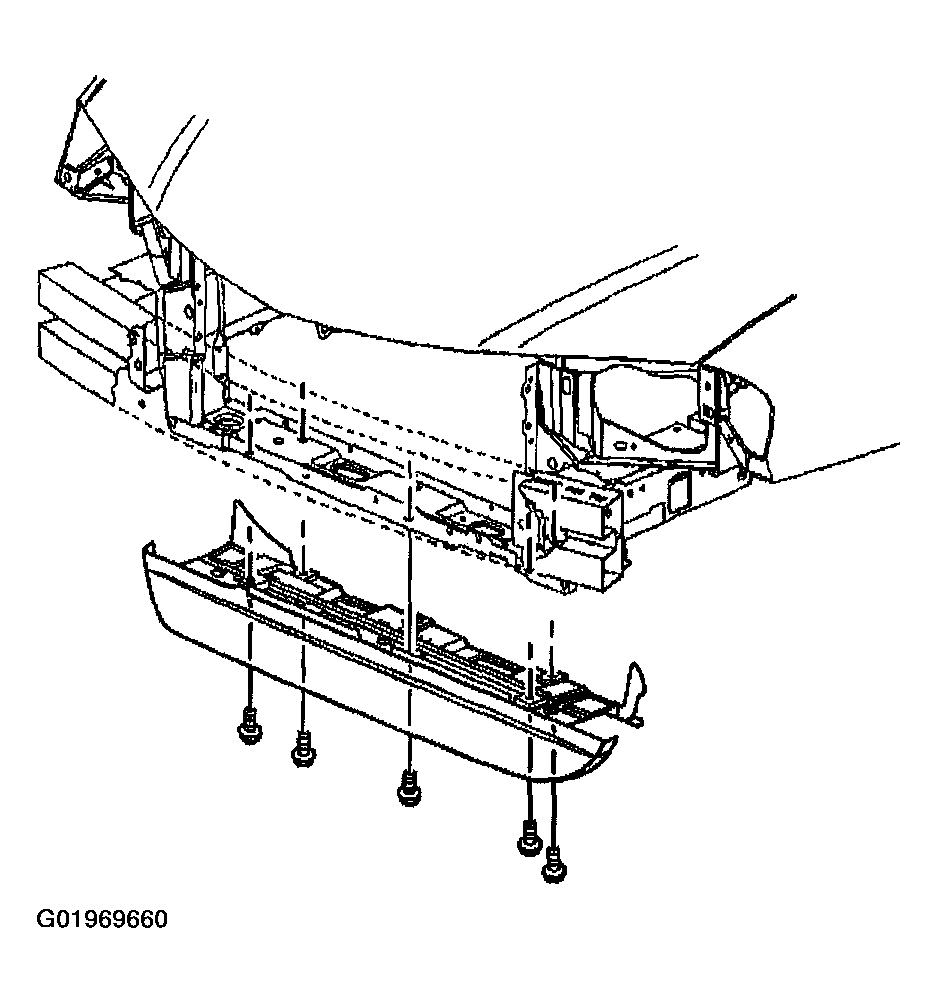

    Fig 1: Removing Radiator Lower Air Deflector & Mounting Bolts
    G01969660Courtesy of GENERAL MOTORS CORP.
  3. Remove the radiator lower air deflector.
