Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the radiator lower air deflector.

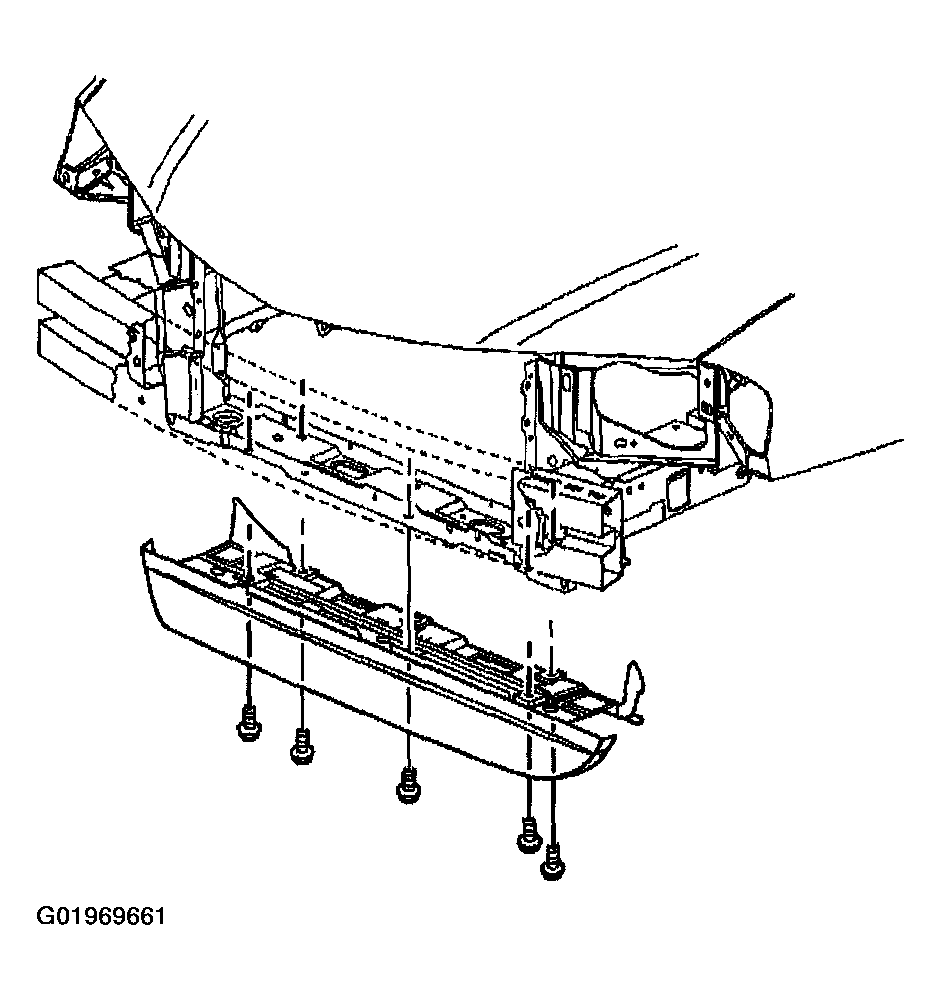

Fig 1: Installing Radiator Lower Air Deflector & Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the radiator lower air deflector bolts.
Tighten

Tighten the bolts to 20 N.m (15 lb ft).
Lower the vehicle.
