Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cooling fans. Refer to COOLING FAN REPLACEMENT - ELECTRIC  .
  2. Disconnect the cooling fan wiring harness from each cooling fan motor.
  3. Remove the cooling fan electrical harness from the fan shroud.
  4. Remove the cooling fan blade nuts.

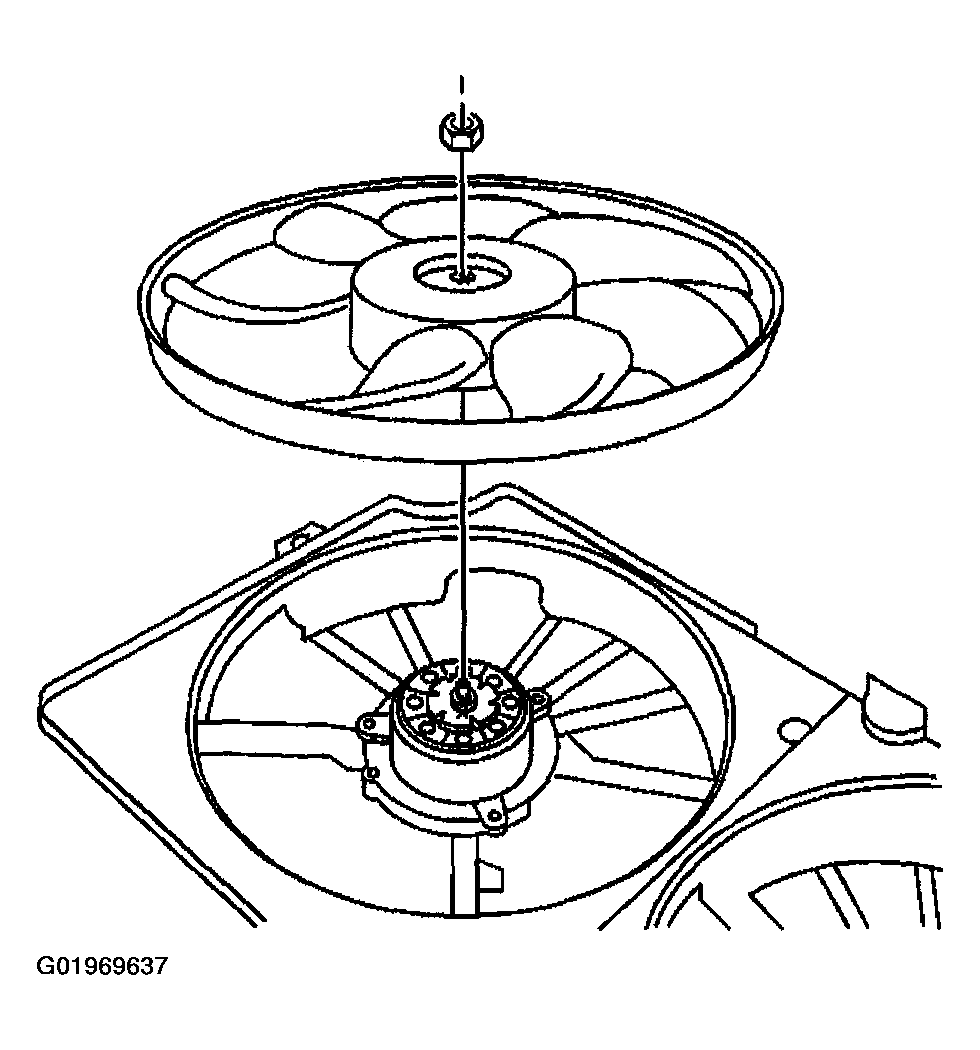

    Fig 1: Removing Cooling Fan Blades & Nuts
    G01969637Courtesy of GENERAL MOTORS CORP.
  5. Remove the cooling fan blades.
  6. Remove the cooling fan motors bolts.

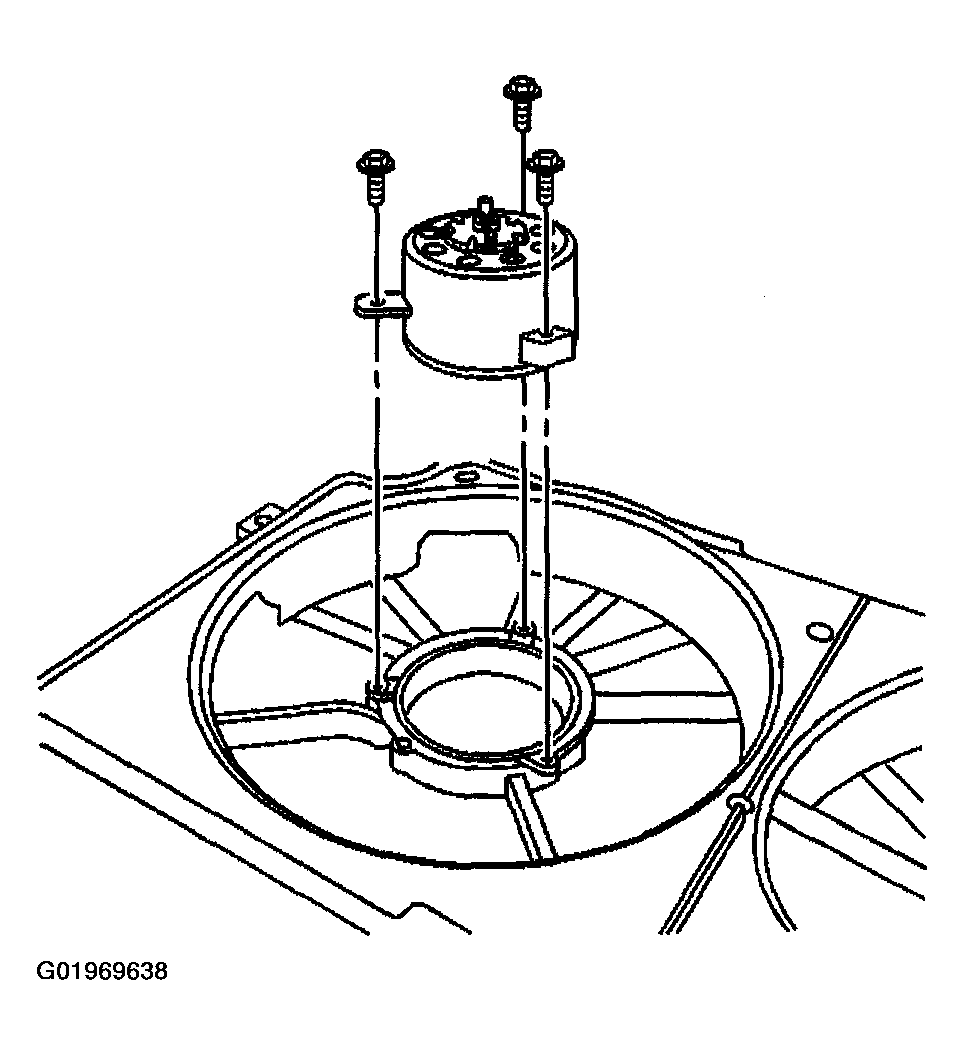

    Fig 2: Removing Cooling Fan Motors & Mounting Bolts
    G01969638Courtesy of GENERAL MOTORS CORP.
  7. Remove the cooling fan motors from the fan shroud.
