Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use compressed air in order to blow oil out of the tapped holes in the cylinder head.
  2. Lubricate the ends of the push rods with new engine oil.
  3. Install the push rods to the same position on the cylinder head.

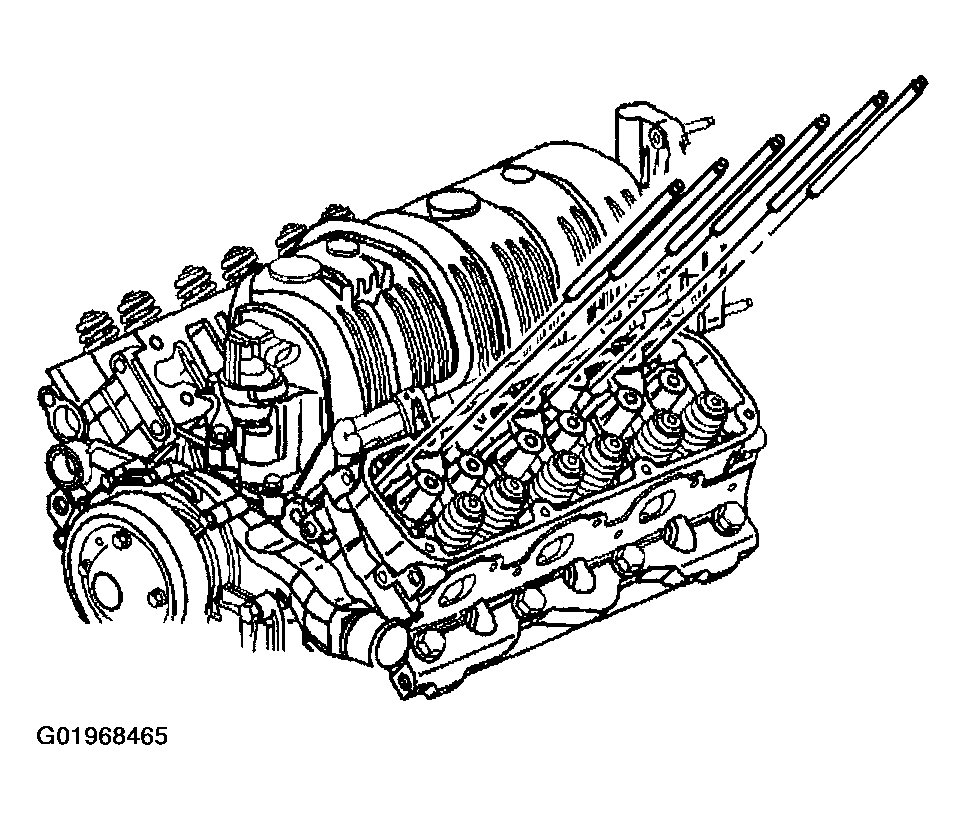

    Fig 1: Installing Push Rods
    G01968465Courtesy of GENERAL MOTORS CORP.
  4. Install the push rod guide plates.

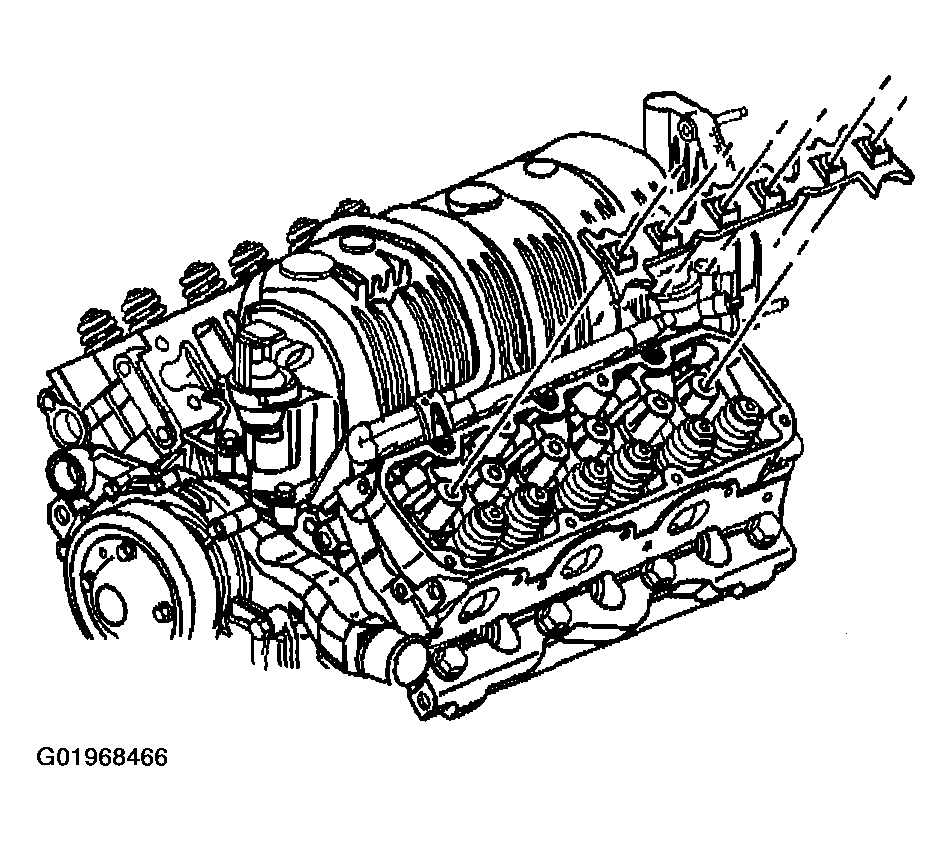

    Fig 2: Installing Push Rod Guide Plates
    G01968466Courtesy of GENERAL MOTORS CORP.
  5. Install the valve rocker arms.
    NOTE: This bolt is designed to permanently stretch when tightened. The correct part number fastener must be used to replace this type of fastener. Do not use a bolt that is stronger in this application. If the correct bolt is not used, the parts will not be tightened correctly. The system or the components may be damaged.
  6. Apply threadlocker GM P/N 12345493, (Canadian P/N 10953488) or equivalent to the rocker arm bolt threads.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the valve rocker arm bolts.

    Tighten

    1. 7.1. Tighten the bolts to 15 N.m (11 lb ft).
    2. 7.2. Use the J 36660-A  to rotate the bolts an additional 90 degrees.

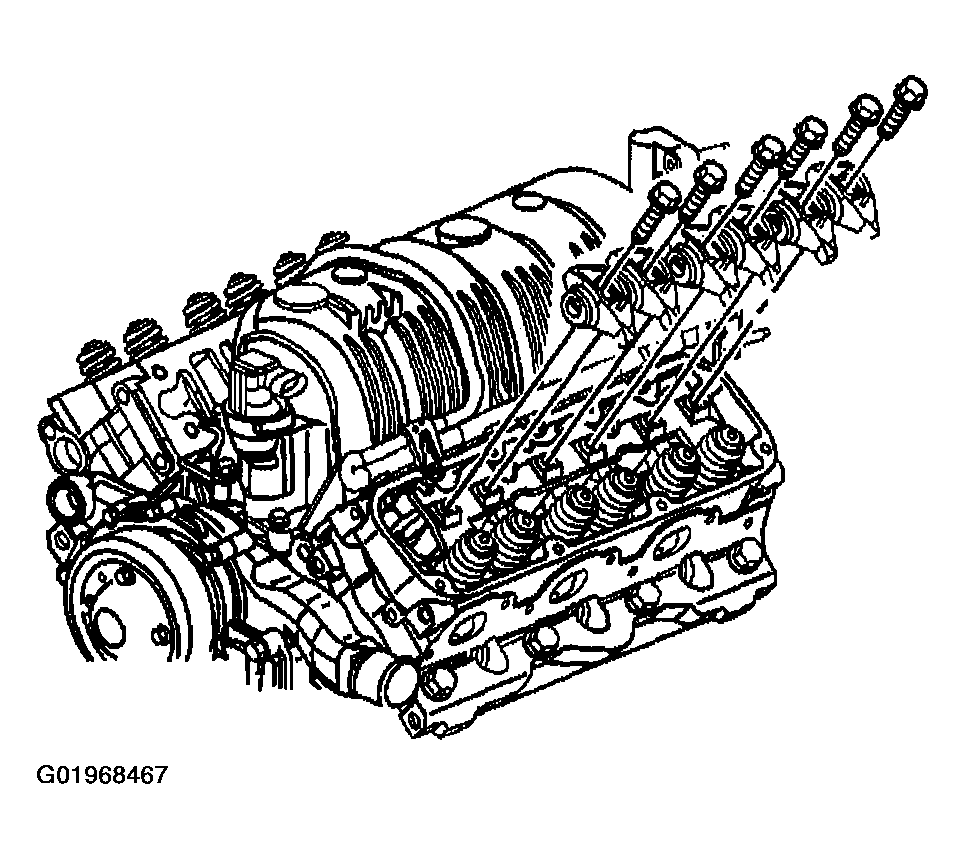

    Fig 3: Installing Valve Rocker Arms & Rocker Arm Bolts
    G01968467Courtesy of GENERAL MOTORS CORP.
  8. Install the left or the right valve rocker arm cover. Refer to VALVE ROCKER ARM COVER REPLACEMENT - LEFT  or VALVE ROCKER ARM COVER REPLACEMENT - RIGHT  .
  9. Inspect the valve train for noise.
