Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Dip the valve lifters in prelube GM P/N 12345501, (Canadian P/N 992704) or equivalent.
  2. Install the valve lifters to the same position the valve lifters were removed.
  3. Install the valve lifter guides.

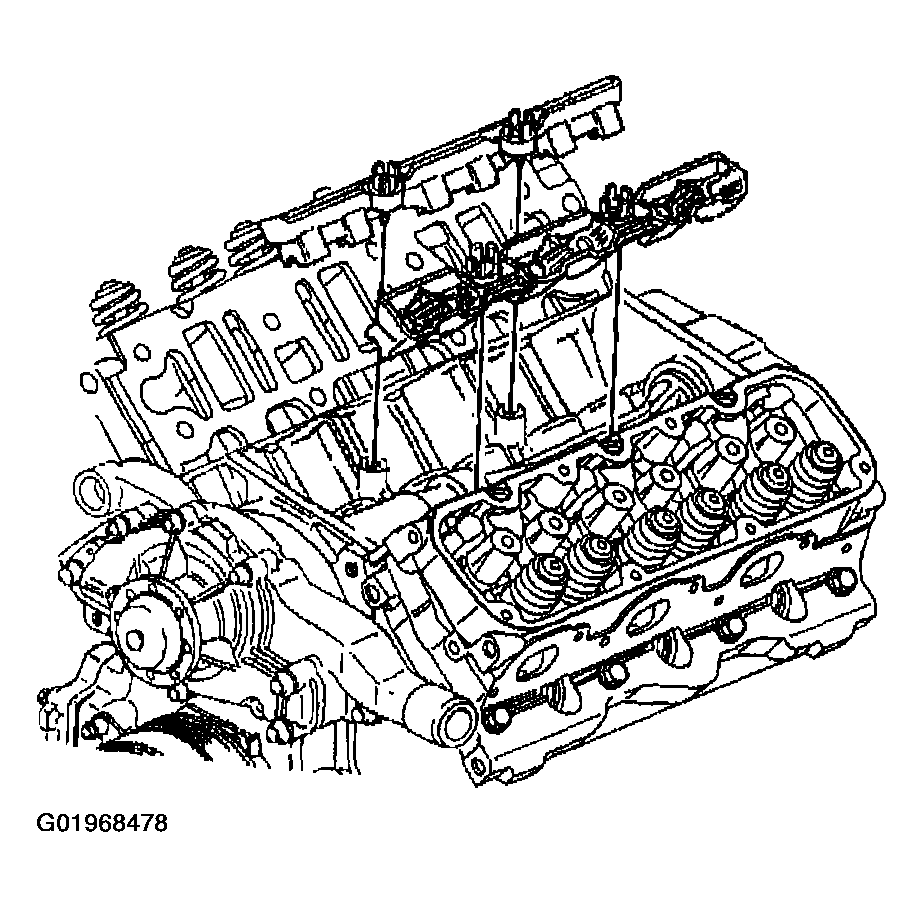

    Fig 1: Installing Valve Lifter Guides
    G01968478Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the valve lifter guide bolts.

    Tighten

    Tighten the bolts to 30 N.m (22 lb ft).

  5. Install the push rod guide plates, the push rods, the valve rocker arms, and the bolts. Refer to VALVE ROCKER ARM AND PUSH ROD REPLACEMENT  .

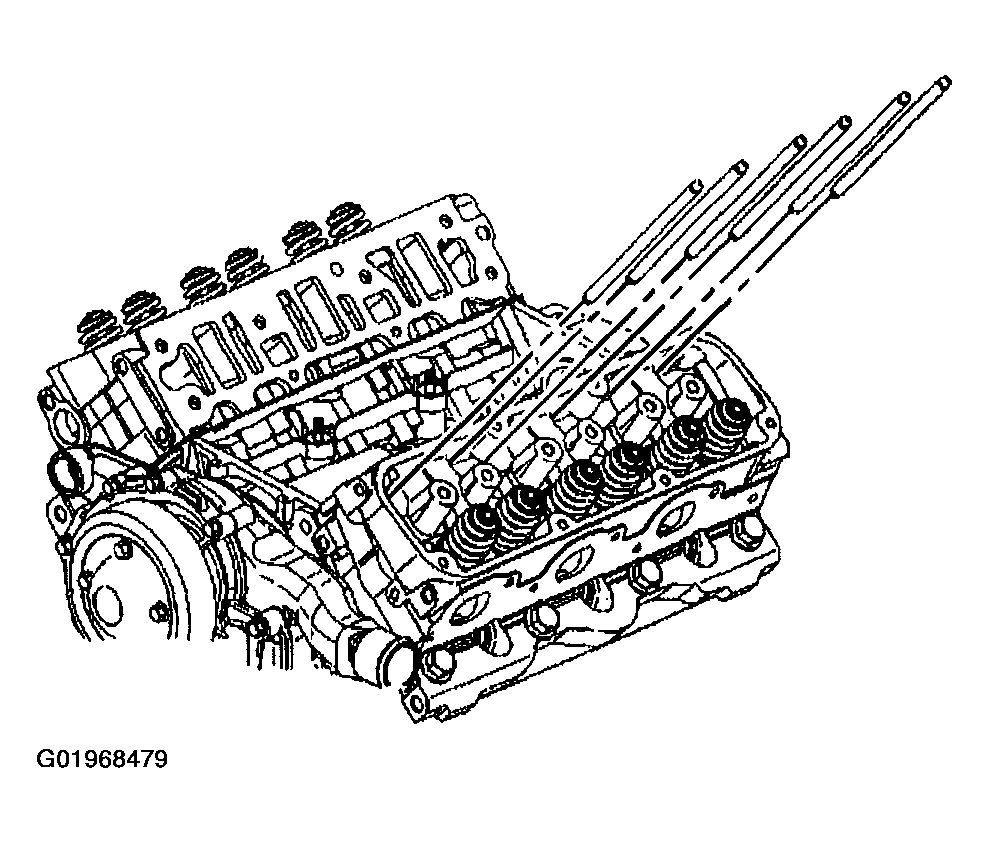

    Fig 2: Installing Push Rods
    G01968479Courtesy of GENERAL MOTORS CORP.
  6. Install the lower intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - LOWER (L36)  or INTAKE MANIFOLD REPLACEMENT - LOWER (L67)  .
  7. Install the left or the right valve rocker arm cover. Refer to VALVE ROCKER ARM COVER REPLACEMENT - LEFT  or VALVE ROCKER ARM COVER REPLACEMENT - RIGHT  .
