Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Raise the hood.
Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
Remove the cross vehicle brace. Refer to BRACE REPLACEMENT -- CROSS VEHICLE in Body Front End.

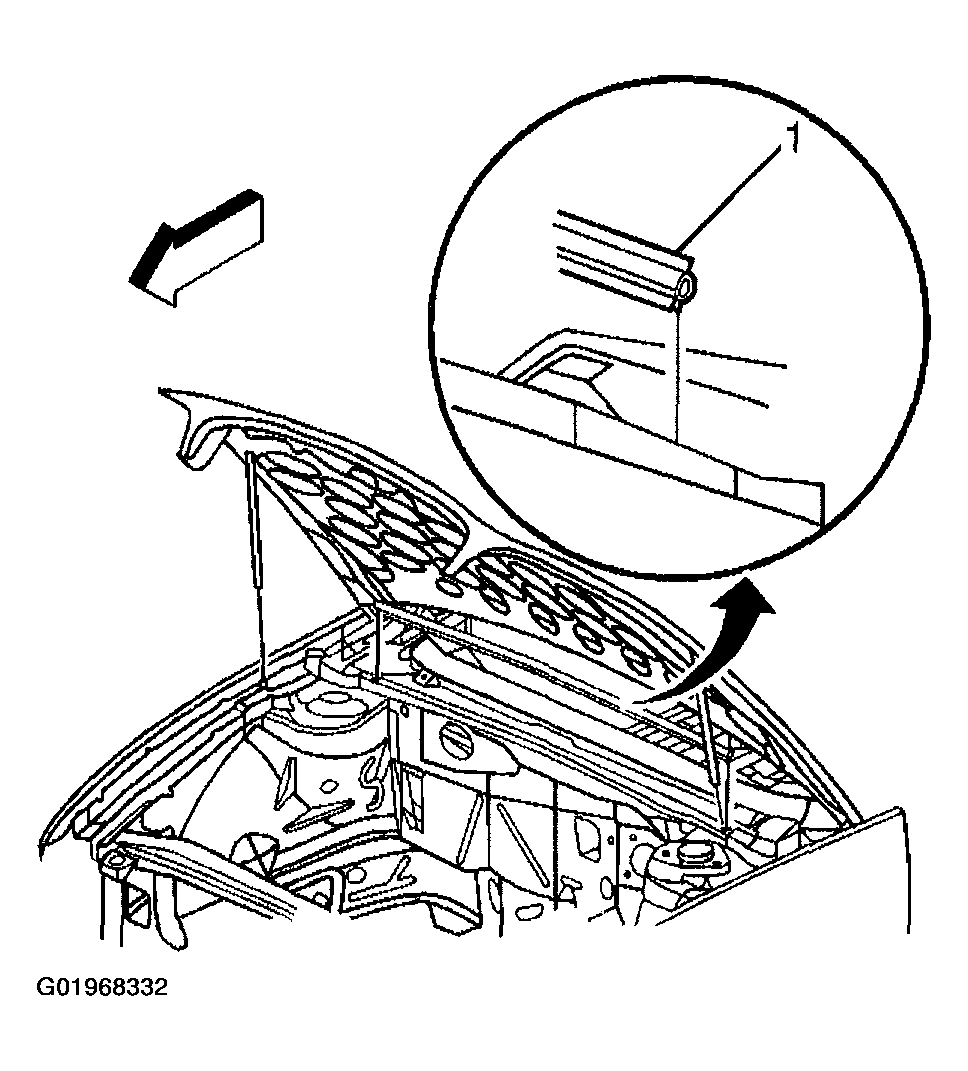

Remove the hood side rear seal (1) from the pinchweld flange.

Fig 1: Removing Hood Side Rear Seal From Pinchweld Flange
Courtesy of GENERAL MOTORS CORP.

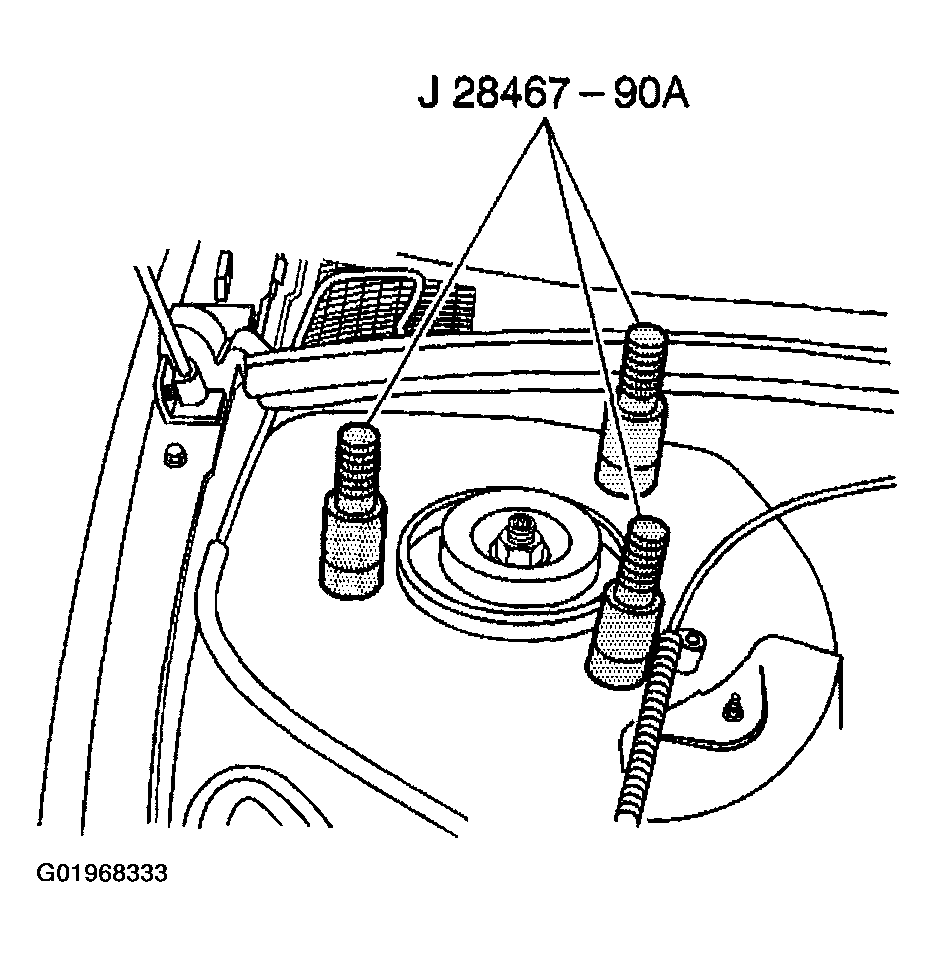

Install the J 28467-90A onto the strut attaching studs.

Fig 2: Installing Engine Support Adapters Onto Strut Attaching Studs
Courtesy of GENERAL MOTORS CORP.

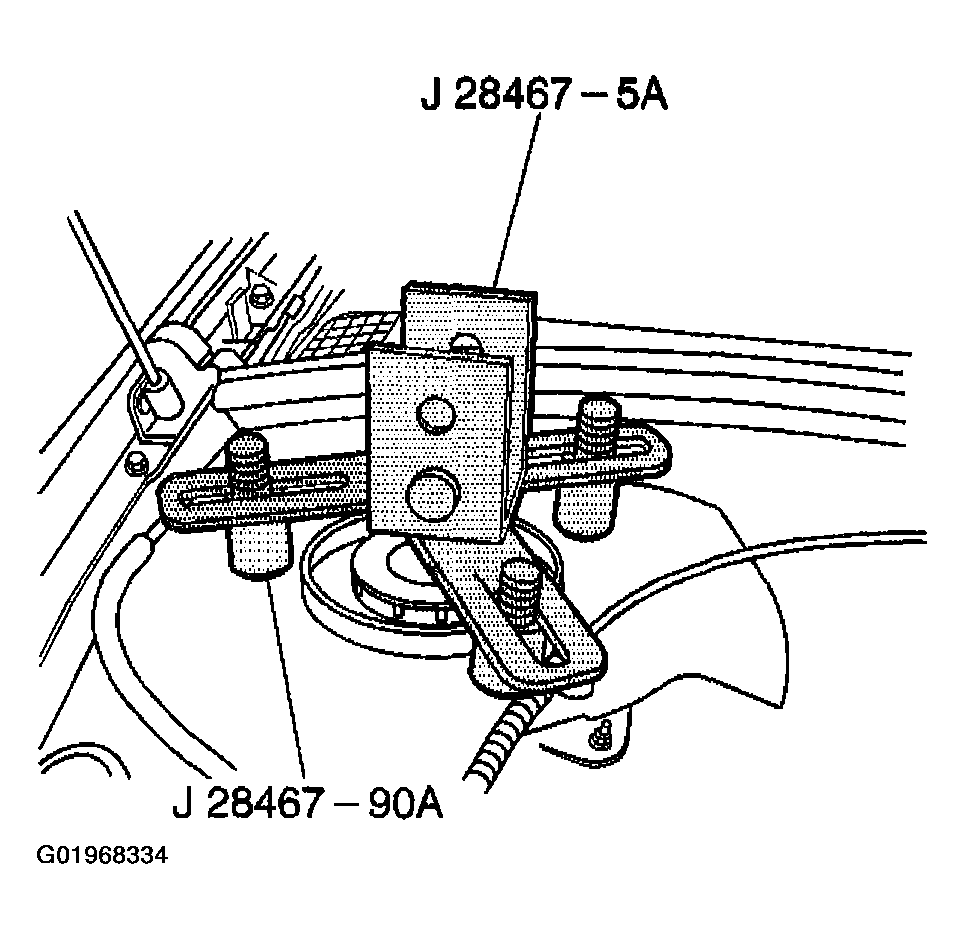

Install the strut tower support assemblies J 28467-5A over the J 28467-90A.

Fig 3: Installing Strut Tower Support Assemblies Over Engine Support Adapters
Courtesy of GENERAL MOTORS CORP.

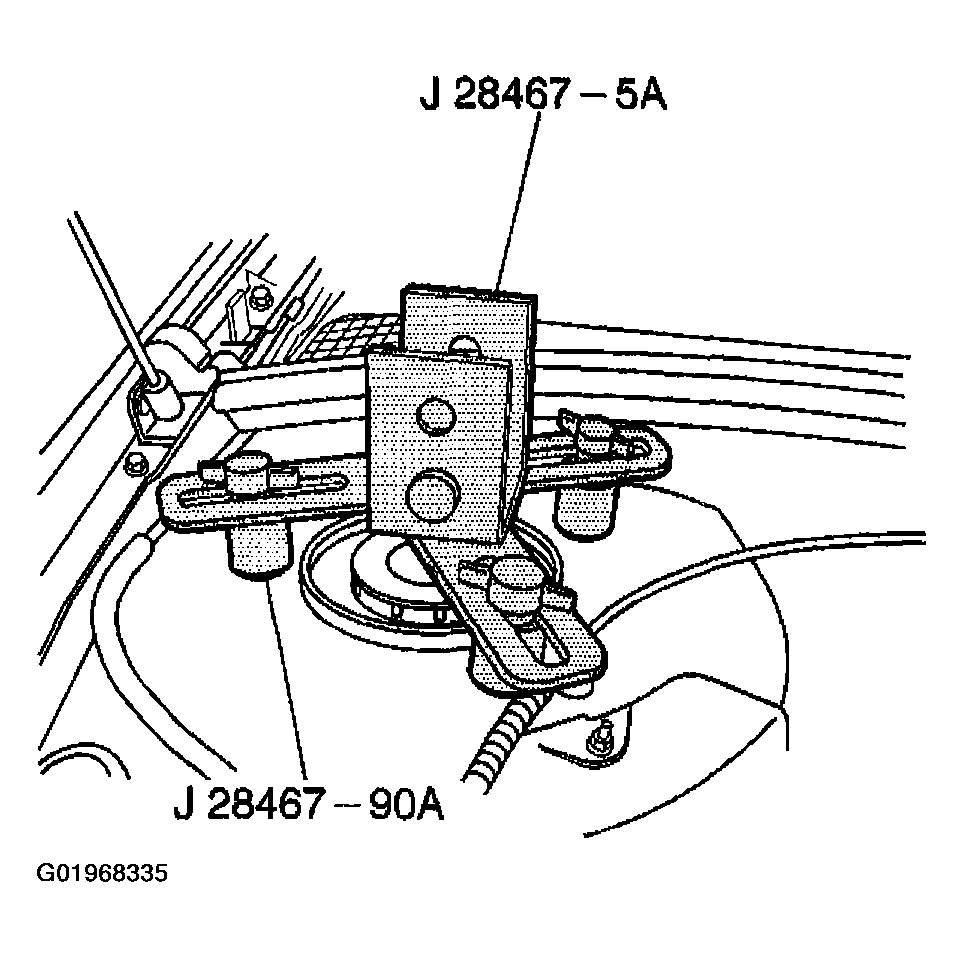

Install the wing nuts to the J 28467-90A.

Fig 4: Installing Wing Nuts To Engine Support Adapter
Courtesy of GENERAL MOTORS CORP.

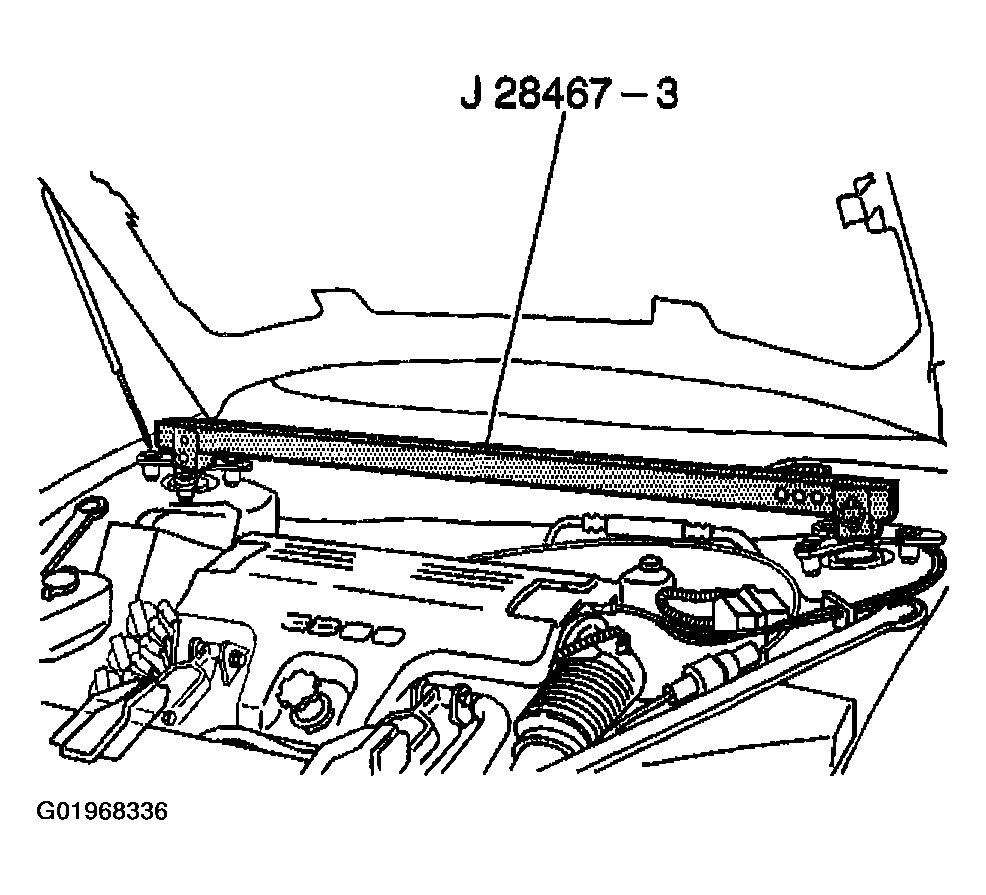

Install the strut tower tube J 28467-3 into the strut tower support assemblies J 28467-5A.

Fig 5: Installing Strut Tower Tube Into Strut Tower Support Assemblies
Courtesy of GENERAL MOTORS CORP.

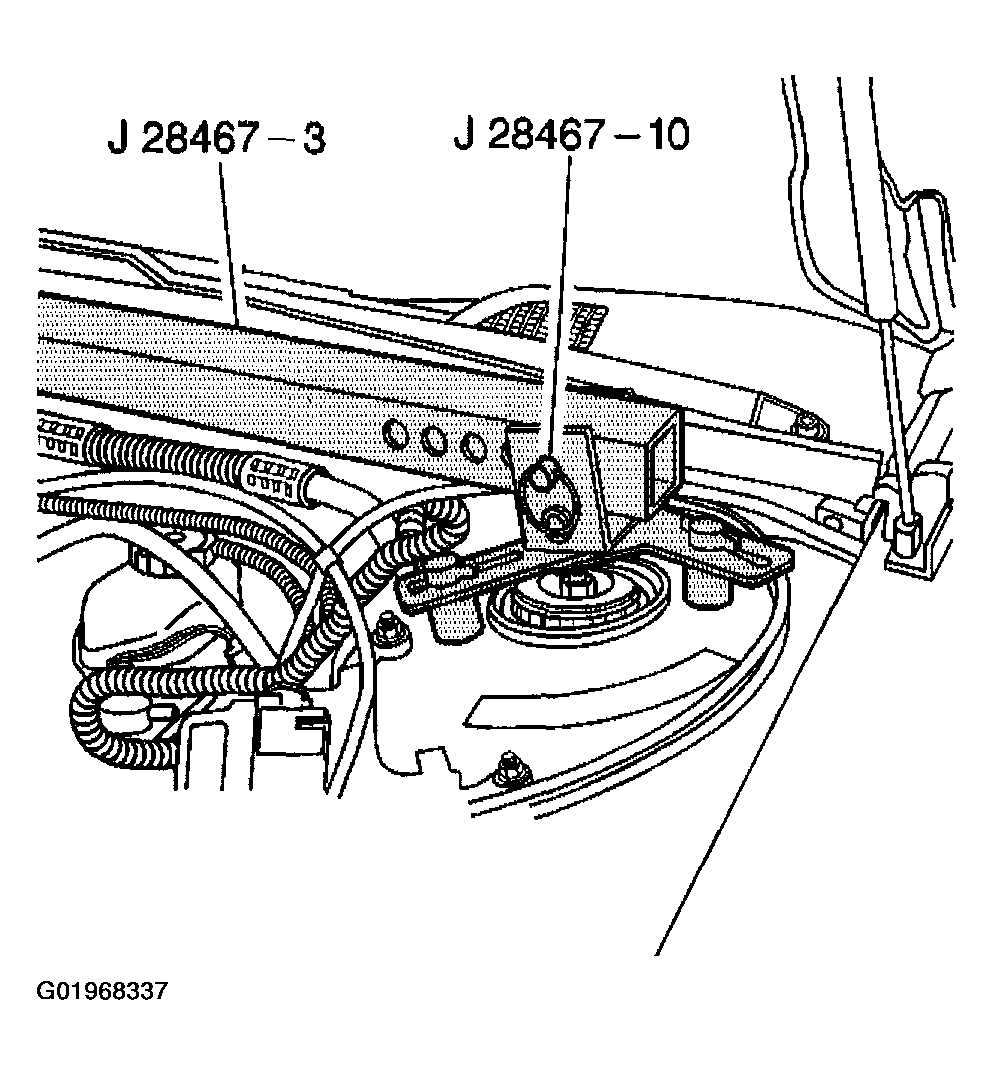

Install the 1/2 inch x 2.5 inch quick release pin J 28467-10 through the strut tower support assemblies J 28467-5A and the strut tower tube J 28467-3 on one side only.

Fig 6: Installing Quick Release Pin Through Strut Tower Support Assemblies & Strut Tower Tube
Courtesy of GENERAL MOTORS CORP.
Install the radiator shelf tube J 28467-2A on the top of the strut tower tube J 28467-3 on the driver side.

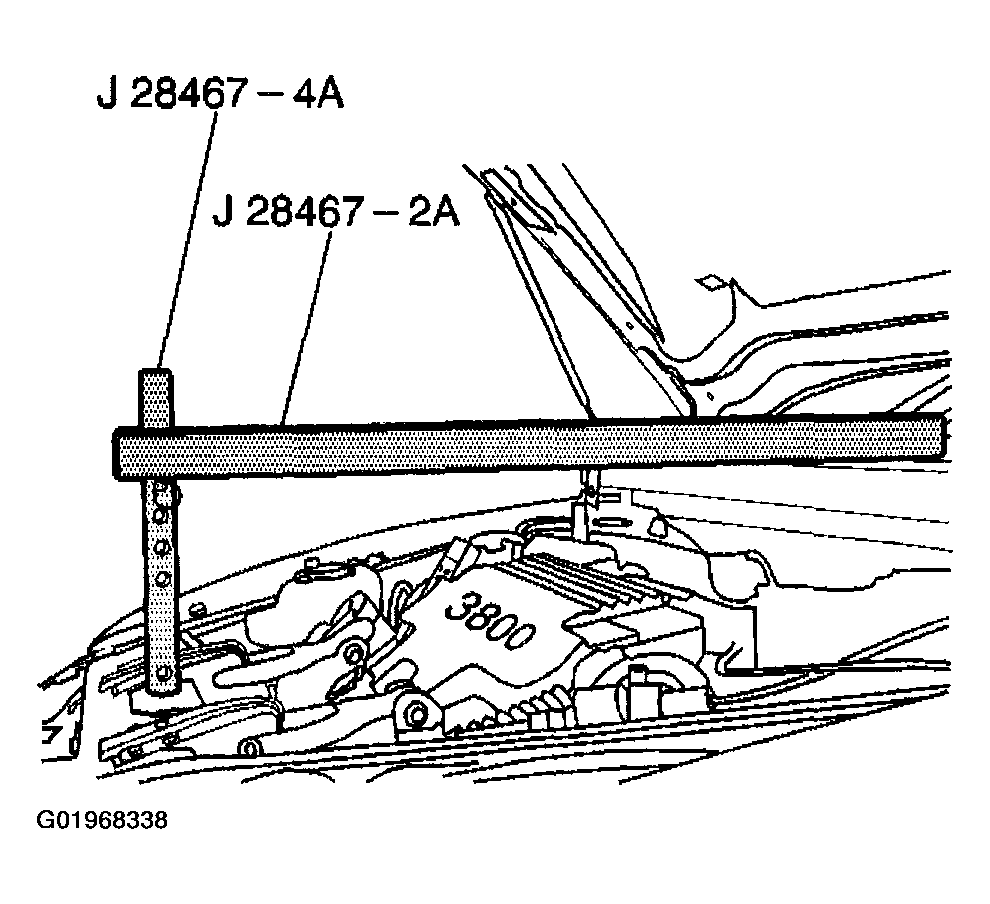

Install the round tube of the front support assembly J 28467-4A through the large hole in the radiator shelf tube J 28467-2A.

Fig 7: Installing Round Tube Of Front Support Assembly Through Large Hole In Radiator Shelf Tube
Courtesy of GENERAL MOTORS CORP.

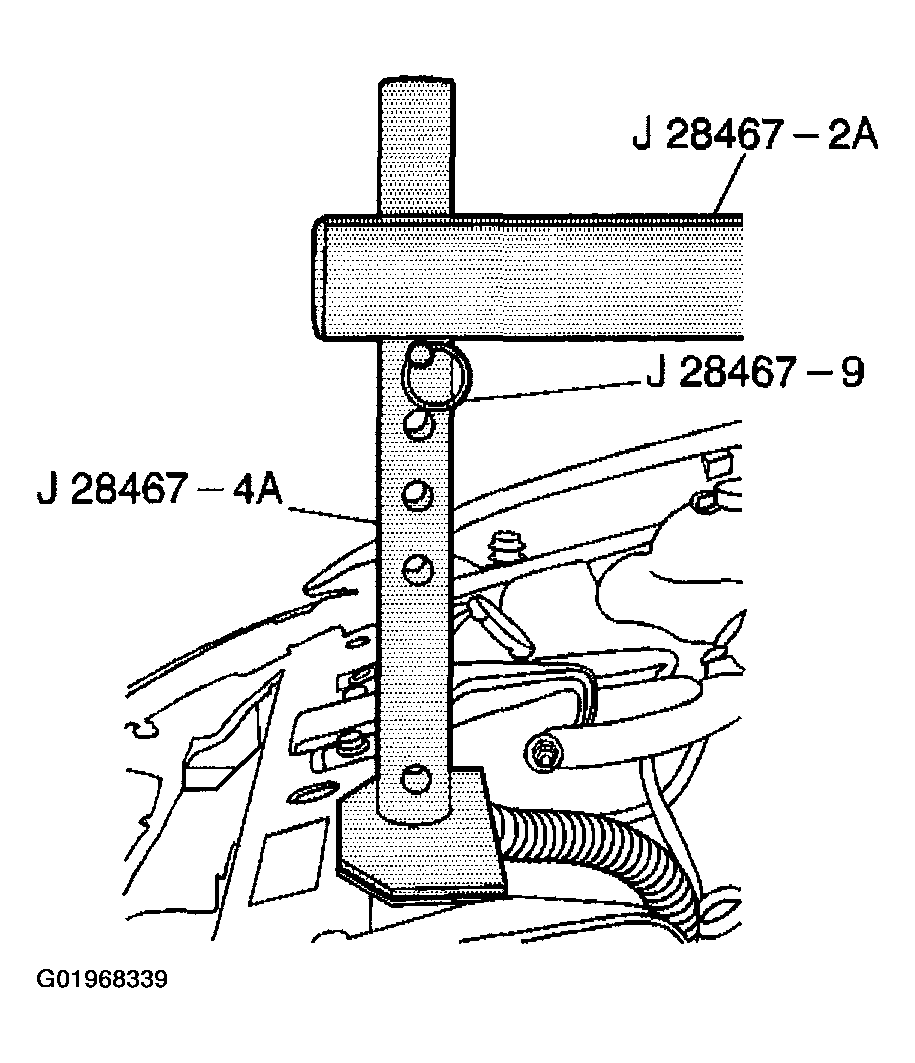

Install the 7/16 inch x 2.0 inch quick release pin J 28467-9 through the hole in the front support assembly J 28467-4A in order to level the radiator shelf tube J 28467-2A.

Fig 8: Installing Quick Release Pin Through Hole In Front Support Assembly
Courtesy of GENERAL MOTORS CORP.

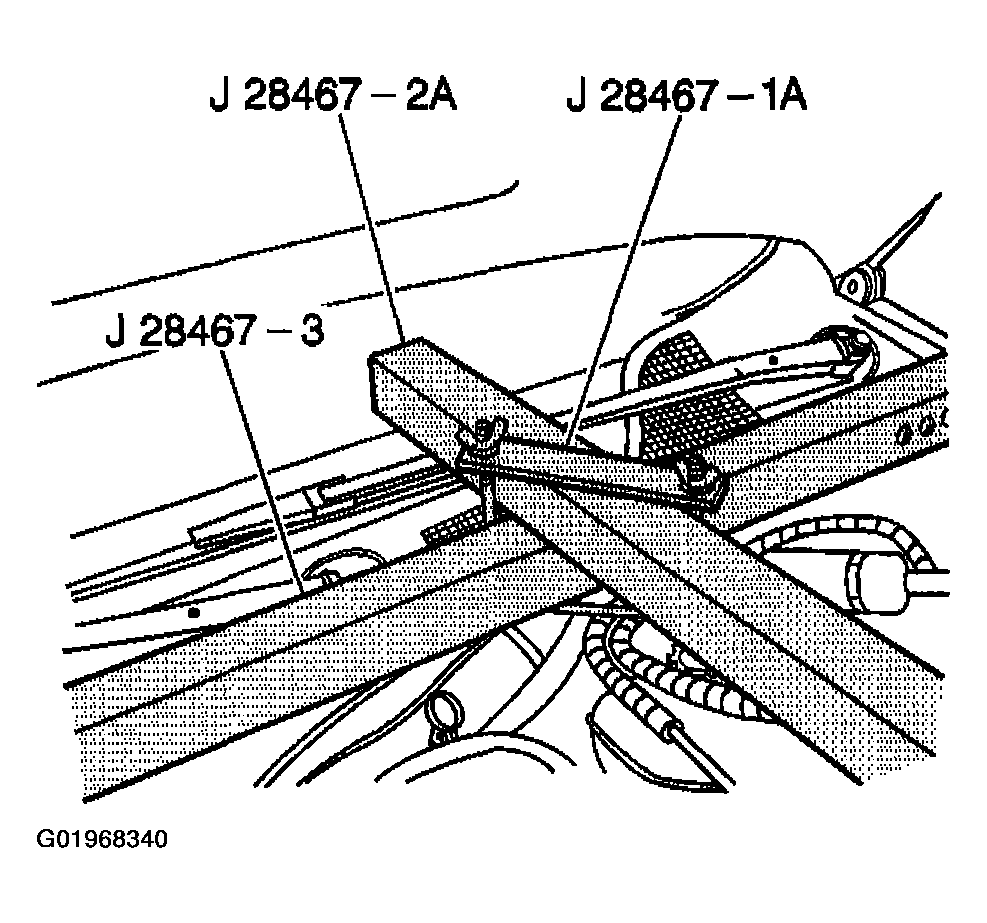

Install the cross bracket assembly J 28467-1A.
Install the lift hook J 28467-7A through the lift hook bracket J 28467-6A.
Install the 1/2 inch lift hook washer and lift hook wing nut J 28467-34 onto the lift hook J 28467-7A.

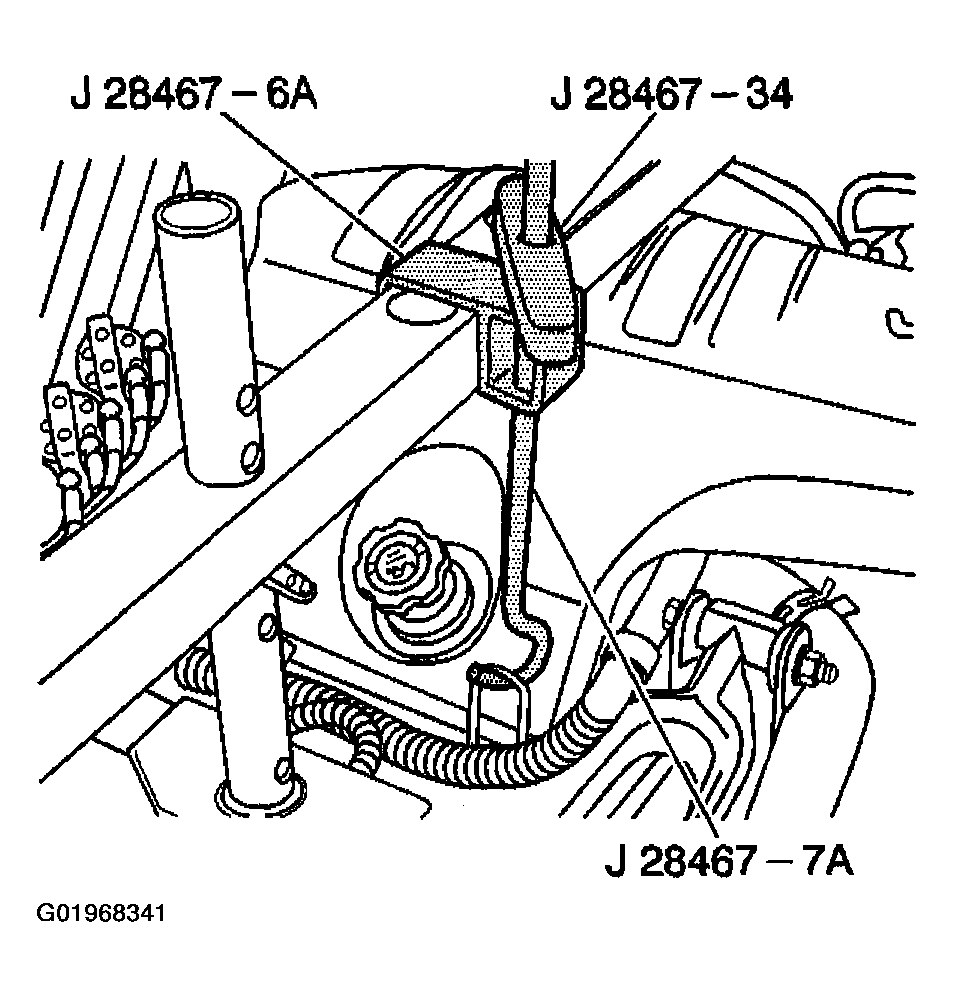

Install the assembled lift hook bracket J 28467-6A over the passenger side radiator shelf tube J 28467-2A.

Fig 9: Installing Assembled Lift Hook Bracket Over Passenger Side Radiator Shelf Tube
Courtesy of GENERAL MOTORS CORP.
Adjust the passenger side radiator shelf tube J 28467-2A and the assembled lift hook bracket J 28467-6A in order to align the hook with the left, rear of engine, lift hook bracket attached to the left exhaust manifold.
Install the lift hook J 28467-7A through the lift hook bracket J 28467-6A.
Install the 1/2 inch lift hook washer and lift hook wing nut J 28467-34 onto the lift hook J 28467-7A.
Install the assembled lift hook bracket J 28467-6A over the strut tower tube J 28467-3.

Fig 10: Installing Assembled Lift Hook Bracket Over Strut Tower Tube
Courtesy of GENERAL MOTORS CORP.

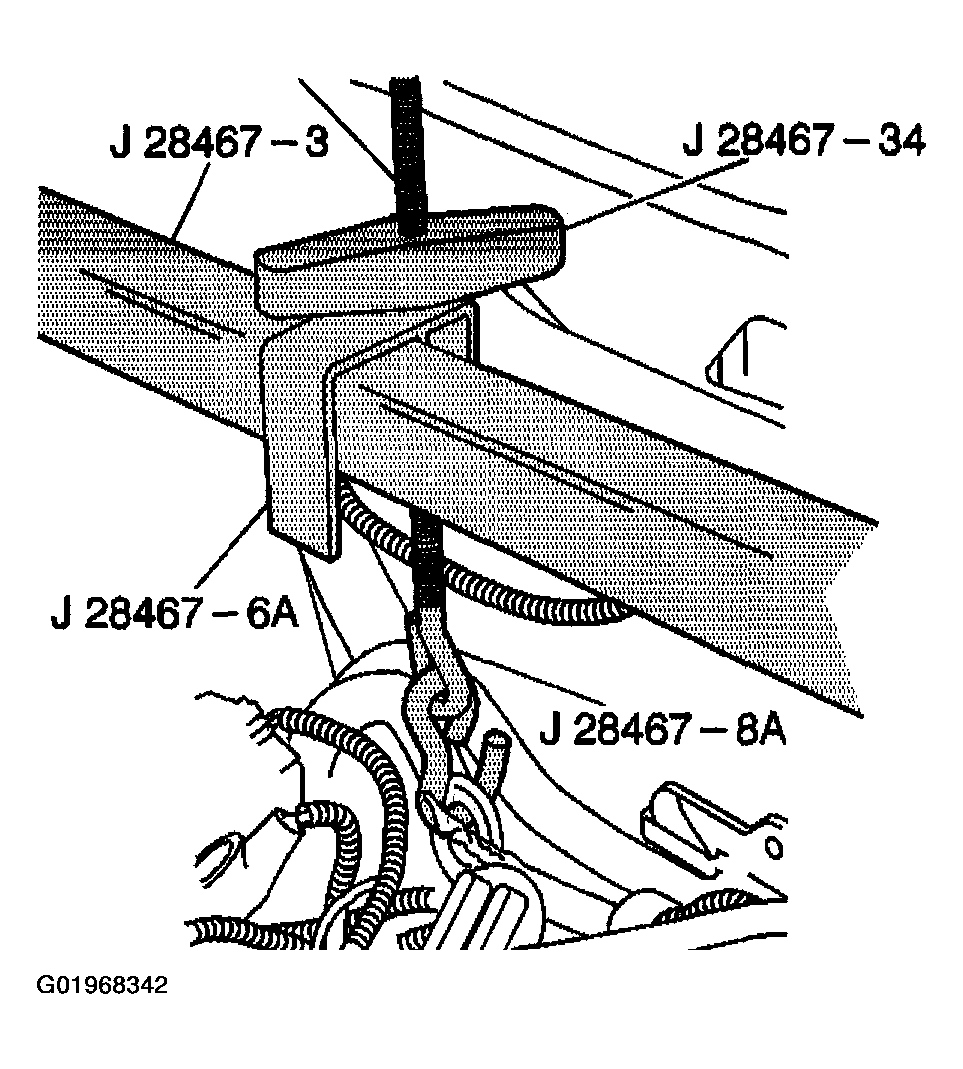

Adjust the assembled swivel lift hook bracket J 28467-8A in order to align the hook with the right, front of engine, lift hook bracket attached to the right exhaust manifold.

Fig 11: Adjusting Assembled Swivel Lift Hook Bracket
Courtesy of GENERAL MOTORS CORP.
Hand tighten the cross bracket assembly J 28467-1A wing nuts.

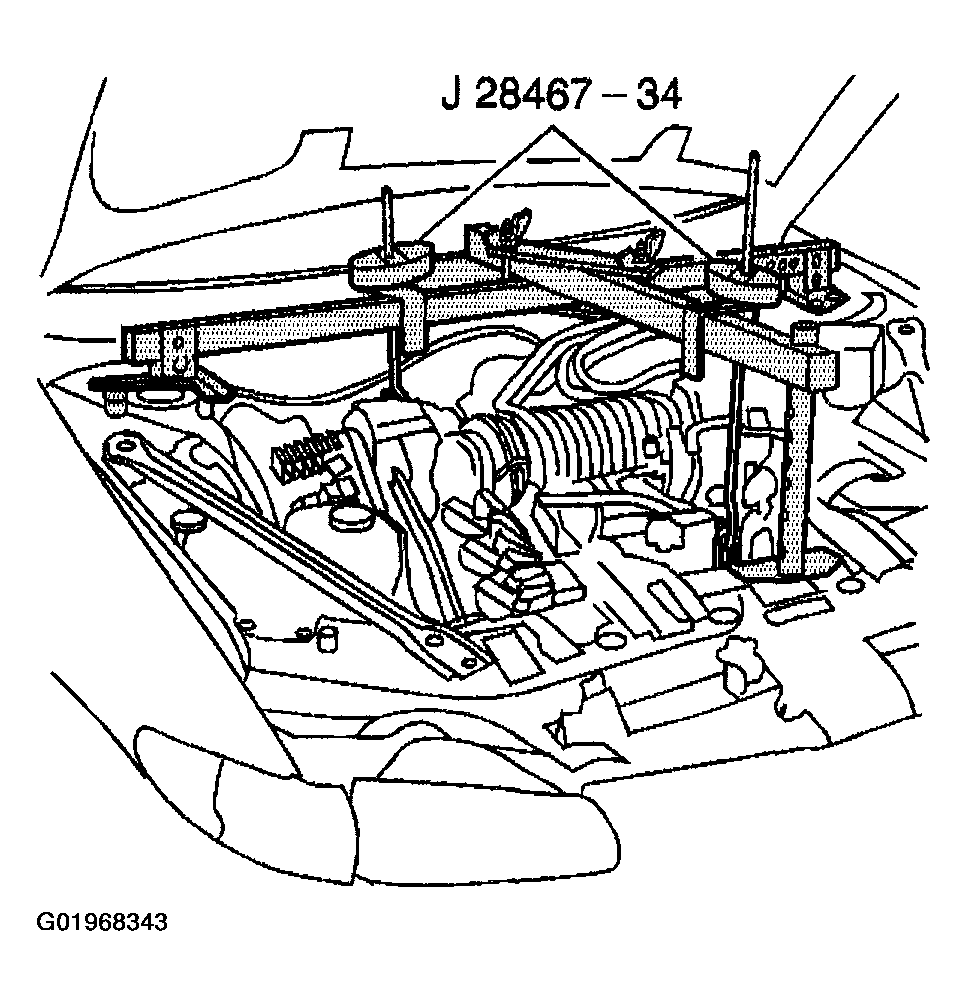

Hand tighten the lift hook wing nuts J 28467-34 securely to remove all slack from the engine support fixture assembly.

Fig 12: Tightening Lift Hook Wing Nuts
Courtesy of GENERAL MOTORS CORP.
