Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the engine oil pressure sensor electrical connector.
  3. Remove the engine oil pressure sensor.

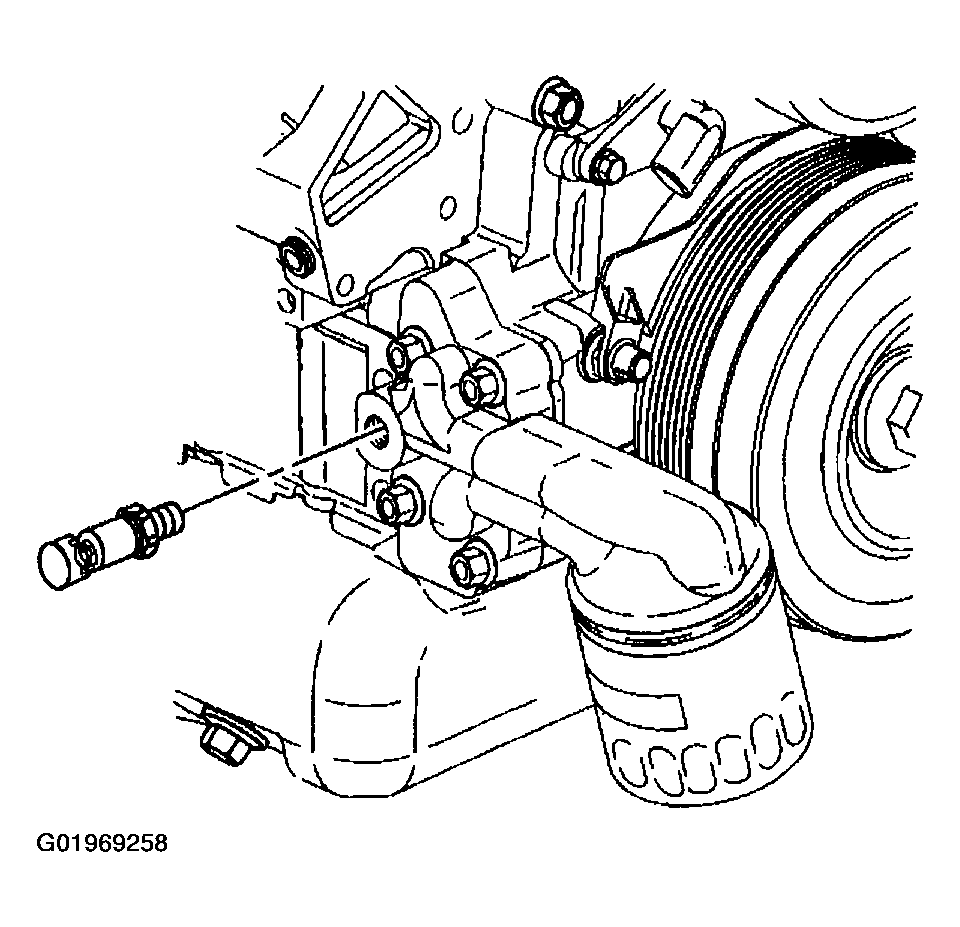

    Fig 1: Removing Engine Oil Pressure Sensor
    G01969258Courtesy of GENERAL MOTORS CORP.
