Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the engine.

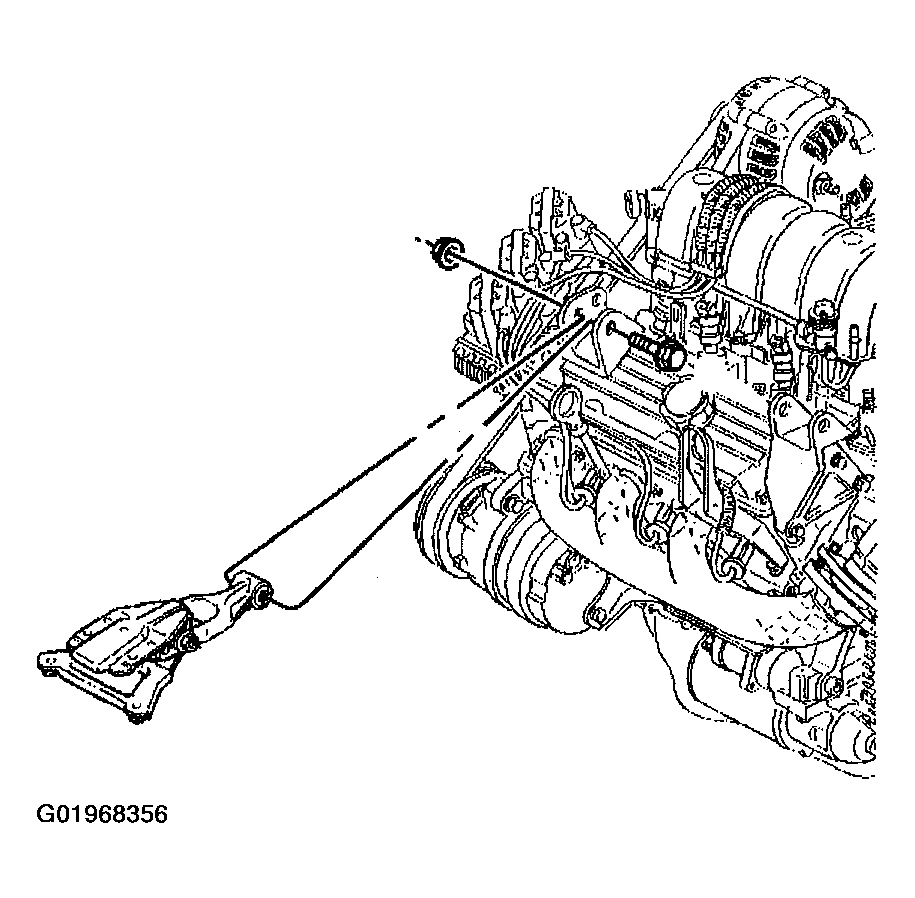

    Fig 1: Removing Right Engine Mount Strut Bolt & Nut
    G01968356Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the right engine mount strut at the right engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
    Fig 2: Removing Right Engine Mount Strut From Right Engine Mount Strut Bracket
    G01968357Courtesy of GENERAL MOTORS CORP.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking
