Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the left engine mount strut at the left engine mount strut bracket on the engine.

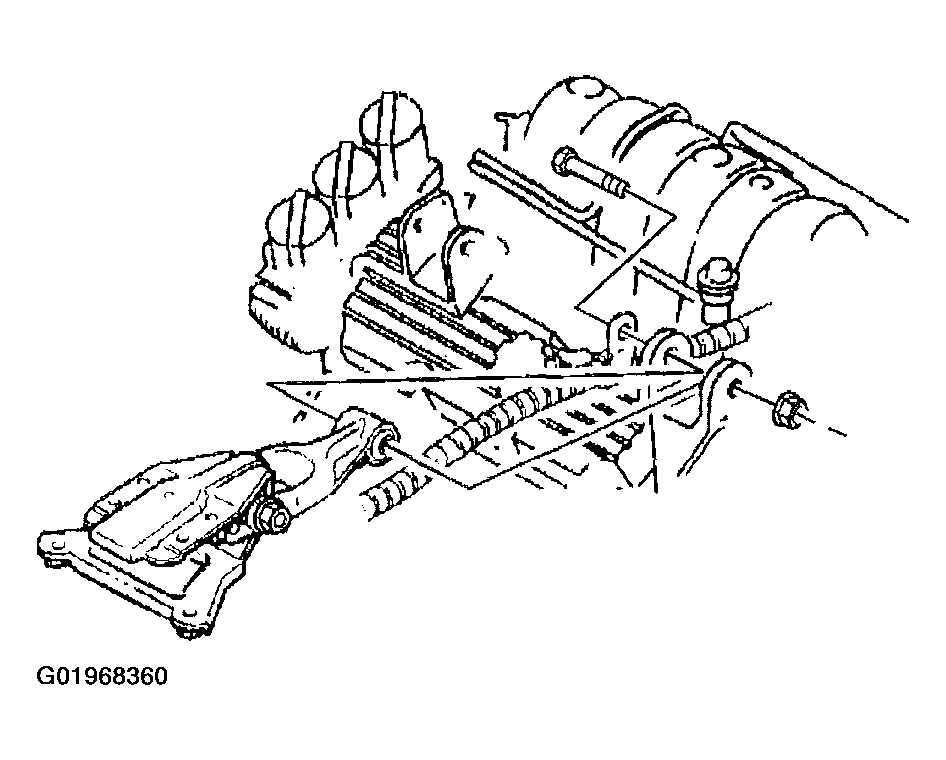

    Fig 1: Removing Left Engine Mount Strut Bolt & Nut
    G01968360Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the left engine mount strut at the left engine mount strut bracket on the upper radiator support.
    Fig 2: Removing Left Engine Mount Strut From Left Engine Mount Strut Bracket
    G01968361Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking
