Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut(s) from the engine mount strut bracket(s) at the upper radiator support. Refer to ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .
    Fig 1: Removing Engine Mount Strut From Engine Mount Strut Bracket
    G01968365Courtesy of GENERAL MOTORS CORP.
  2. Remove the four bolts from the engine mount strut bracket to the upper radiator support.

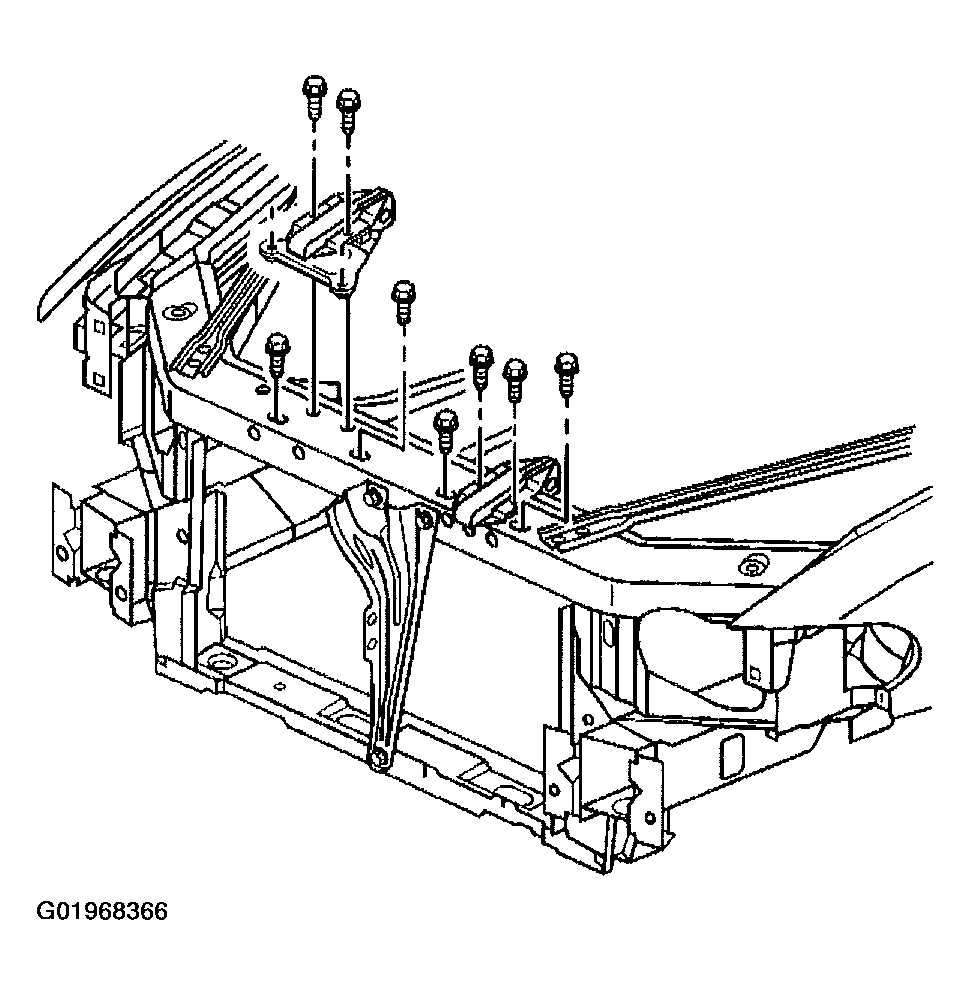

    Fig 2: Removing Bolts From Engine Mount Strut Bracket To Upper Radiator Support
    G01968366Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount strut bracket from the upper radiator support.
