Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Remove the ignition coil. Refer to IGNITION COILS in Removal & Installation.

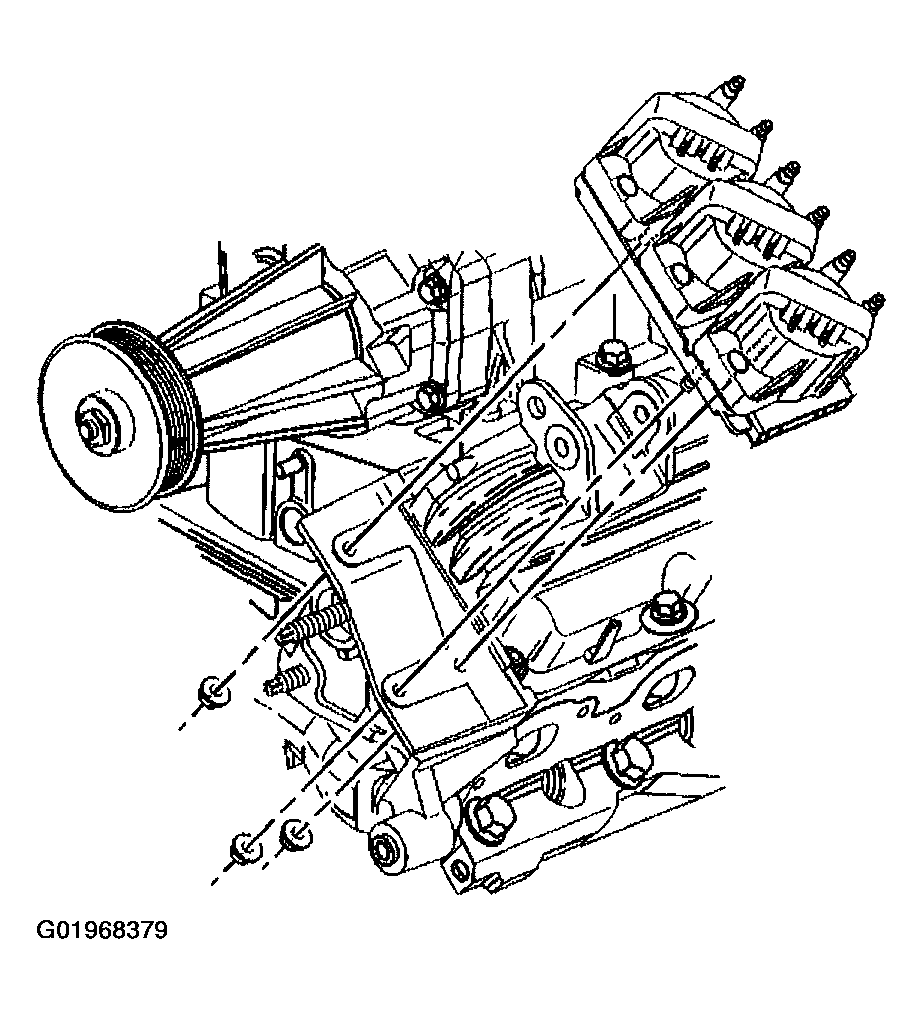

    Fig 1: Removing Ignition Coil
    G01968379Courtesy of GENERAL MOTORS CORP.
  3. Remove the supercharger drive belt. Refer to DRIVE BELT REPLACEMENT (L36)  or DRIVE BELT REPLACEMENT (L67)  .
  4. Remove the upper supercharger drive belt idler pulley. Refer to DRIVE BELT IDLER PULLEY REPLACEMENT - UPPER  .

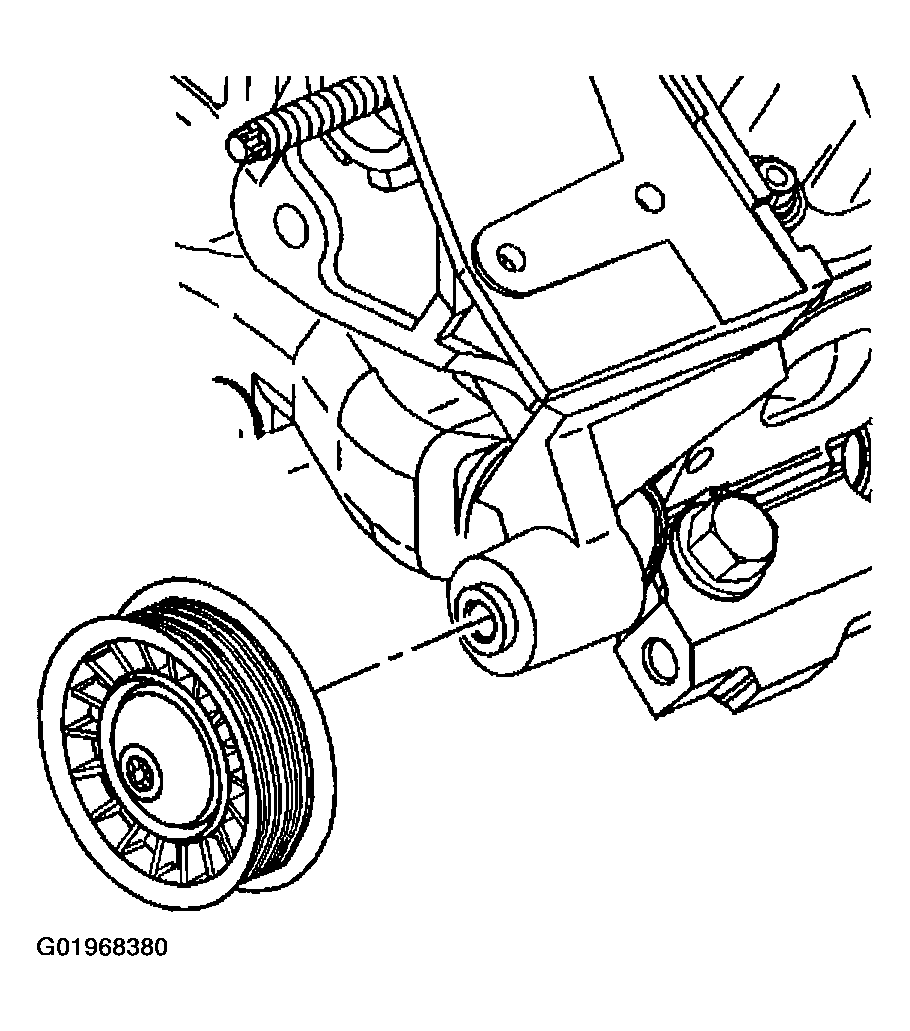

    Fig 2: Removing Upper Supercharger Drive Belt Idler Pulley
    G01968380Courtesy of GENERAL MOTORS CORP.
  5. Remove the supercharger drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT - SUPERCHARGER  .

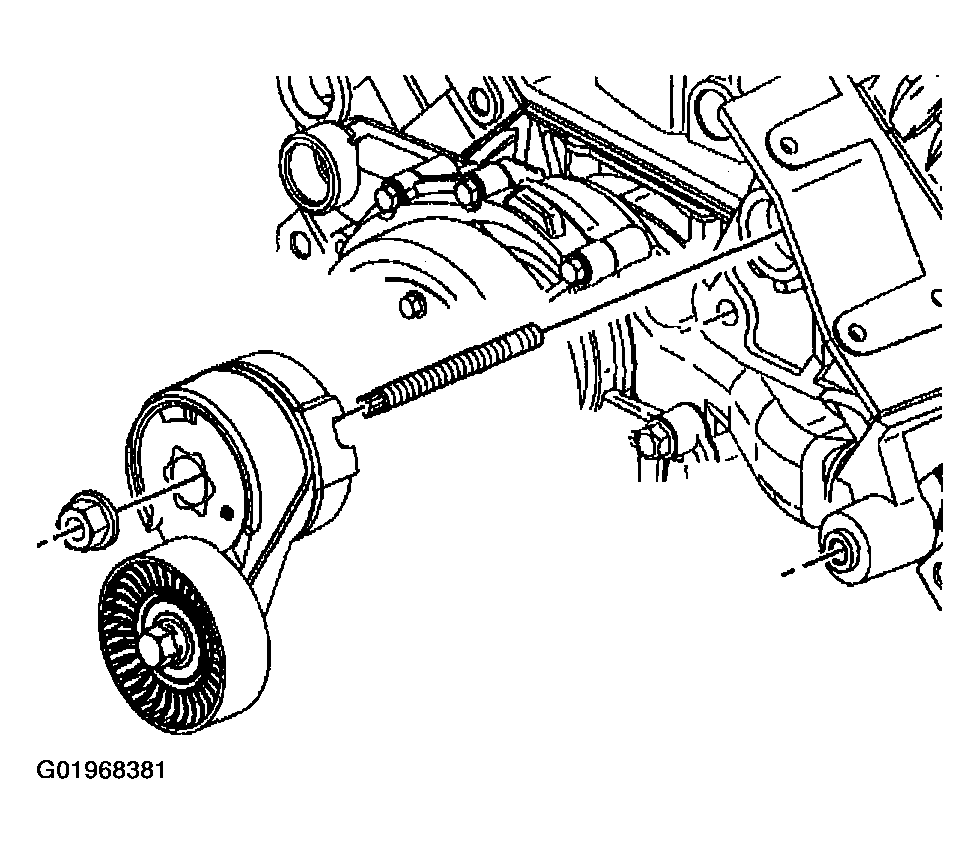

    Fig 3: Removing Supercharger Drive Belt Tensioner
    G01968381Courtesy of GENERAL MOTORS CORP.
  6. Remove the right engine mount strut at the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  and ENGINE MOUNT STRUT REPLACEMENT - RIGHT  .

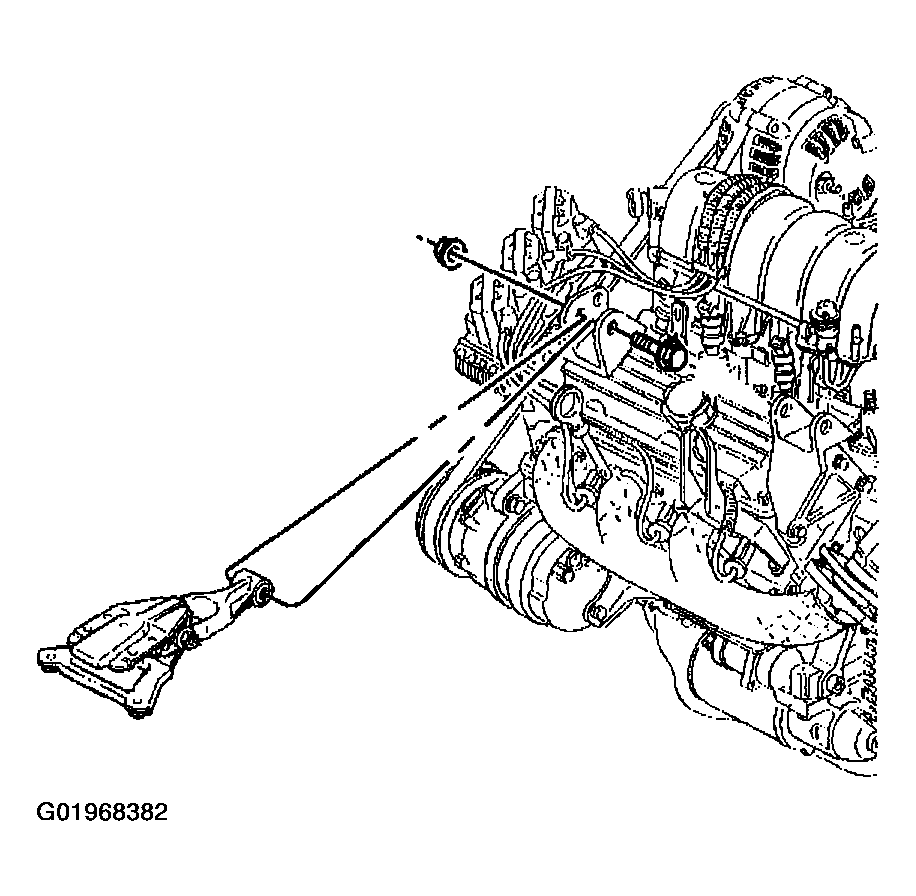

    Fig 4: Removing Right Engine Mount Strut At Right Engine Mount Strut Bracket
    G01968382Courtesy of GENERAL MOTORS CORP.
  7. Remove the right engine mount strut bracket nuts and stud.

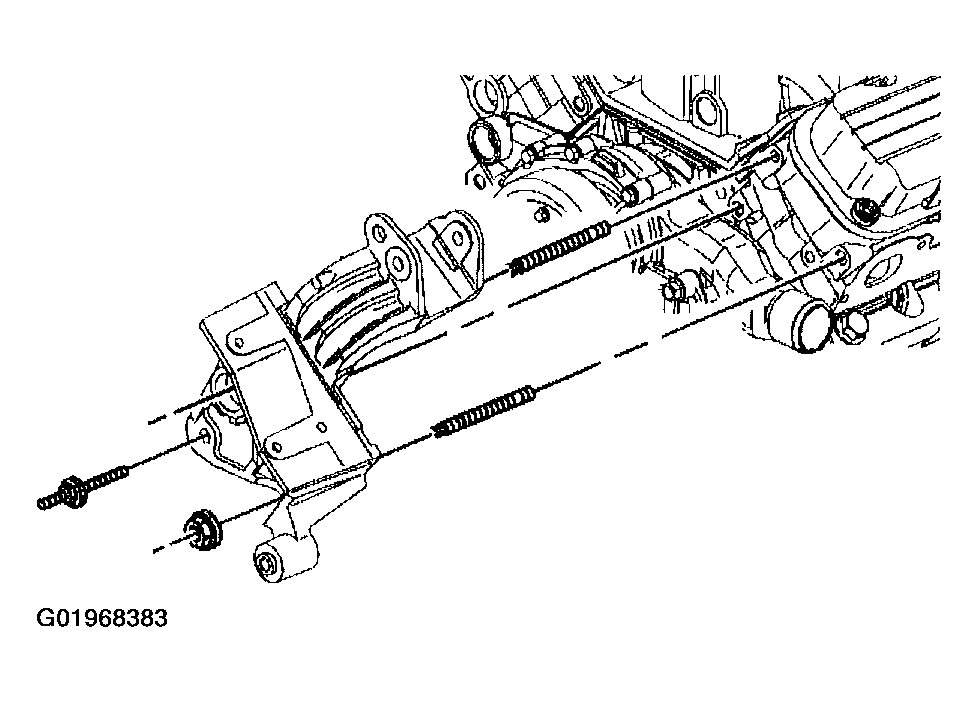

    Fig 5: Removing Right Engine Mount Strut Bracket, Studs & Nuts
    G01968383Courtesy of GENERAL MOTORS CORP.
  8. Remove the right engine mount strut bracket from the cylinder head.
