Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Install the upper engine mount strut bracket.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the upper engine mount strut bracket bolts.
Tighten

Tighten the upper engine mount strut bracket bolts to 50 N.m (37 lb ft).

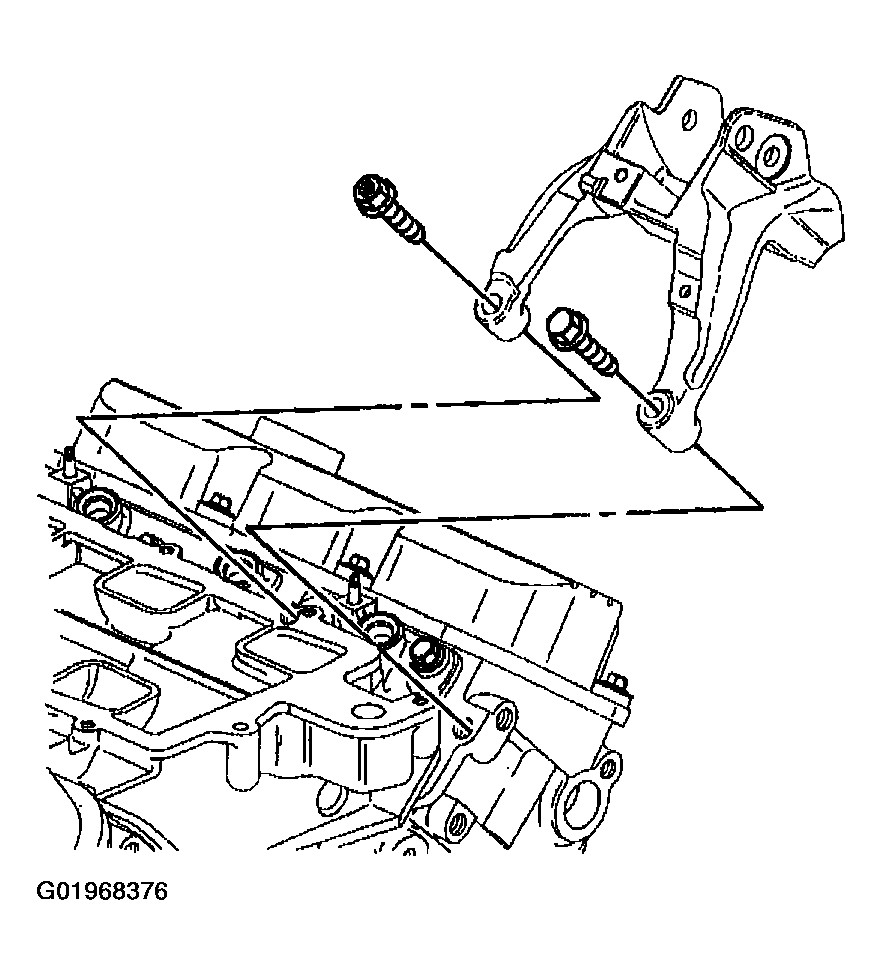

Fig 1: Installing Upper Engine Mount Strut Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the fuel rail assembly. Refer to FUEL RAIL & INJECTORS in Removal & Installation.
Install the EVAP emissions canister purge valve. Refer to EVAP CANISTER PURGE VALVE in Removal & Installation.
Install the lower engine mount strut bracket, bolts and nut.
- Tighten the lower engine mount strut bracket nut.
  Tighten

  Tighten the lower engine mount strut bracket nut to 30 N.m (22 lb ft).
- Tighten the lower engine mount strut bracket bolts.
  Tighten

  Tighten the lower engine mount strut bracket bolts to 50 N.m (37 lb ft).

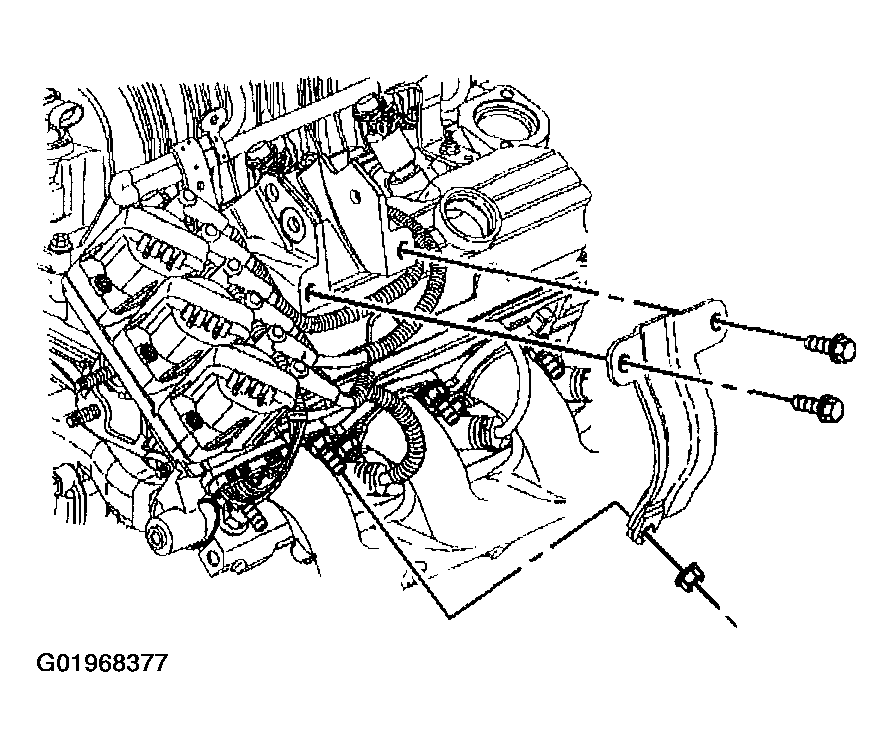

  Fig 2: Installing Lower Engine Mount Strut Bracket, Bolts & Nut
  Courtesy of GENERAL MOTORS CORP.
Install the right engine mount strut to the upper engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - RIGHT .

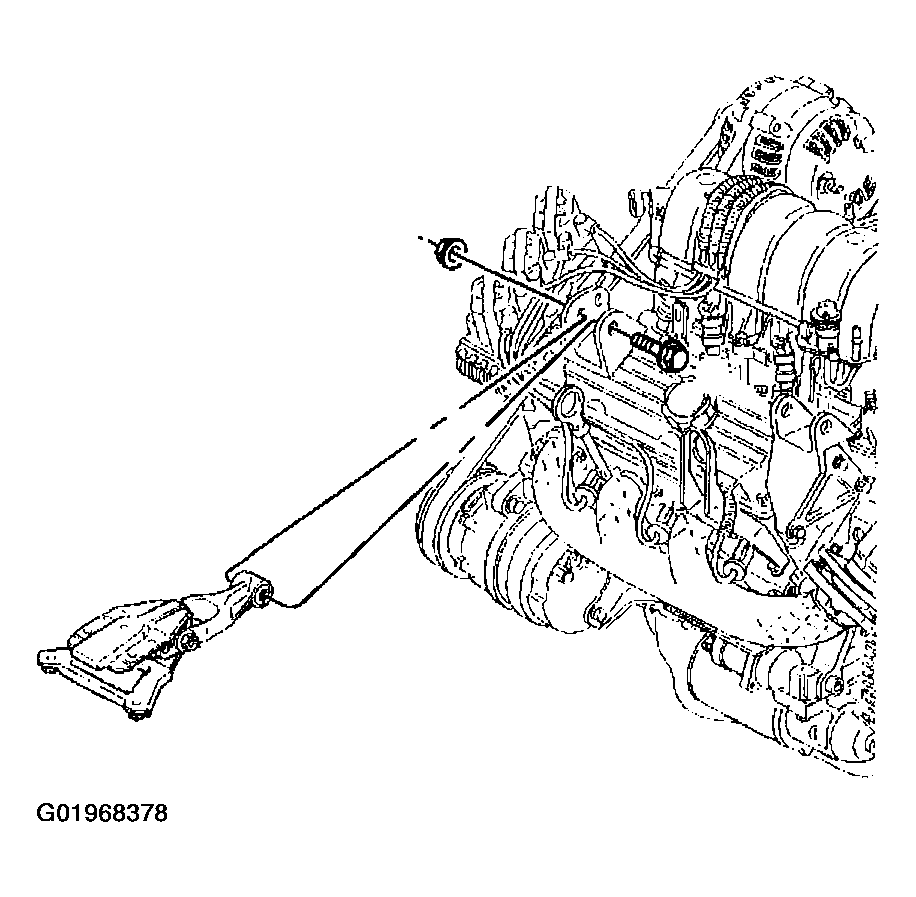

Fig 3: Installing Right Engine Mount Strut To Upper Engine Mount Strut Bracket
Courtesy of GENERAL MOTORS CORP.
Install the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L36) or FUEL INJECTOR SIGHT SHIELD REPLACEMENT (L67) .
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
