Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Remove the lower engine mount strut bracket bolts.
  3. Remove the lower engine mount bracket nut.
  4. Remove the lower engine mount bracket.

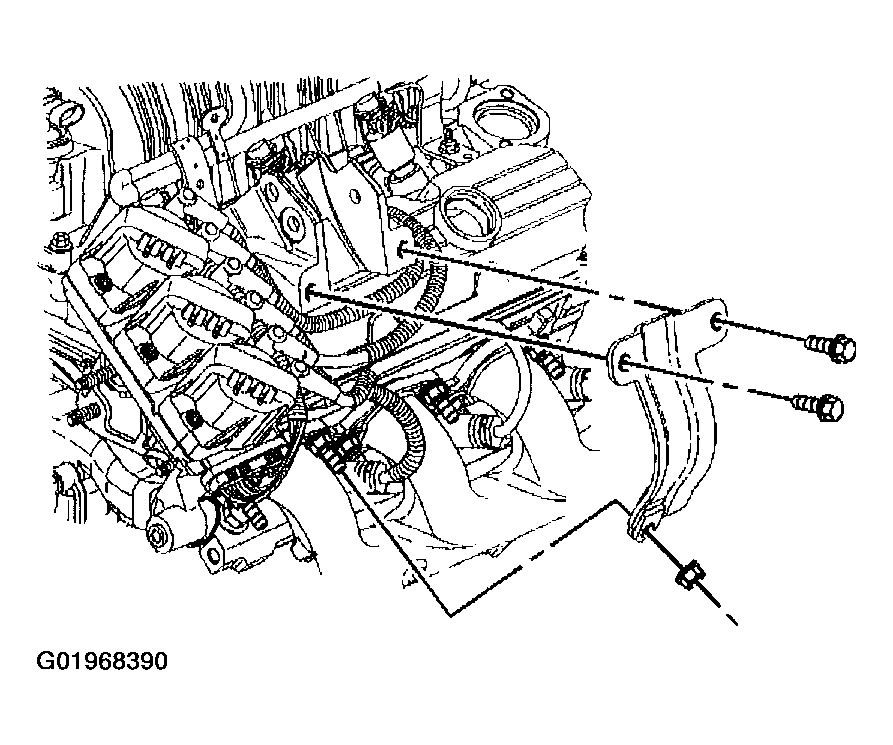

    Fig 1: Removing Lower Engine Mount Bracket, Bolts & Nut
    G01968390Courtesy of GENERAL MOTORS CORP.
