Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower engine mount bracket to the exhaust manifold stud and the upper engine mount strut bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

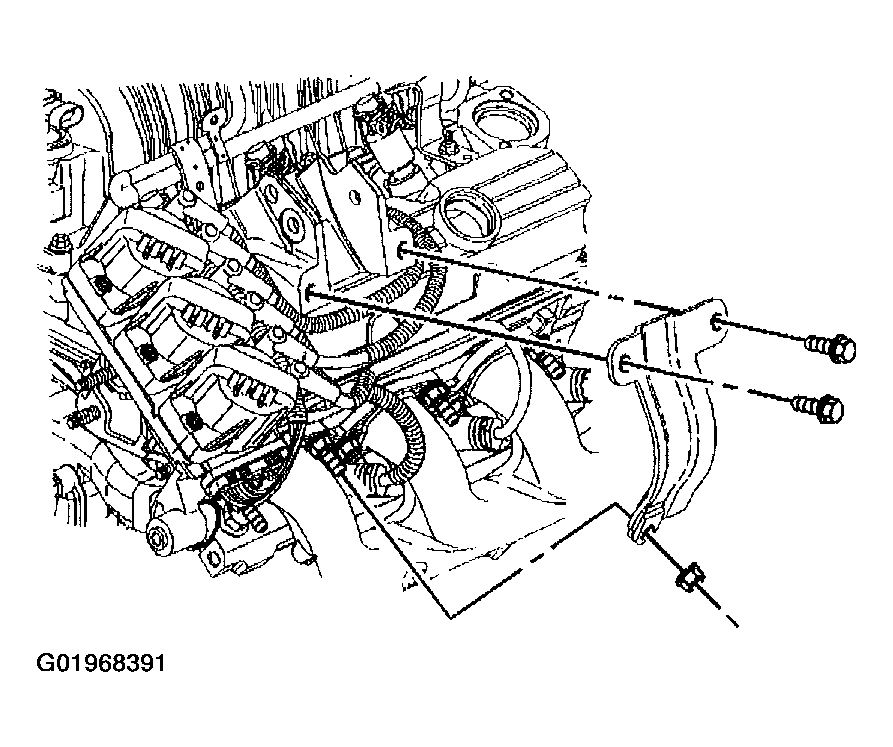

    Fig 1: Installing Lower Engine Mount Bracket, Bolts & Nut
    G01968391Courtesy of GENERAL MOTORS CORP.
  2. Install the lower engine mount strut bracket bolts.

    Tighten

    Tighten the lower engine mount bracket bolts to 50 N.m (37 lb ft).

  3. Install the lower engine mount strut bracket nut.

    Tighten

    Tighten the lower engine mount bracket nut to 30 N.m (22 lb ft).

  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
