Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
  2. Remove the engine coolant temperature (ECT) sensor. Refer to ENGINE COOLANT TEMPERATURE SENSOR in Removal & Installation.
  3. Remove the left engine mount strut from the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT - LEFT  .

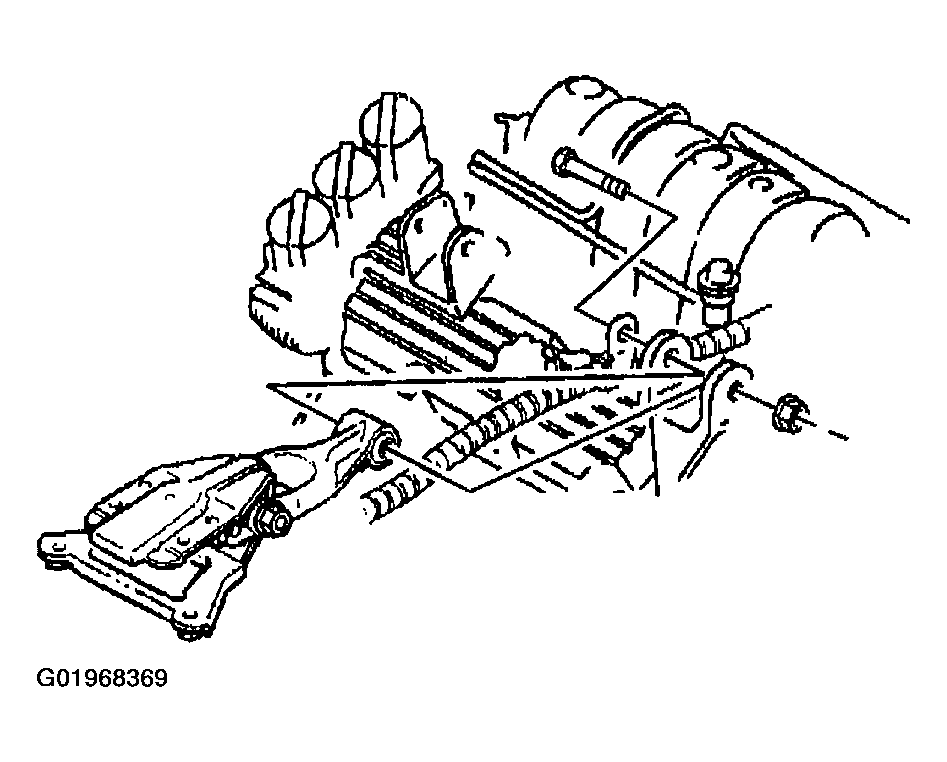

    Fig 1: Removing Left Engine Mount Strut From Left Engine Mount Strut Bracket
    G01968369Courtesy of GENERAL MOTORS CORP.
  4. Remove the left engine mount strut bracket bolts.

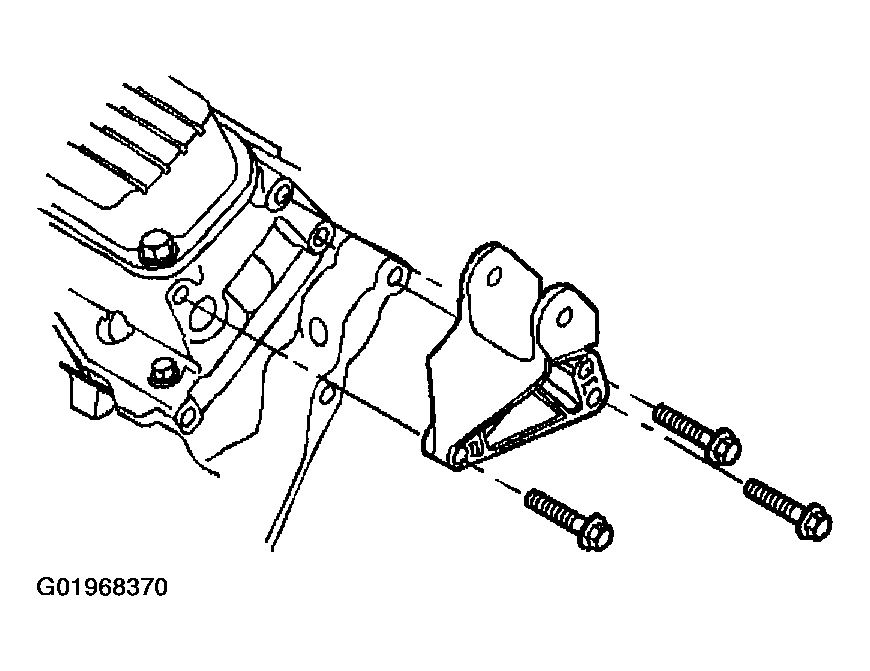

    Fig 2: Removing Left Engine Mount Strut Bracket & Bolts
    G01968370Courtesy of GENERAL MOTORS CORP.
  5. Remove the left engine mount strut bracket from the cylinder head.
