Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. Refer to TRANSAXLE (2003) in Removal & Installation - A/T.
  2. Use the J 37096 to secure the flywheel in order to prevent the crankshaft from rotating.

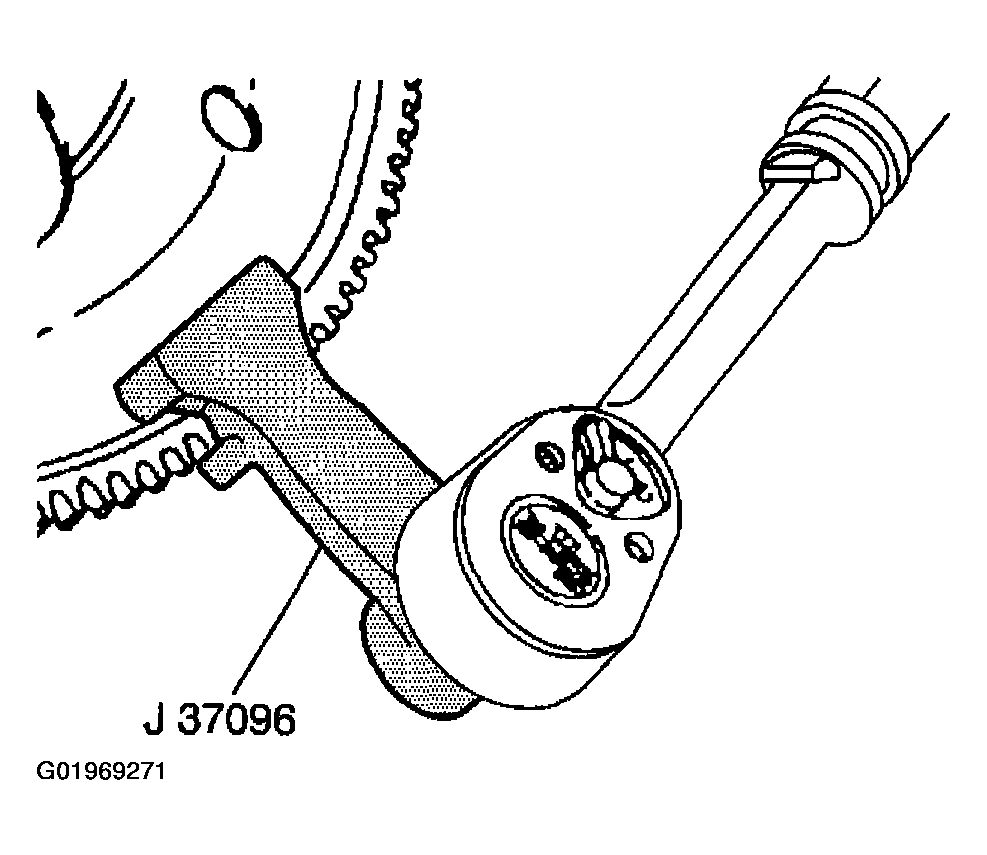

    Fig 1: Securing Flywheel Using J 37096
    G01969271Courtesy of GENERAL MOTORS CORP.
  3. Loosen the 8 engine flywheel bolts.
  4. Remove 7 of the 8 engine flywheel bolts, leaving one bolt at the top of the crankshaft rotation.

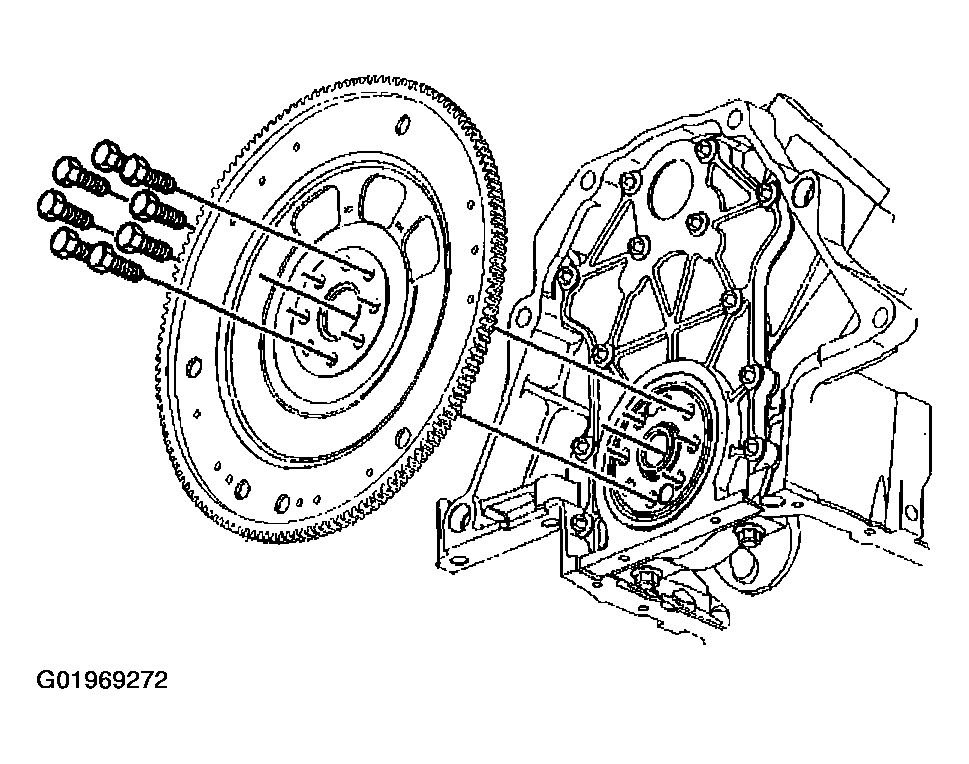

    Fig 2: Removing Engine Flywheel & Bolts
    G01969272Courtesy of GENERAL MOTORS CORP.
  5. Firmly grasp the engine flywheel and remove the remaining bolt. Do not drop the engine flywheel when removing the final bolt.
  6. Remove the engine flywheel.
