Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

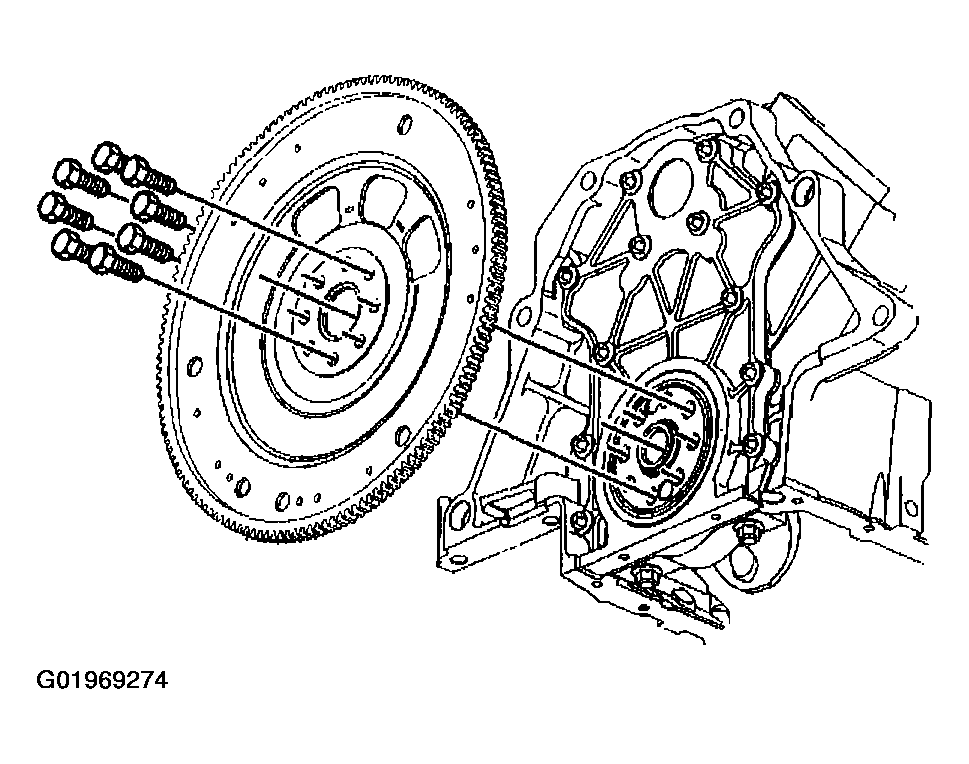

Install the engine flywheel.
Use the J 37096 to secure the flywheel in order to prevent the crankshaft from rotating.

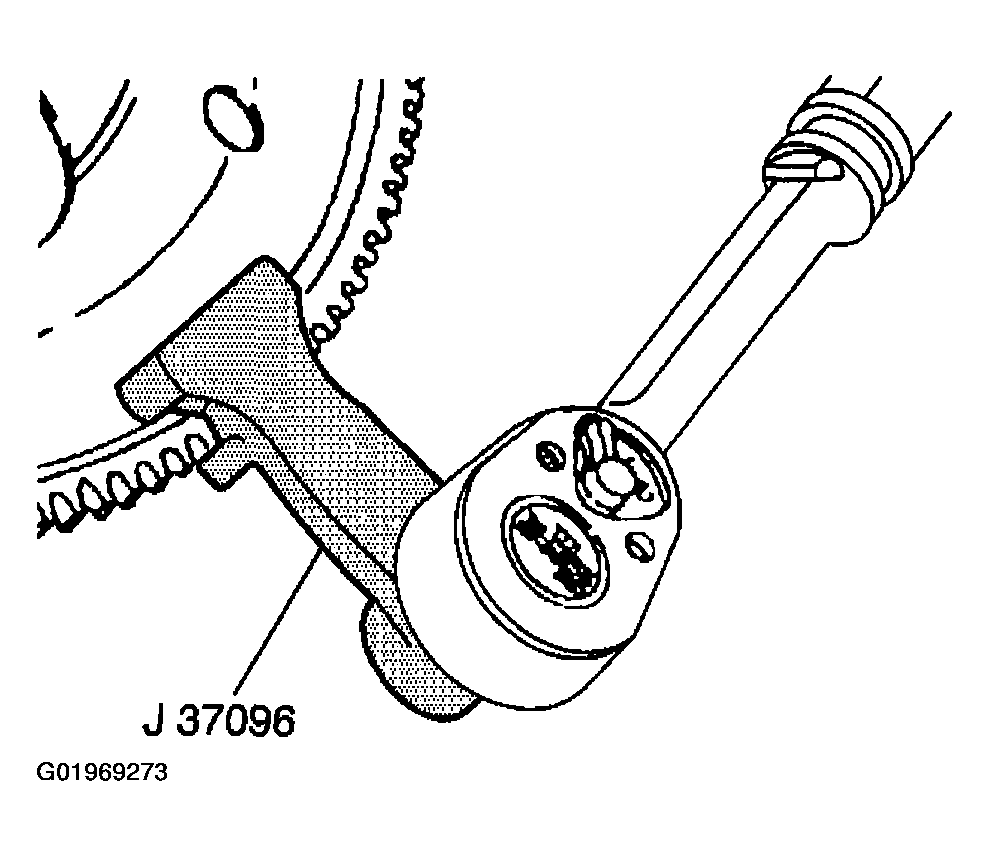

Fig 1: Securing Flywheel Using J 37096
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the new engine flywheel bolts.
Tighten
1. 3.1. Tighten the engine flywheel bolts to 15 N-m (11 lb ft).
2. 3.2. Use the J 36660-A to rotate the engine flywheel bolts an additional 50 degrees.
Fig 2: Installing Engine Flywheel Bolts
Courtesy of GENERAL MOTORS CORP.
Measure the engine flywheel runout:
1. 4.1. Install a dial indicator on the engine block and check the engine flywheel runout at 3 attaching bosses. Refer to ENGINE MECHANICAL SPECIFICATIONS .
2. 4.2. If the condition cannot be corrected, replace the engine flywheel.
Install the transaxle. Refer to TRANSAXLE (2003) in Removal & Installation - A/T.
