Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the supercharger drive belt. Refer to DRIVE BELT REPLACEMENT (L36)  or DRIVE BELT REPLACEMENT (L67)  .

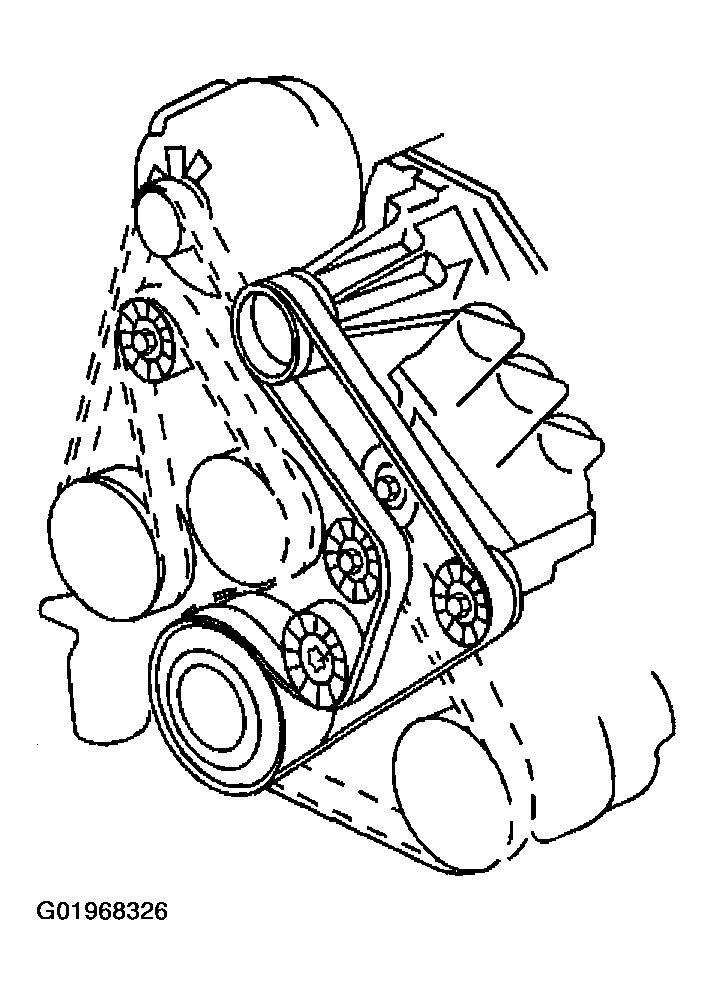

    Fig 1: View Of Supercharger Drive Belt
    G01968326Courtesy of GENERAL MOTORS CORP.
  2. Remove the drive belt idler pulley bolt.
  3. Remove the drive belt idler pulley.

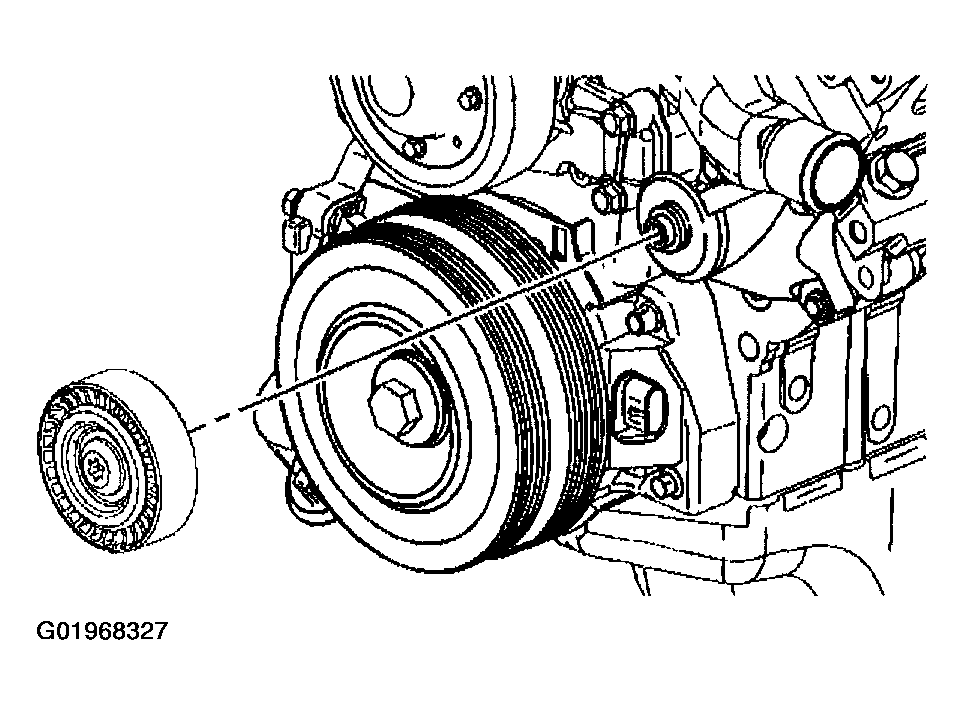

    Fig 2: Removing Drive Belt Idler Pulley
    G01968327Courtesy of GENERAL MOTORS CORP.
  4. Remove the idler pulley bracket bolts.

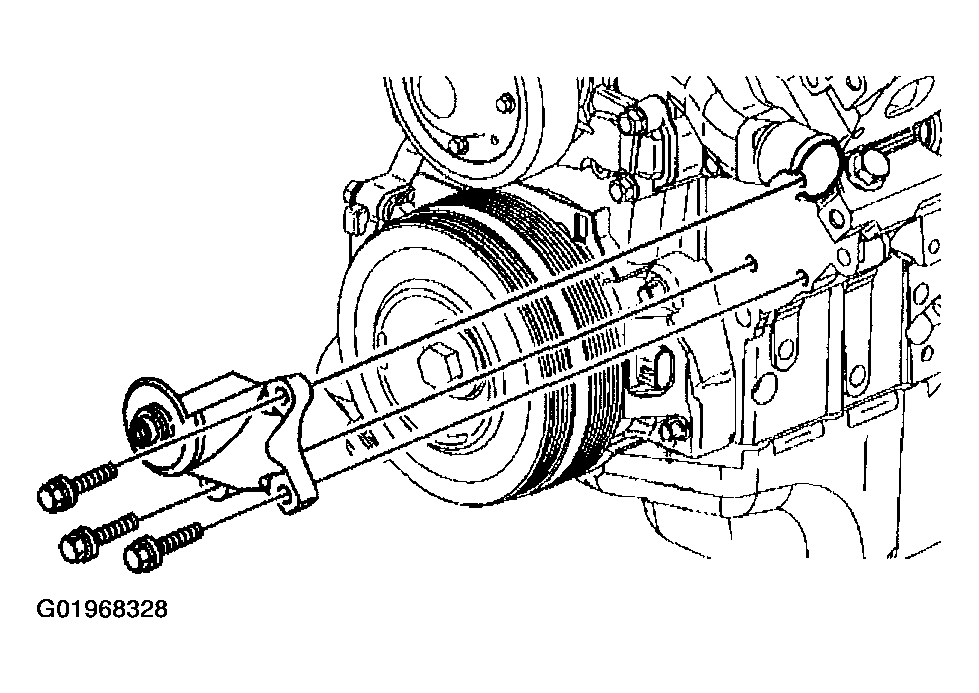

    Fig 3: Removing Bolts And Idler Pulley Bracket & Bolts
    G01968328Courtesy of GENERAL MOTORS CORP.
  5. Remove the idler pulley bracket.
