Valve Rocker Arm and Push Rod Installation

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 36660-A Torque Angle Meter. See Special Tools and Equipment .

Install the pushrod guide plate.
Install the push rods.
Install the valve rocker arm bearing retainer.
Coat the valve stem tip and pushrod tip with prelube GM P/N 1052367, (Canadian P/N 992869) or the equivalent.
Install the valve rocker arms.
Apply GM P/N 12345493, (Canadian P/N 10953488) threadlocker or the equivalent to the valve rocker arm bolt threads.

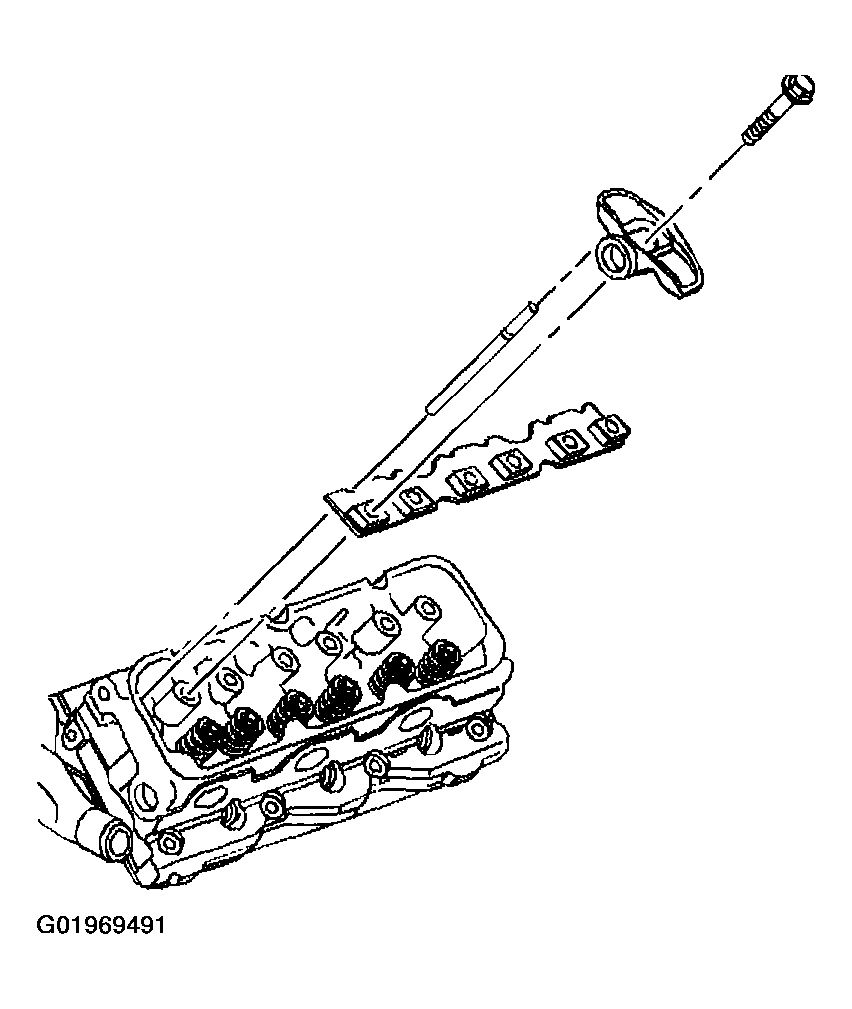

Fig 1: Installing Push Rod & Valve Rocker Arm
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the valve rocker arm bolts.
Tighten

Tighten the valve rocker arm bolts to 15 N.m (11 lb ft) + 90 degrees using J 36660-A .
