Valve Rocker Arm Cover Installation - Right

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover.
  2. Apply GM P/N 12345382, (Canadian P/N 10953489) threadlocker or the equivalent to the threads.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 10 N.m (89 lb in).

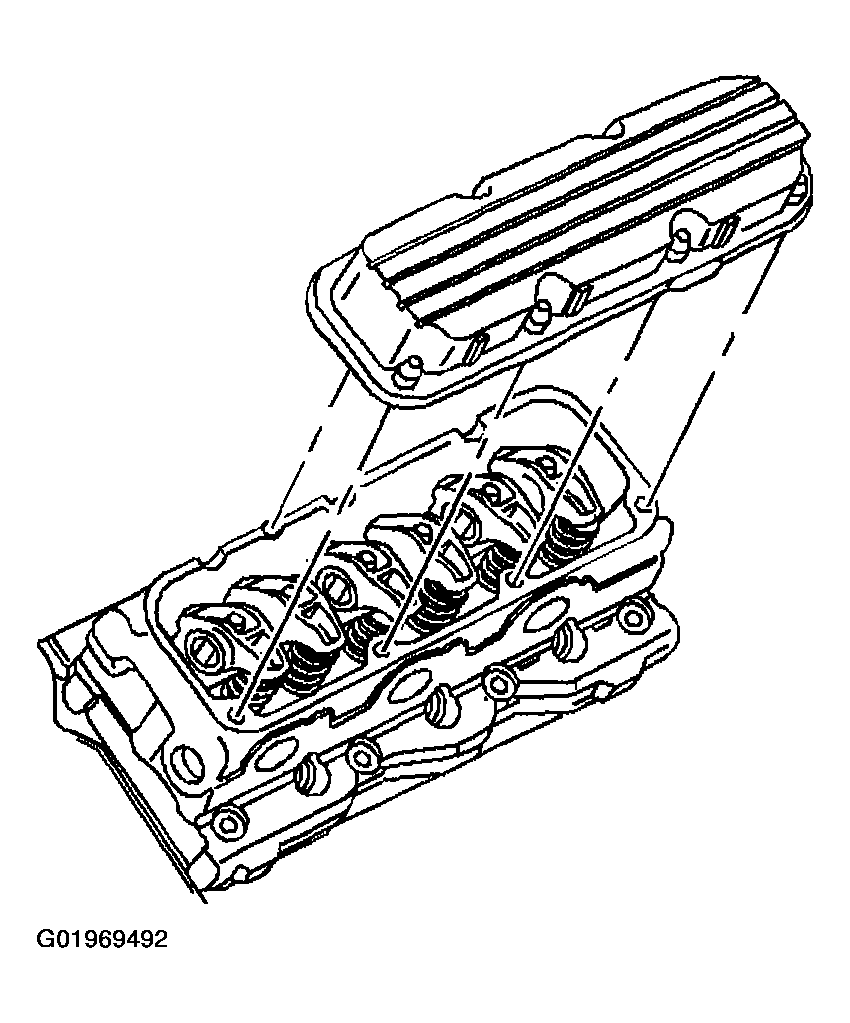

    Fig 1: Installing Right Valve Rocker Arm Cover
    G01969492Courtesy of GENERAL MOTORS CORP.
