Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor shield.

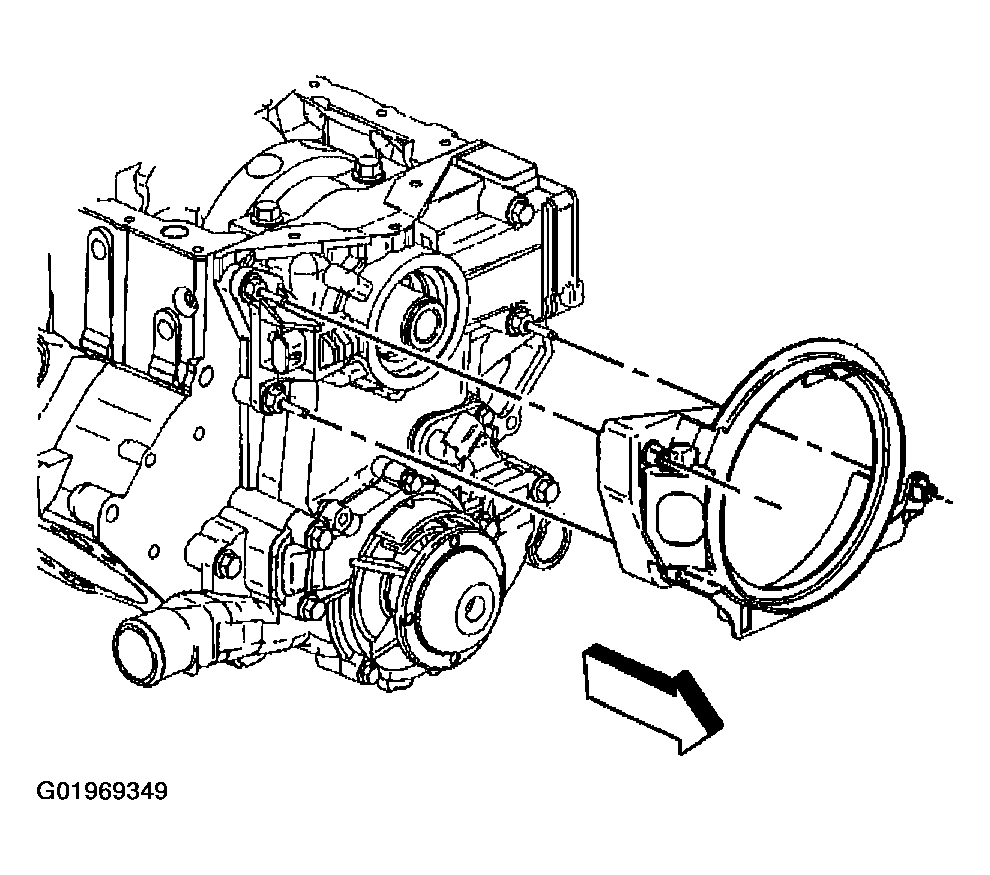

    Fig 1: Removing Crankshaft Position Sensor Shield
    G01969349Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft position sensor studs.
  3. Remove the crankshaft position sensor.
  4. Remove the bolts connecting the oil pan to the engine front cover.

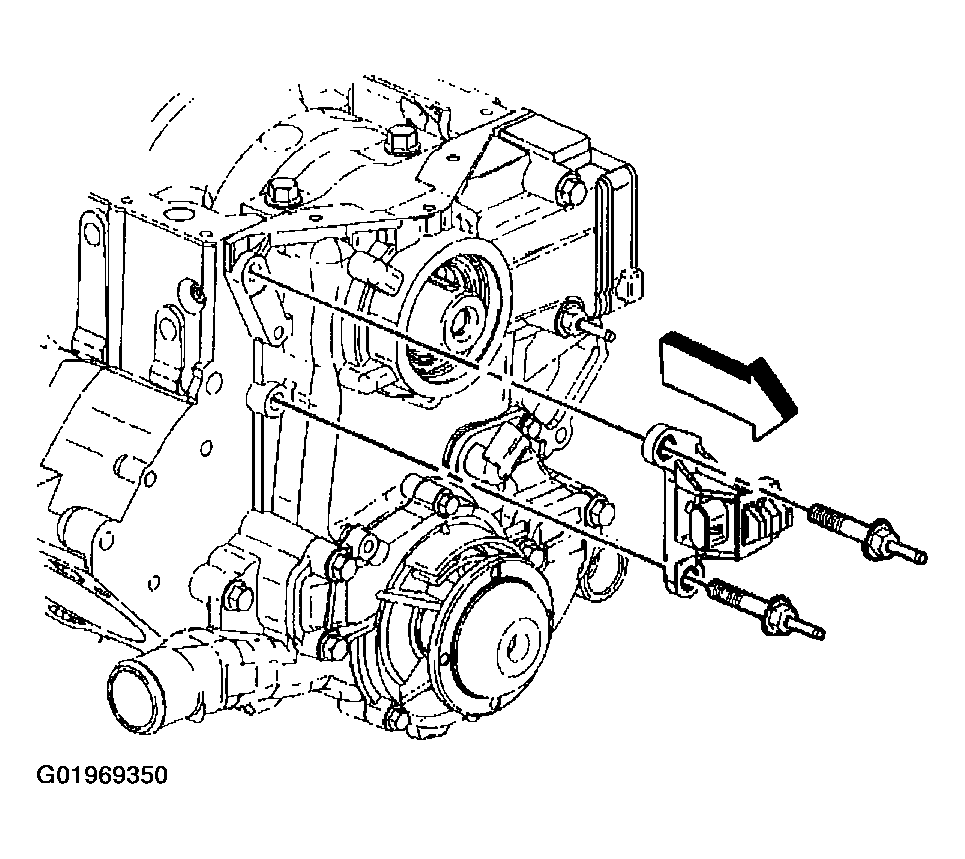

    Fig 2: Removing Crankshaft Position Sensor & Studs
    G01969350Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine front cover bolts and stud
  6. Remove the engine front cover.

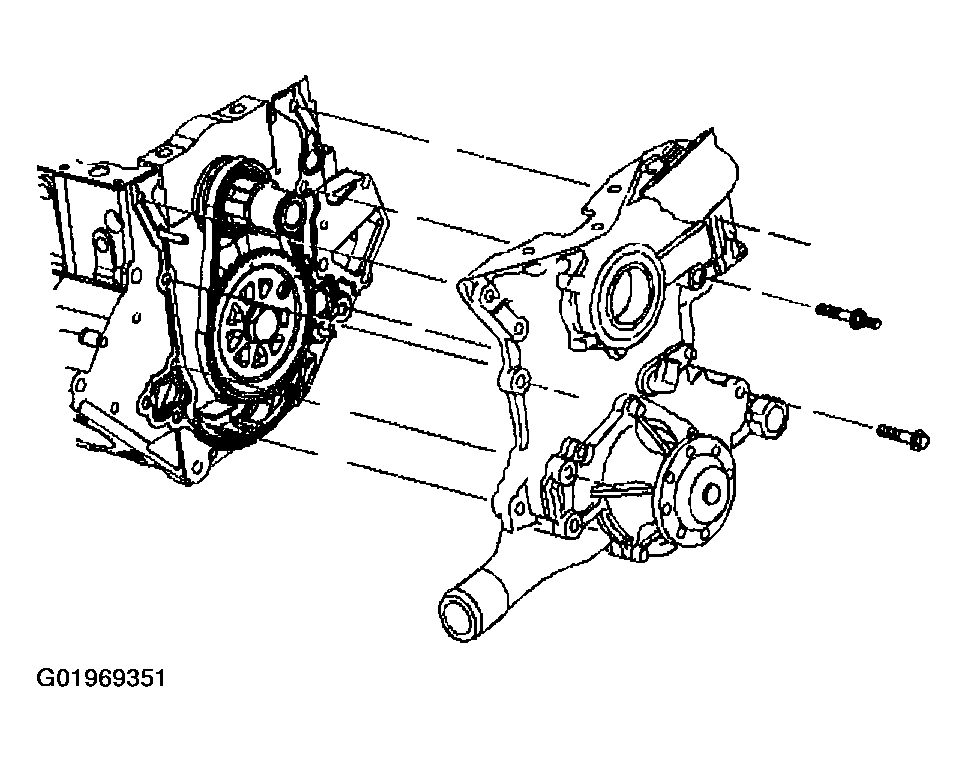

    Fig 3: Removing Engine Front Cover, Bolts & Stud
    G01969351Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine front cover gasket.

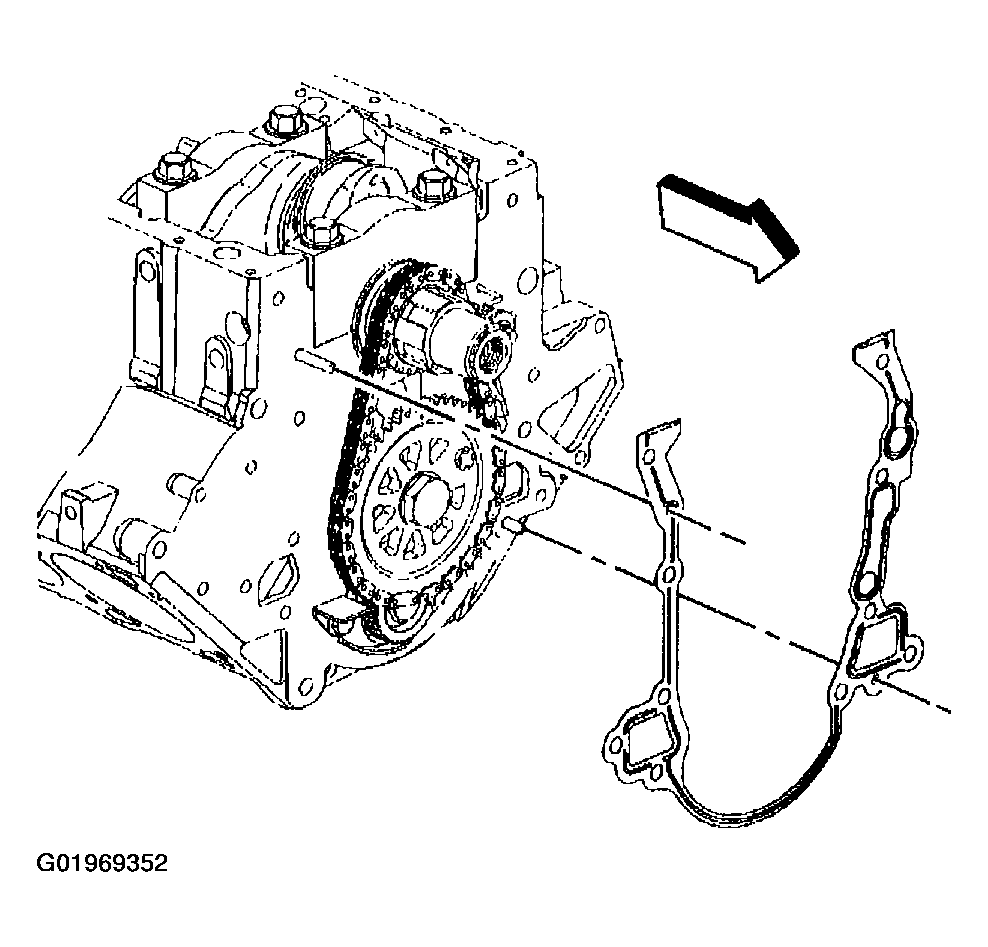

    Fig 4: Removing Engine Front Cover Gasket
    G01969352Courtesy of GENERAL MOTORS CORP.
