Engine Block Plug Removal

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the threaded coolant jacket plugs.

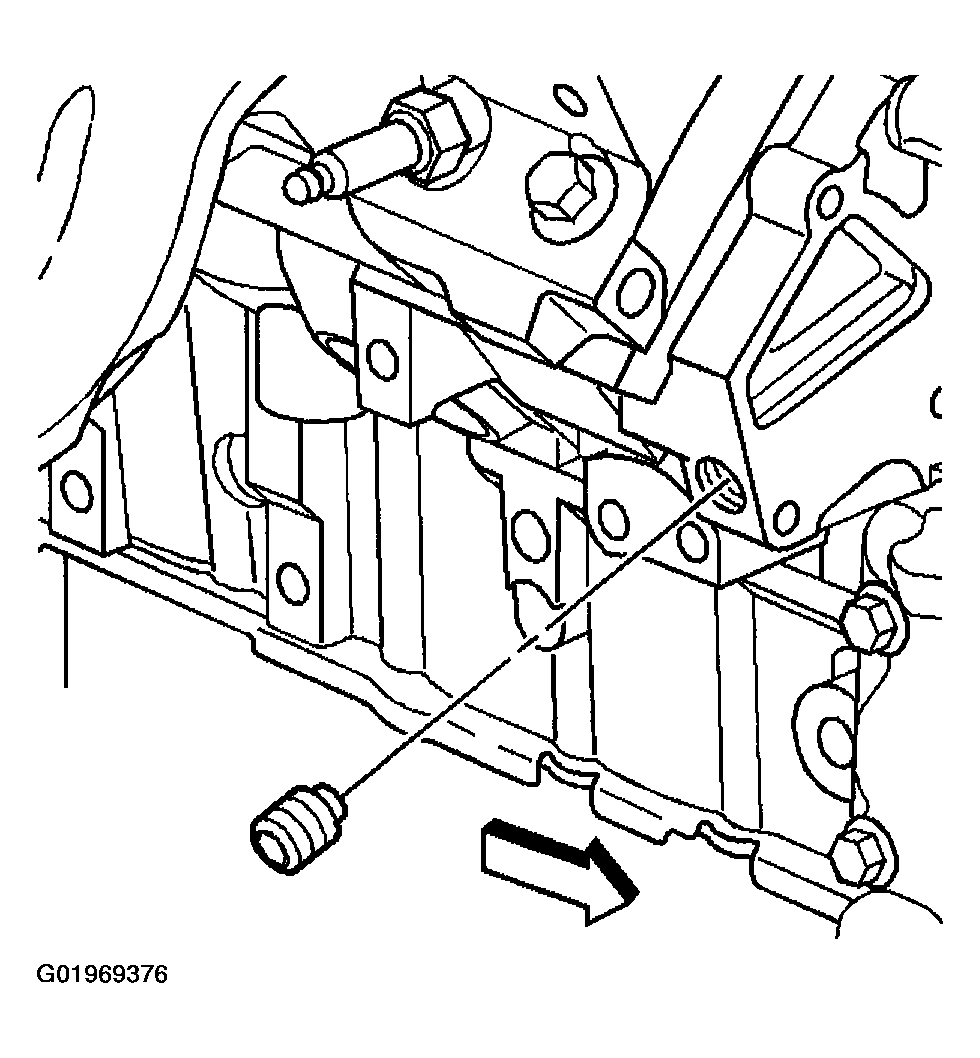

    Fig 1: Removing Threaded Coolant Jacket Plugs
    G01969376Courtesy of GENERAL MOTORS CORP.
  2. Remove the remaining plugs using the following procedure.
    1. 2.1. Obtain a suitable self-threading screw.
    2. 2.2. Drill a hole into the plug.
    3. 2.3. Install the self-threading screw.
    4. 2.4. Use the screw to pry out the plug.

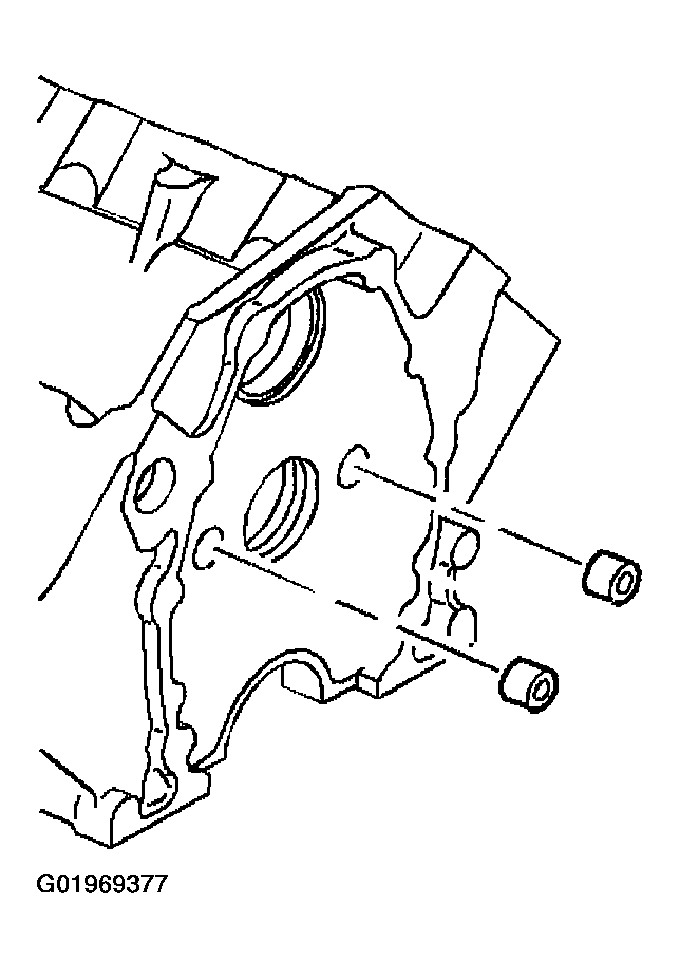

      Fig 2: Removing Coolant Jacket Plugs
      G01969377Courtesy of GENERAL MOTORS CORP.
