Drive Belt Idler Pulley Installation (L67)

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt idler pulley.

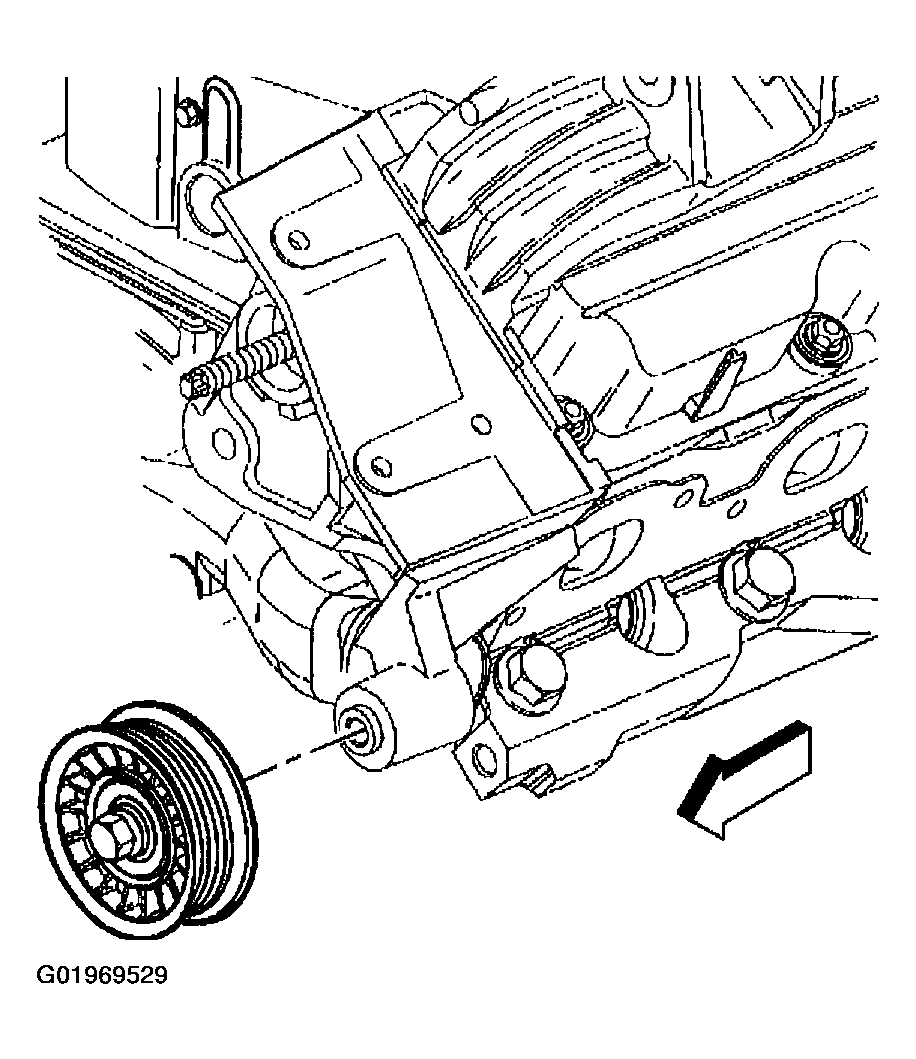

    Fig 1: Installing Drive Belt Idler Pulley (L67)
    G01969529Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the drive belt idler pulley bolt.

    Tighten

    Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft).
