Crankshaft and Bearings Installation
WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Tools Required
J 36660-A Torque Angle Meter. See Special Tools and Equipment .

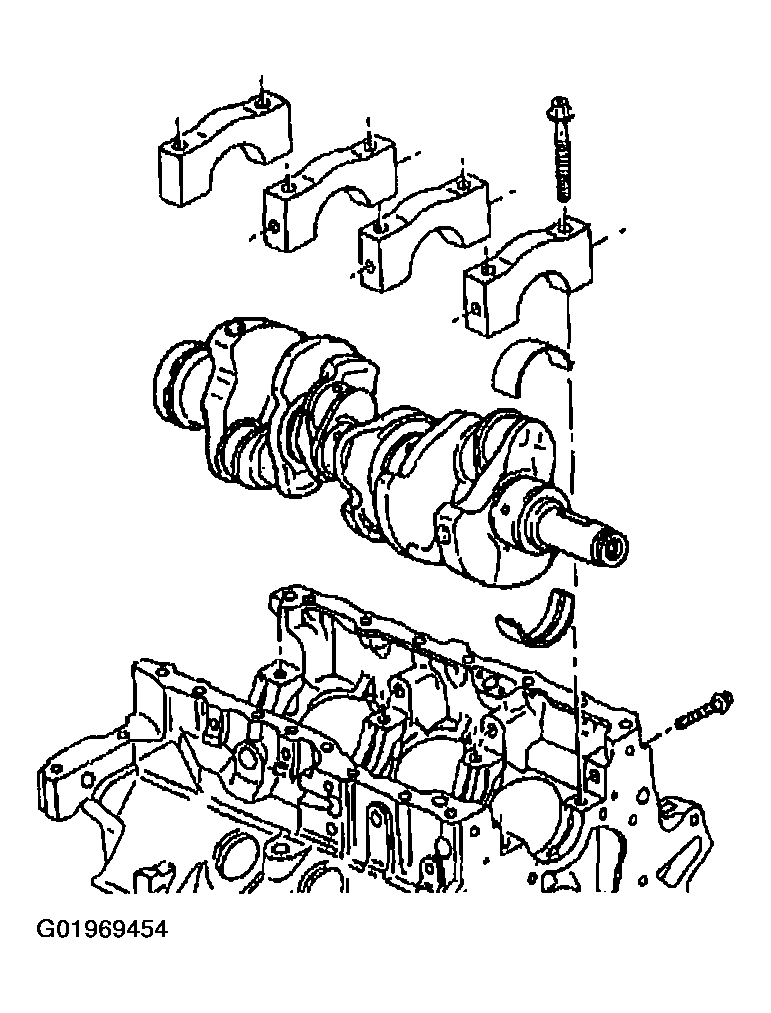

- Install the upper crankshaft main bearings.
- Install the crankshaft. Lubricate the crankshaft to crankshaft main bearing contact areas with engine oil or engine assembly lubricant.NOTE: In order to prevent the possibility of cylinder block or crankshaft bearing cap damage, the crankshaft bearing caps are tapped into the cylinder block cavity using a brass, lead, or a leather mallet before the attaching bolts are installed. Do not use attaching bolts to pull the crankshaft bearing caps into the seats. Failure to use this process may damage a cylinder block or a bearing cap.
- Install the lower crankshaft main bearings into the main bearing caps.
NOTE: Refer to SPECIAL FASTENER NOTICE in Cautions and Notices.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the crankshaft main bearing cap bolts. Start the crankshaft main bearing cap bolts by hand. Ensure the bottom of the crankshaft main bearing cap is parallel to the bottom of the channel.
Tighten
- Tighten the crankshaft main bearing cap bolts in equal increments. Do not completely tighten one bolt at a time to prevent the cap from being cocked.
- Tighten the bolts to 70 N.m (52 lb ft) to fully seat the crankshaft main bearing caps. Loosen the bolts 360 degrees counterclockwise.
- Tighten the bolts to 20 N.m (15 lb ft), then 40 N.m (30 lb ft).
- Use J 36660-A to tighten the bolts in steps: 35 degrees + 35 degrees + 40 degrees for a total of 110 degrees.
- Install the side main bolts. Apply GM P/N United States 12345493, GM P/N Canada 10953488 or the equivalent to the side main bolts.
Tighten
Tighten the side crankshaft main bearing cap bolts to 15 N.m (11 lb ft). Use J 36660-A to tighten the bolts an additional 45 degrees.
