Upper Engine Noise, Regardless of Engine Speed

WARNING: This page is about a different car, the 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

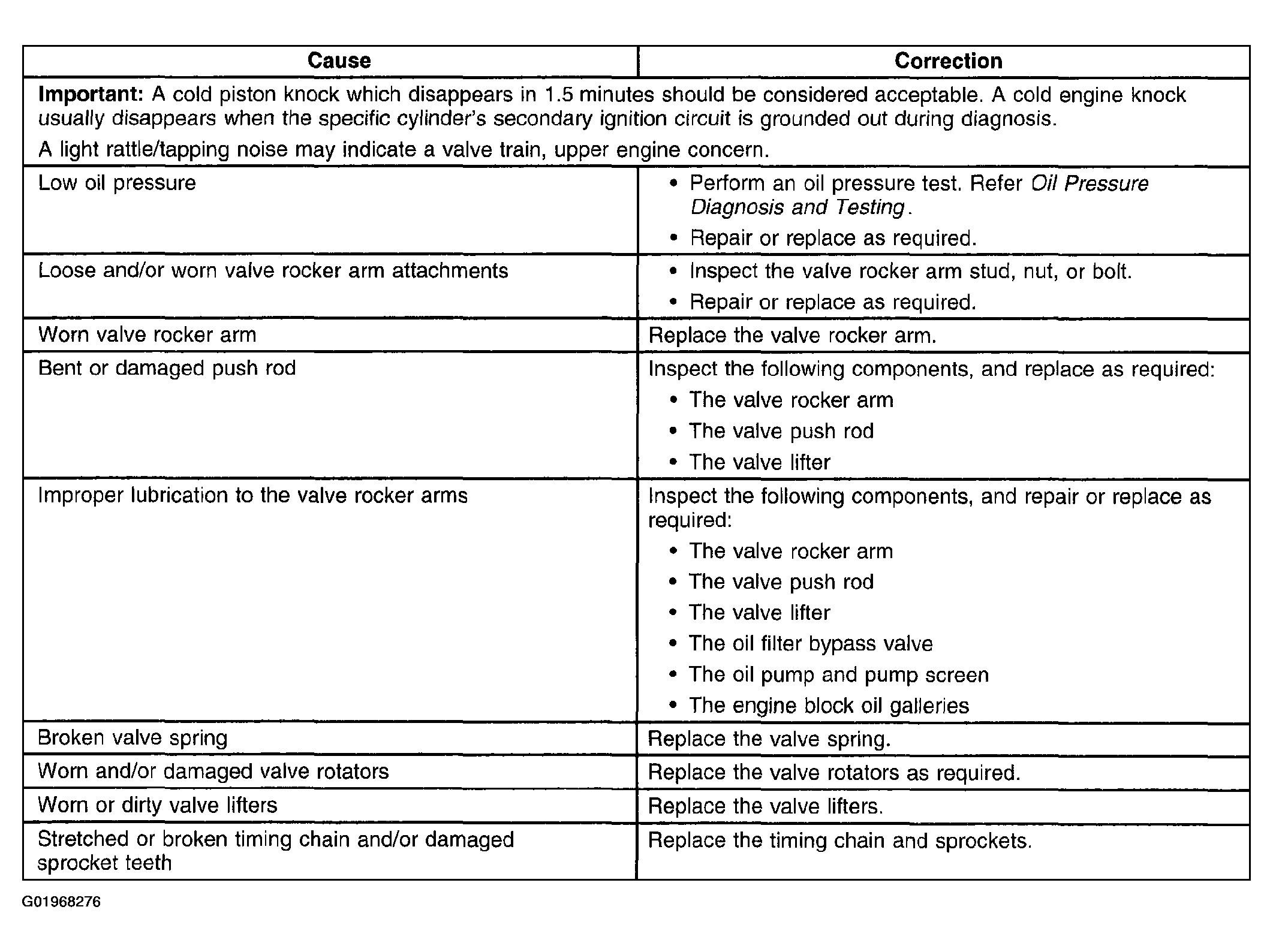

Fig 1: Upper Engine Noise, Regardless Of Engine Speed
G01968276Courtesy of GENERAL MOTORS CORP.

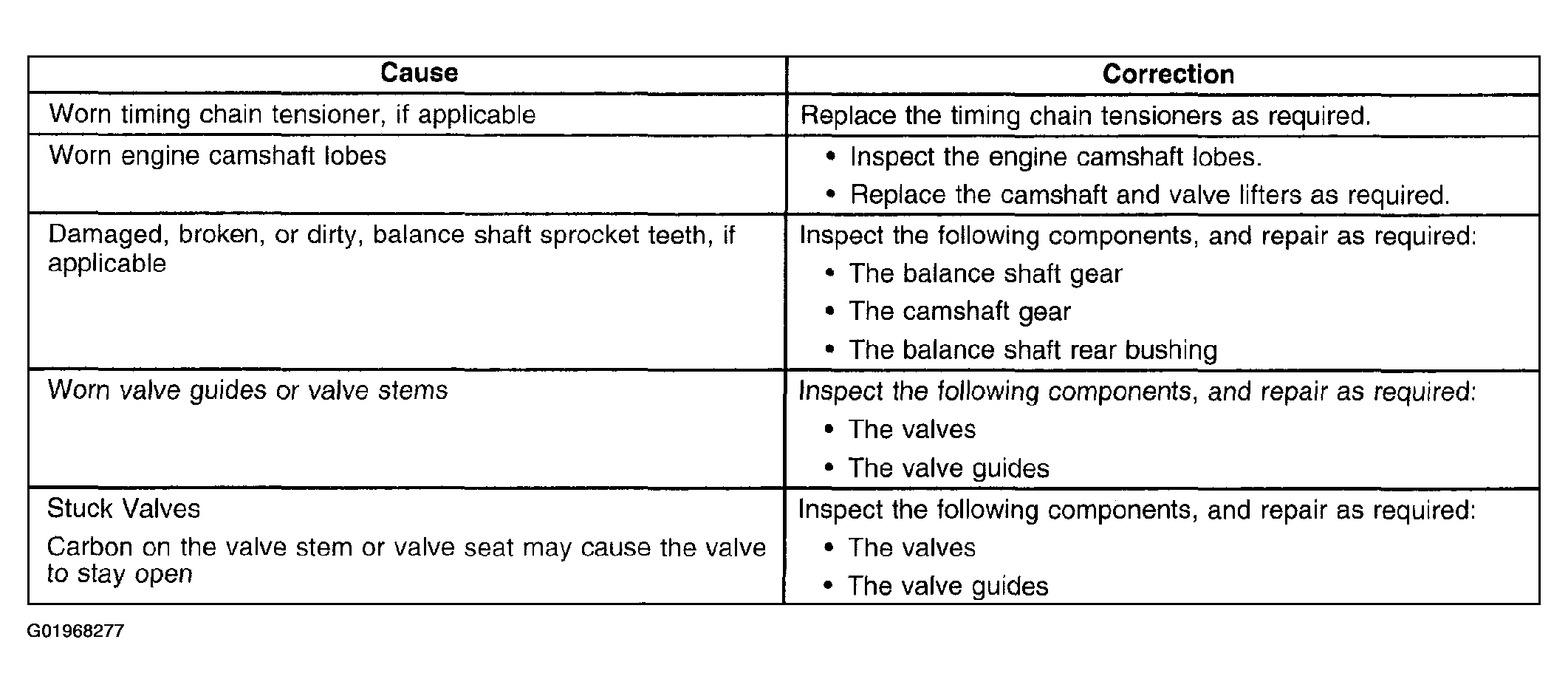

Fig 2: Upper Engine Noise, Regardless of Engine Speed
G01968277Courtesy of GENERAL MOTORS CORP.
