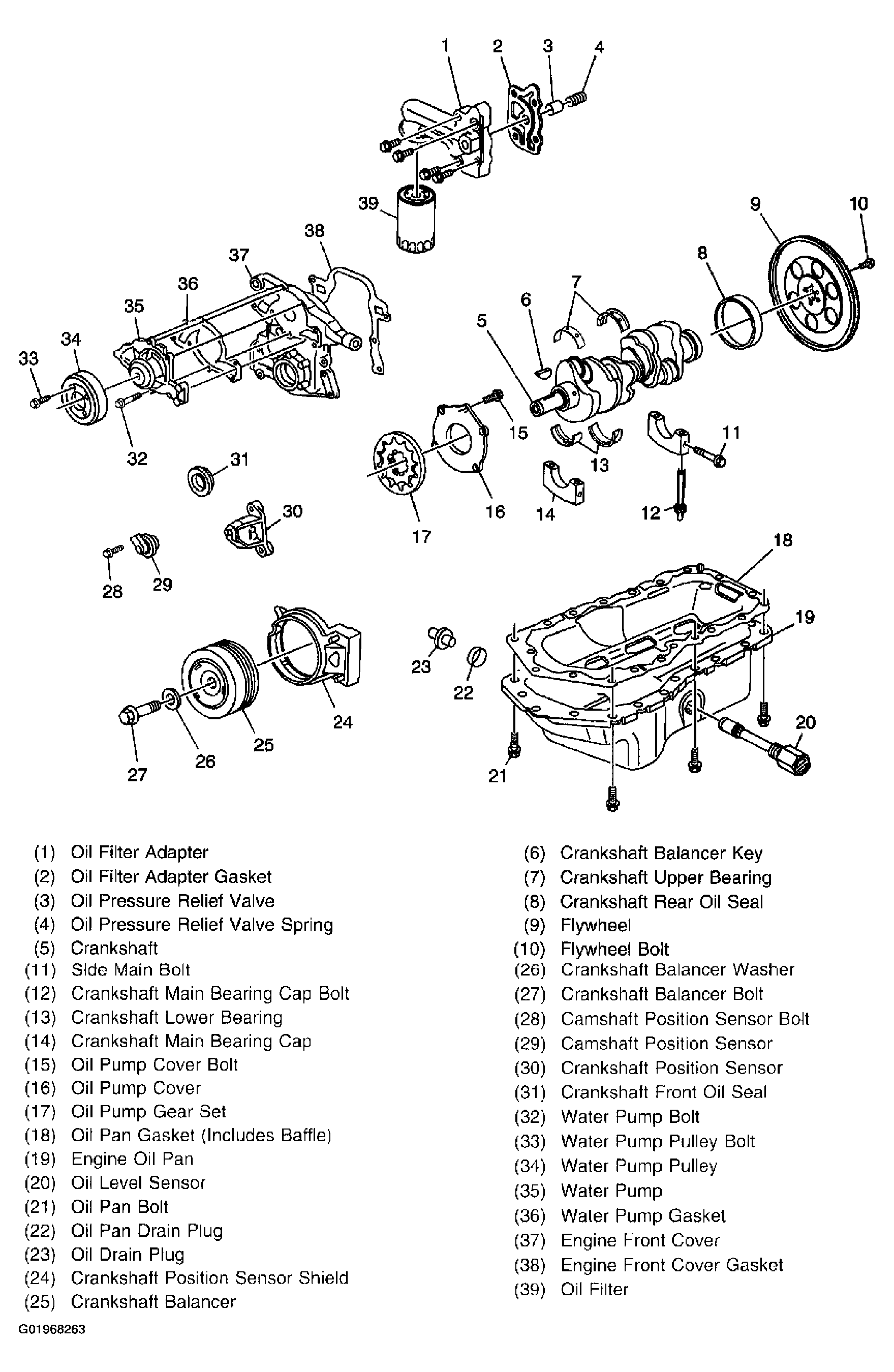

Fig 1: Exploded View Of Engine Block & Components
Courtesy of GENERAL MOTORS CORP.

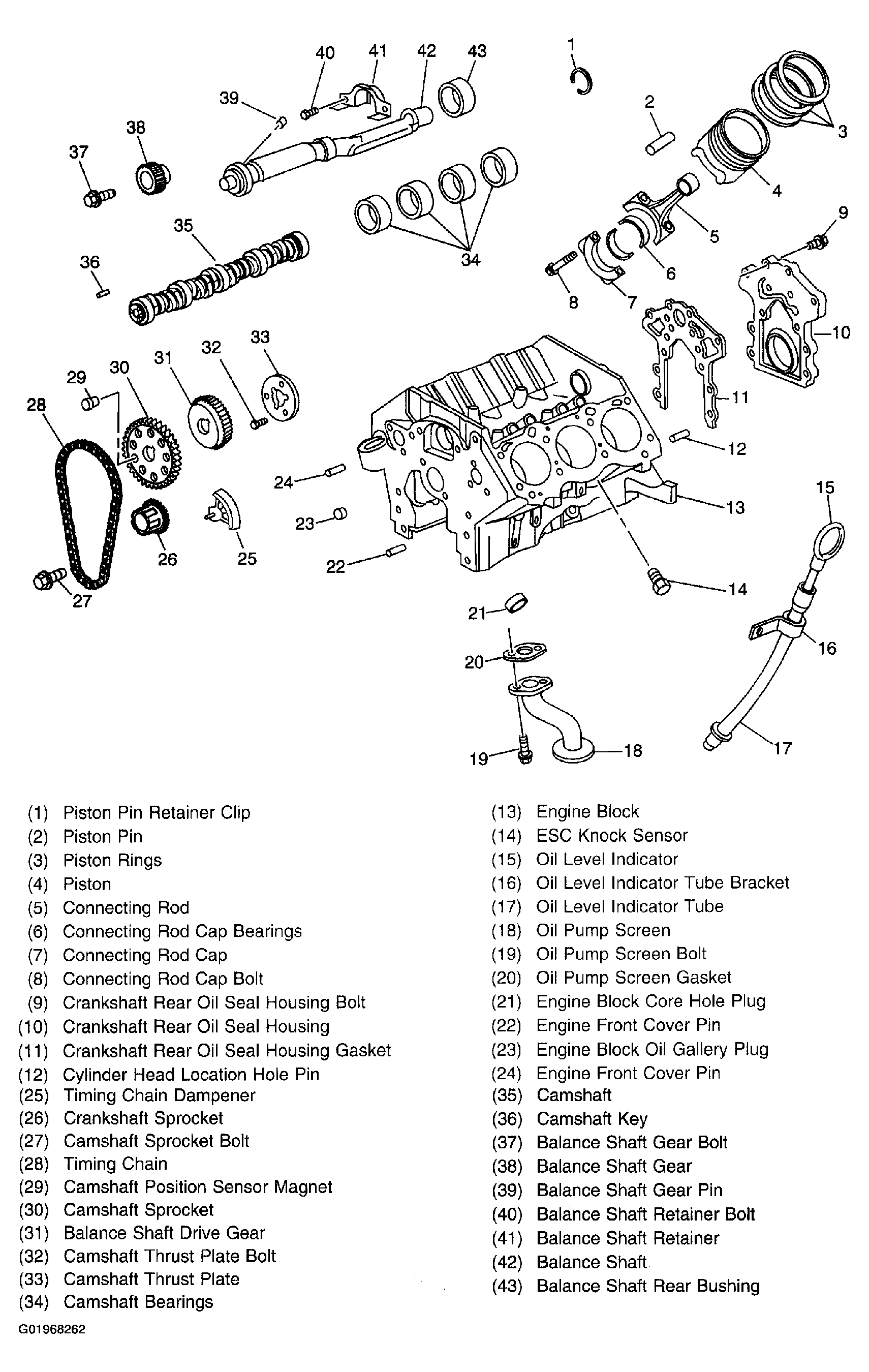

Fig 2: Exploded View Of Crankshaft & Components (W)
Courtesy of GENERAL MOTORS CORP.

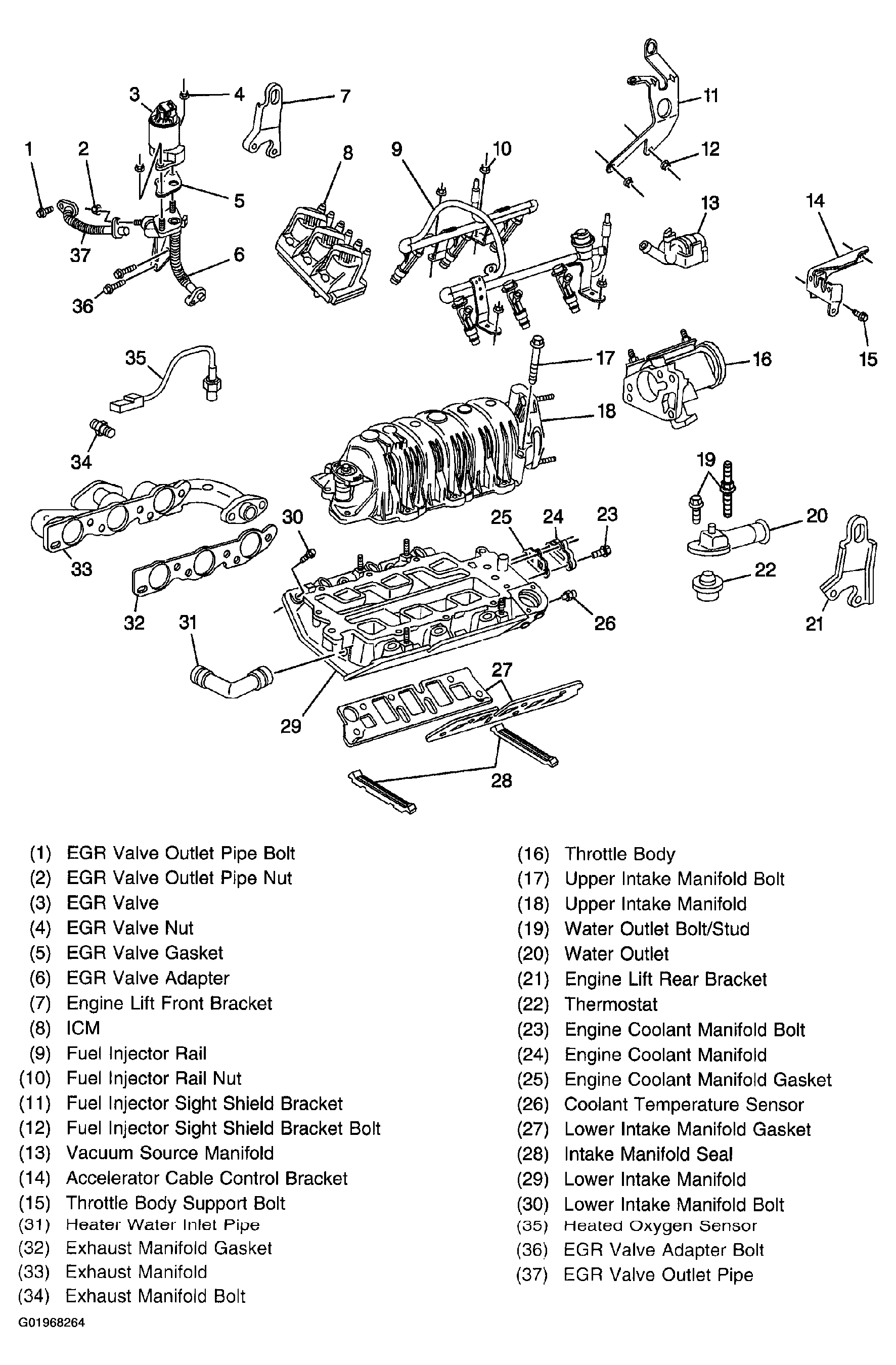

Fig 3: Exploded View Of Intake Manifold & Components
Courtesy of GENERAL MOTORS CORP.

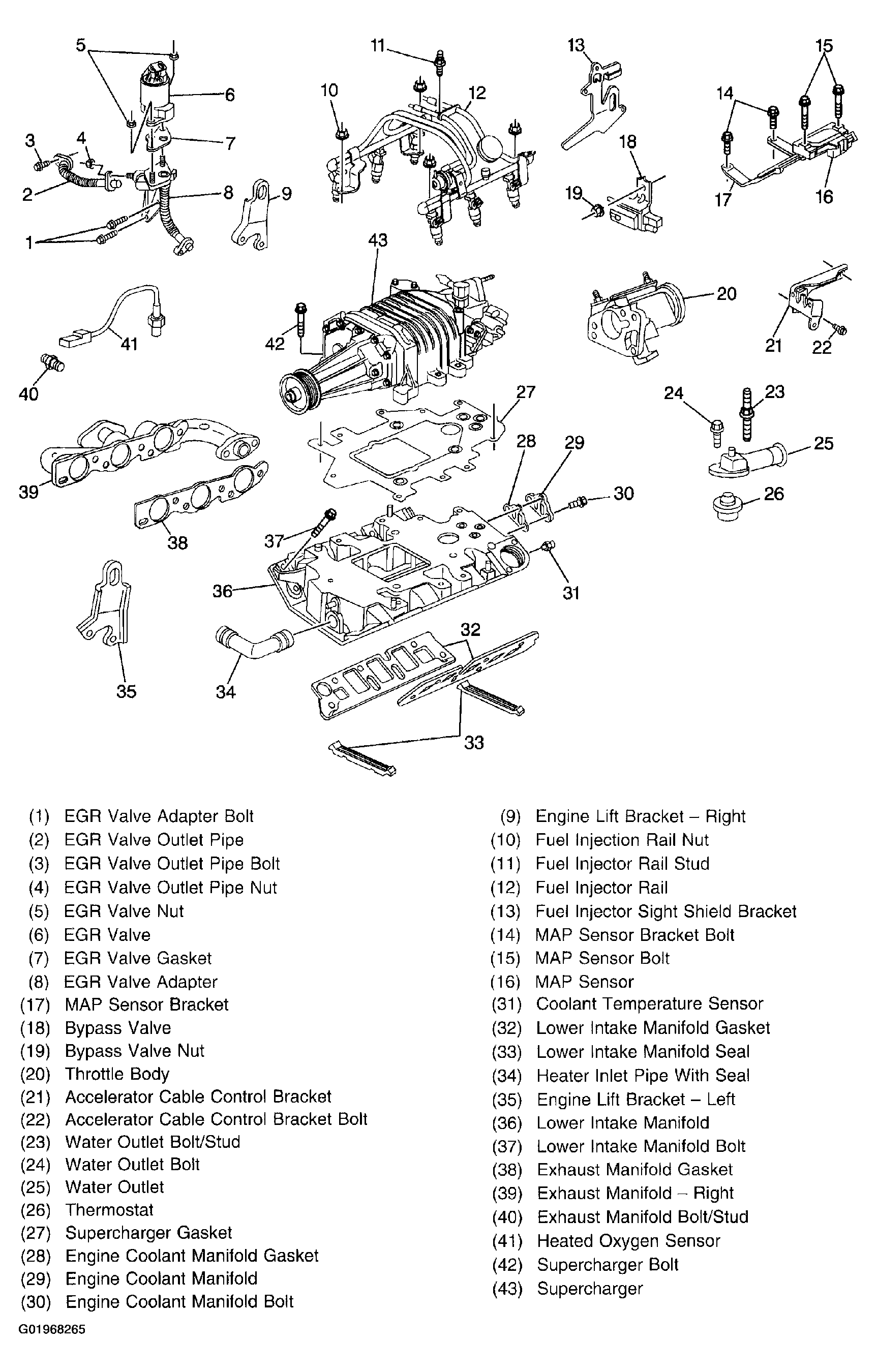

Fig 4: Exploded View Of Supercharger & Components (L67)
Courtesy of GENERAL MOTORS CORP.

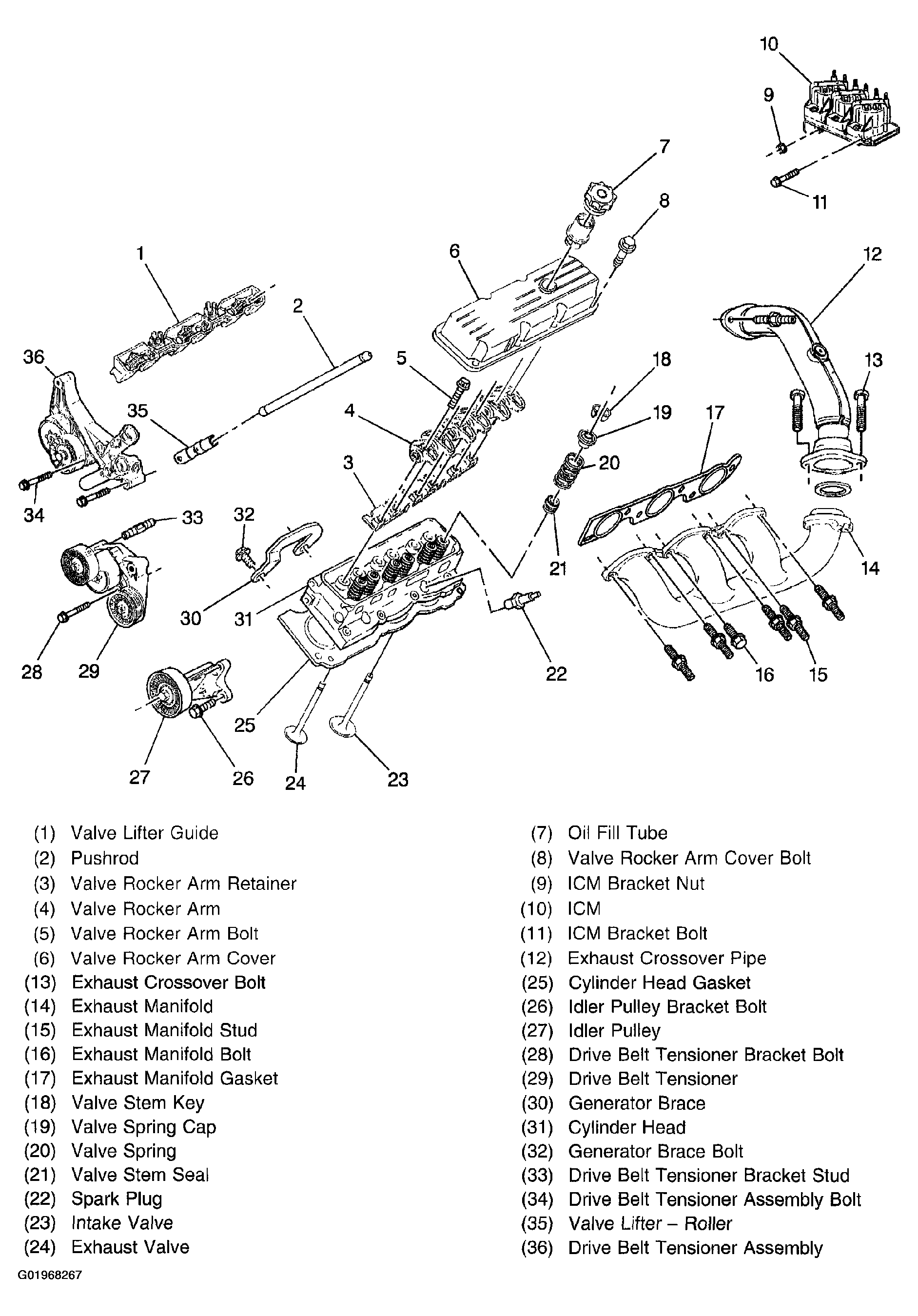

Fig 5: Exploded View Of Cylinder Head & Components - L36
Courtesy of GENERAL MOTORS CORP.

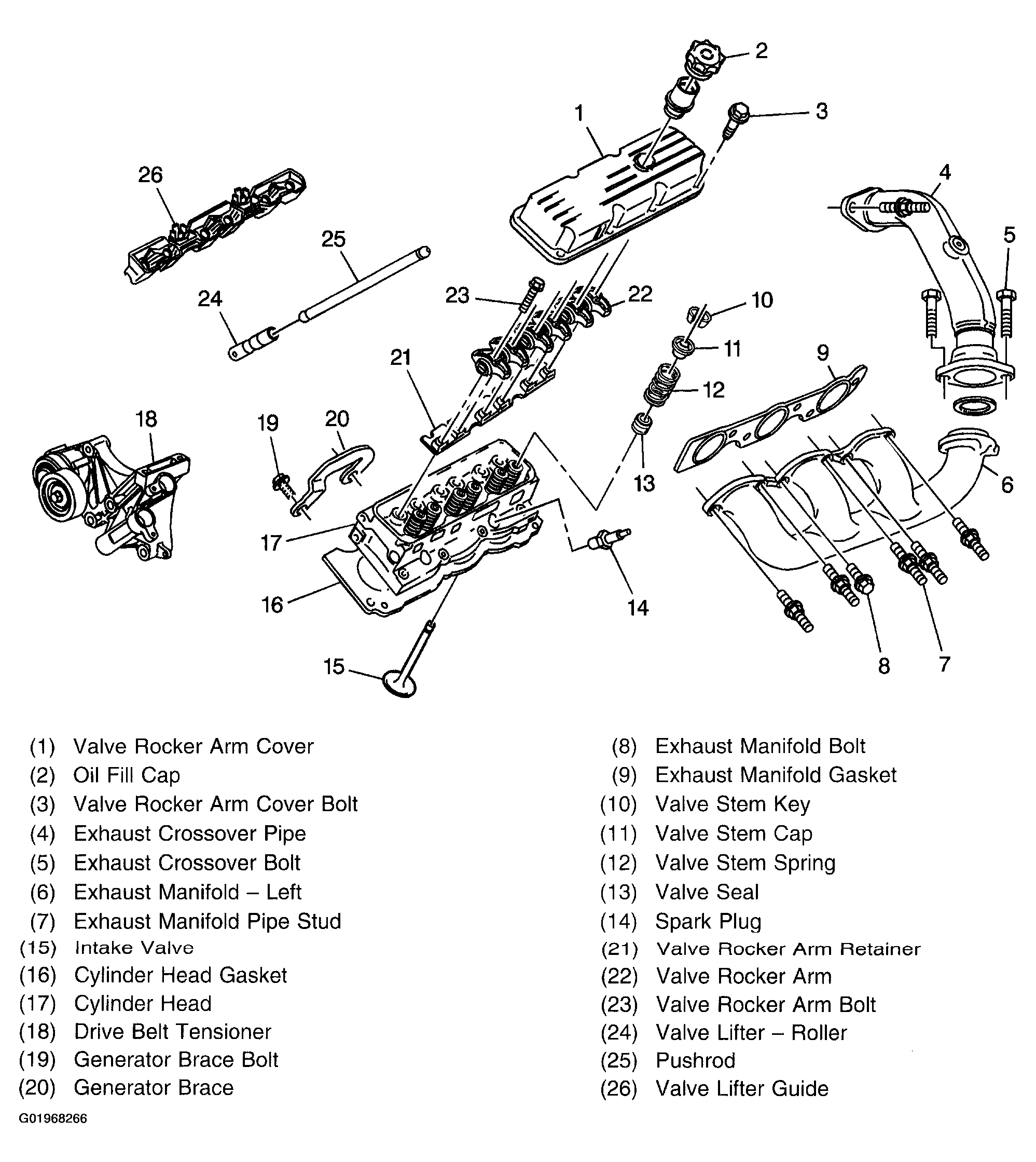

Fig 6: Exploded View Of Cylinder Head & Components (L67)
