Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve stem oil seal.
  2. Install the valve spring.
  3. Install the valve cap.

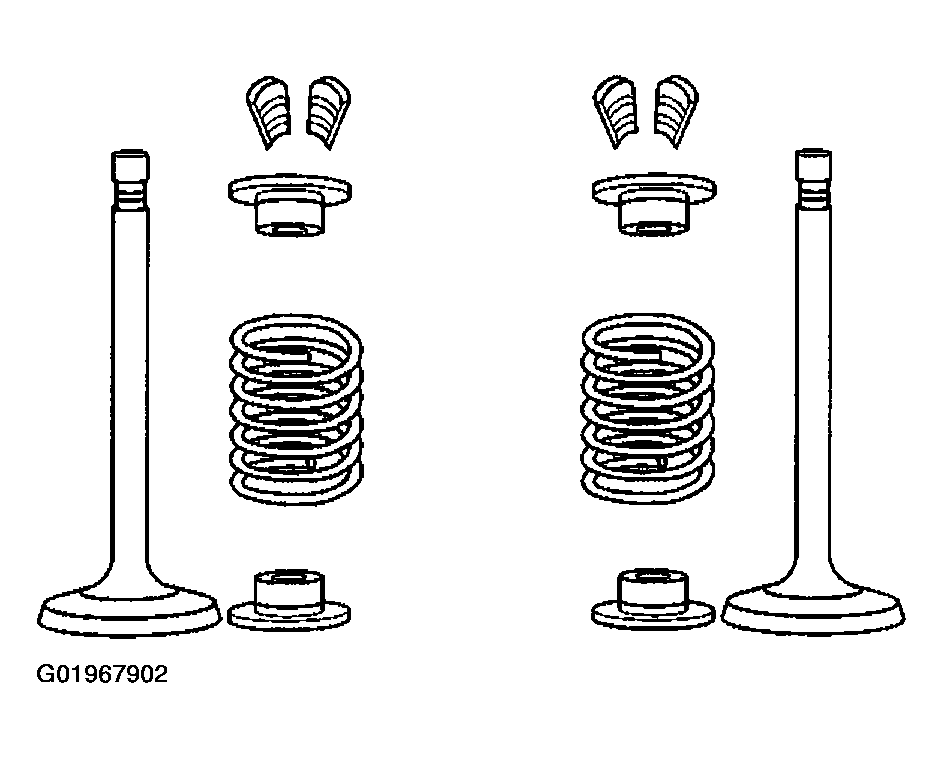

    Fig 1: View Of Valve Components
    G01967902Courtesy of GENERAL MOTORS CORP.
  4. Compress the valve using the J 38606  .

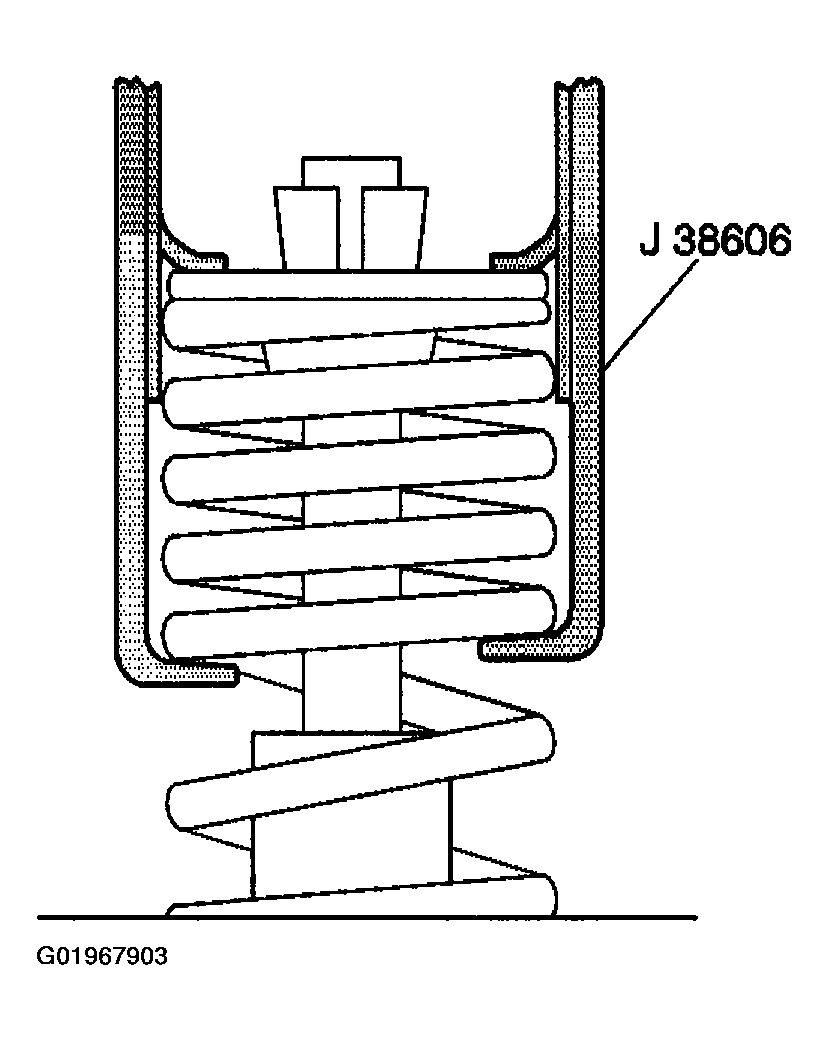

    Fig 2: Compressing Valve Spring
    G01967903Courtesy of GENERAL MOTORS CORP.
  5. Install the valve locks. If necessary, hold the valve locks in place with grease.
  6. Release the valve spring using the J 38606  .
  7. Ensure that the valve locks are seated.
  8. Release the air pressure and remove the J 22794  from the spark plug port.

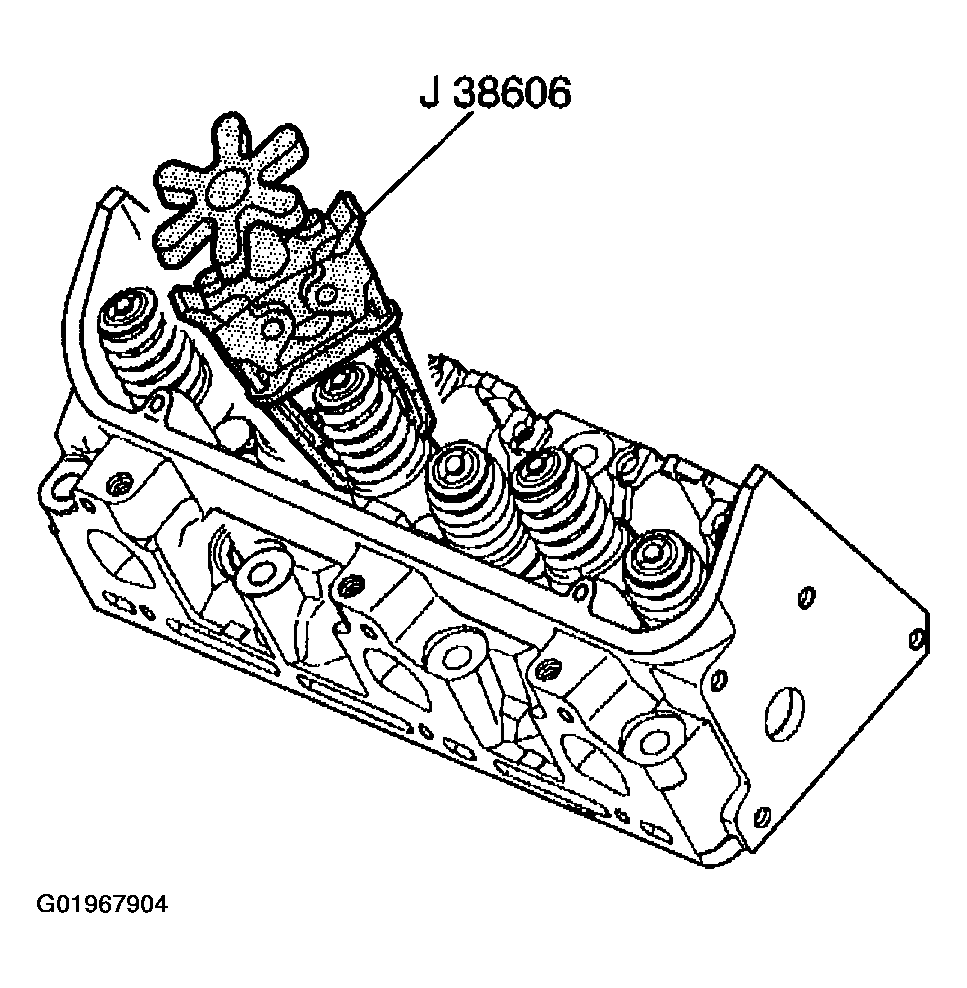

    Fig 3: View Of J 22794
    G01967904Courtesy of GENERAL MOTORS CORP.
  9. Install the valve rocker arm. Refer to VALVE ROCKER ARM AND PUSH ROD REPLACEMENT  .
  10. Install the spark plug. Refer to SPARK PLUGS in Removal & Installation.
