Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Apply sealant GM P/N 12346286 (Canadian P/N 10953472) or equivalent at the cylinder head to lower intake manifold joint.

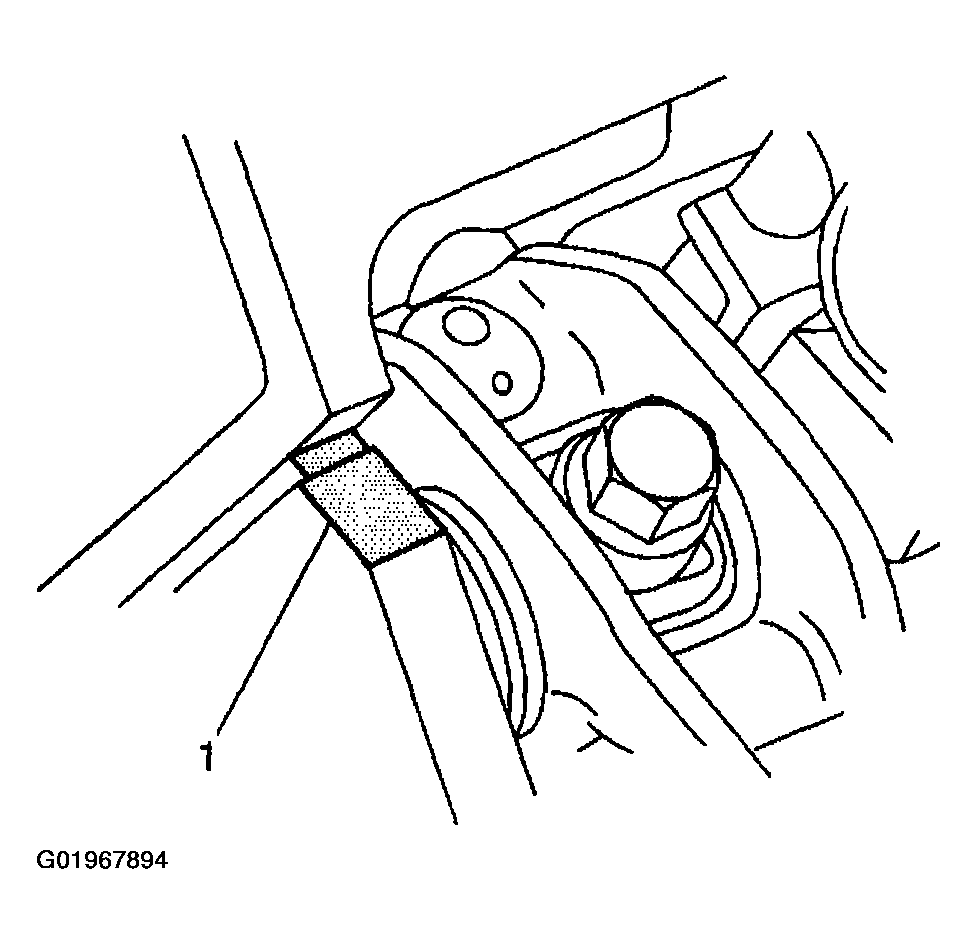

  1. Apply sealant at the cylinder head to lower intake manifold joint at the rear of the lower intake manifold (1).
    Fig 1: Locating Joint At Rear Of Lower Intake Manifold
    G01967894Courtesy of GENERAL MOTORS CORP.

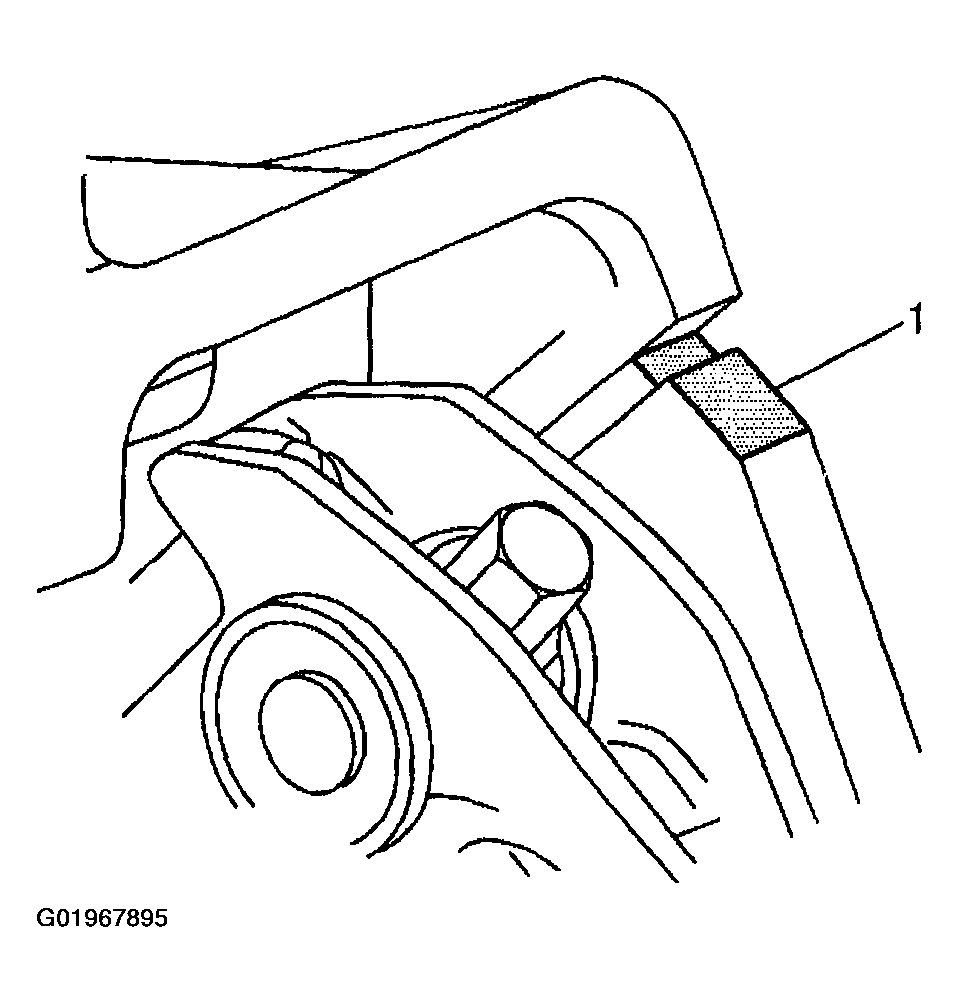

  2. Apply sealant at the cylinder head to lower intake manifold joint at the front of the lower intake manifold (1).
    Fig 2: Locating Joint At Front Of Lower Intake Manifold
    G01967895Courtesy of GENERAL MOTORS CORP.
  3. Install a new right valve rocker arm cover gasket.
  4. Install the right valve rocker arm cover.

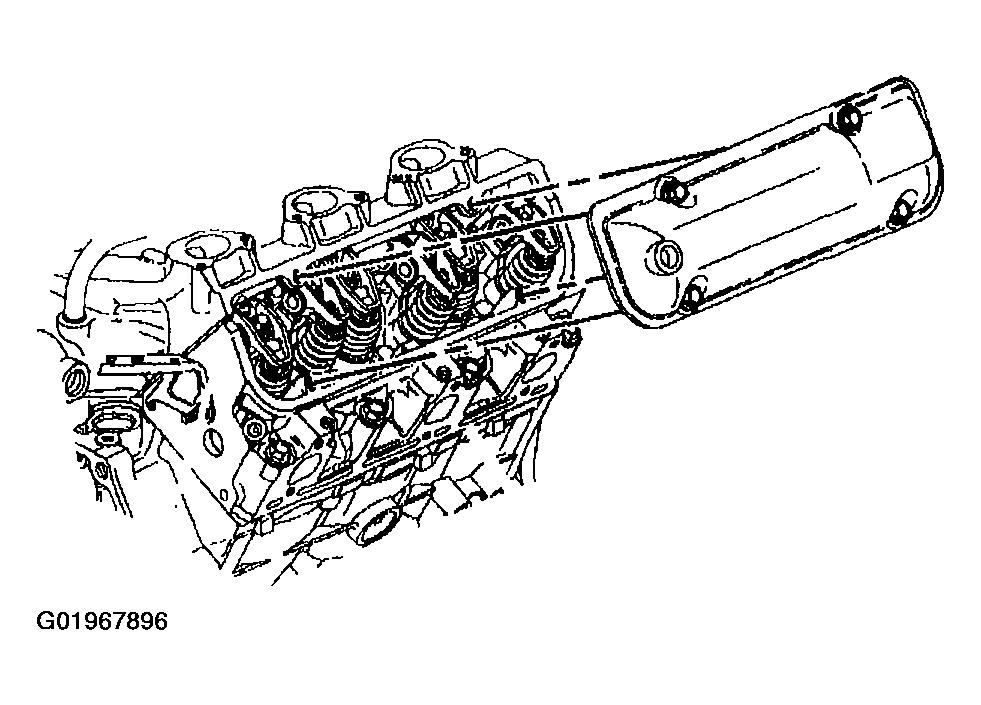

    Fig 3: Installing Right Valve Rocker Arm Cover
    G01967896Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the right valve rocker arm cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  6. Install the vacuum hose to the grommet in the right valve rocker arm cover.
  7. Install the ignition coil bracket studs.
  8. Install the ignition coil bracket with the coils. Refer to IGNITION COILS in Removal & Installation.
  9. Install the EVAP purge valve. Refer to EVAP CANISTER PURGE VALVE in Removal & Installation.
  10. Install the right spark plug wires. Refer to SPARK PLUGS in Removal & Installation.
  11. Install the generator bracket. Refer to GENERATOR BRACKET REPLACEMENT Battery.
  12. Install the generator. Refer to GENERATOR in Generators & Regulators.
  13. Install the drive belt. Refer to DRIVE BELT REPLACEMENT  .
  14. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE Battery.
  15. Inspect for leaks.
