Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the valve lifters with prelube GM P/N 1052367 (Canadian P/N 992869) or equivalent.
  2. Install the valve lifters to the same location from which they were removed.
  3. Install the valve lifter guides.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the valve lifter guide bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

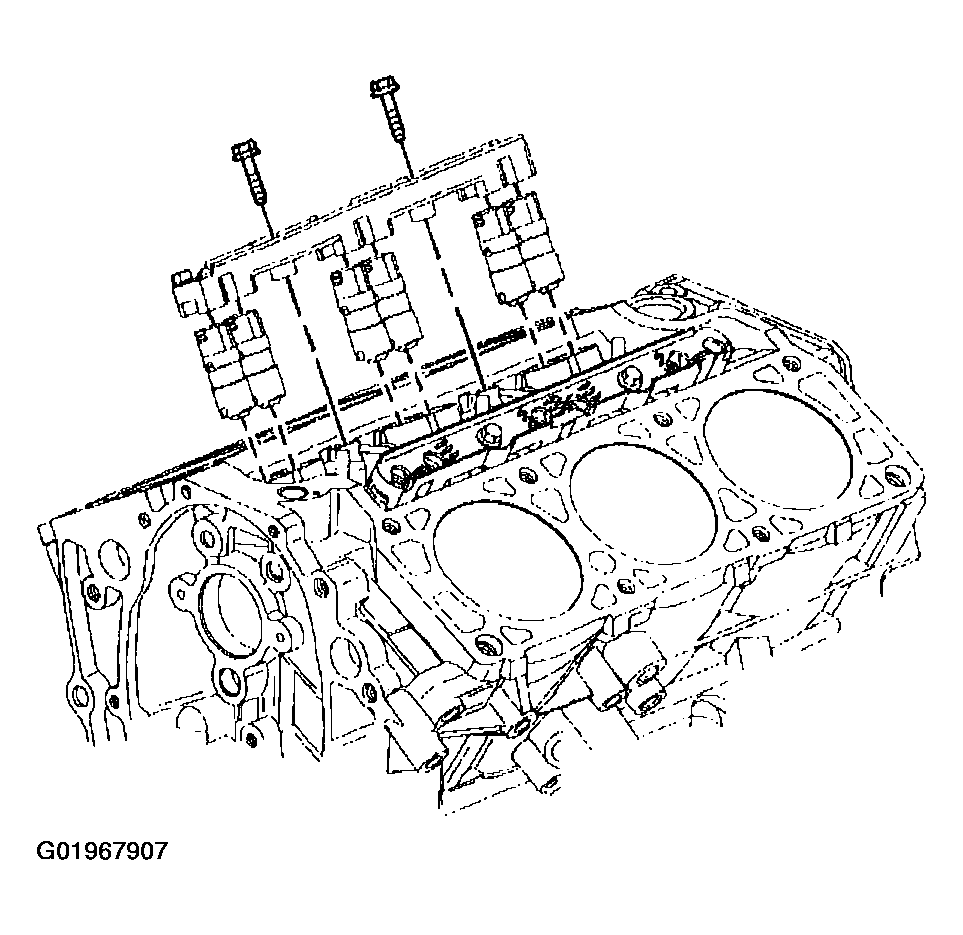

    Fig 1: Installing Valve Lifters, Guides & Bolts
    G01967907Courtesy of GENERAL MOTORS CORP.
  5. Install the intake manifold oil splash shield

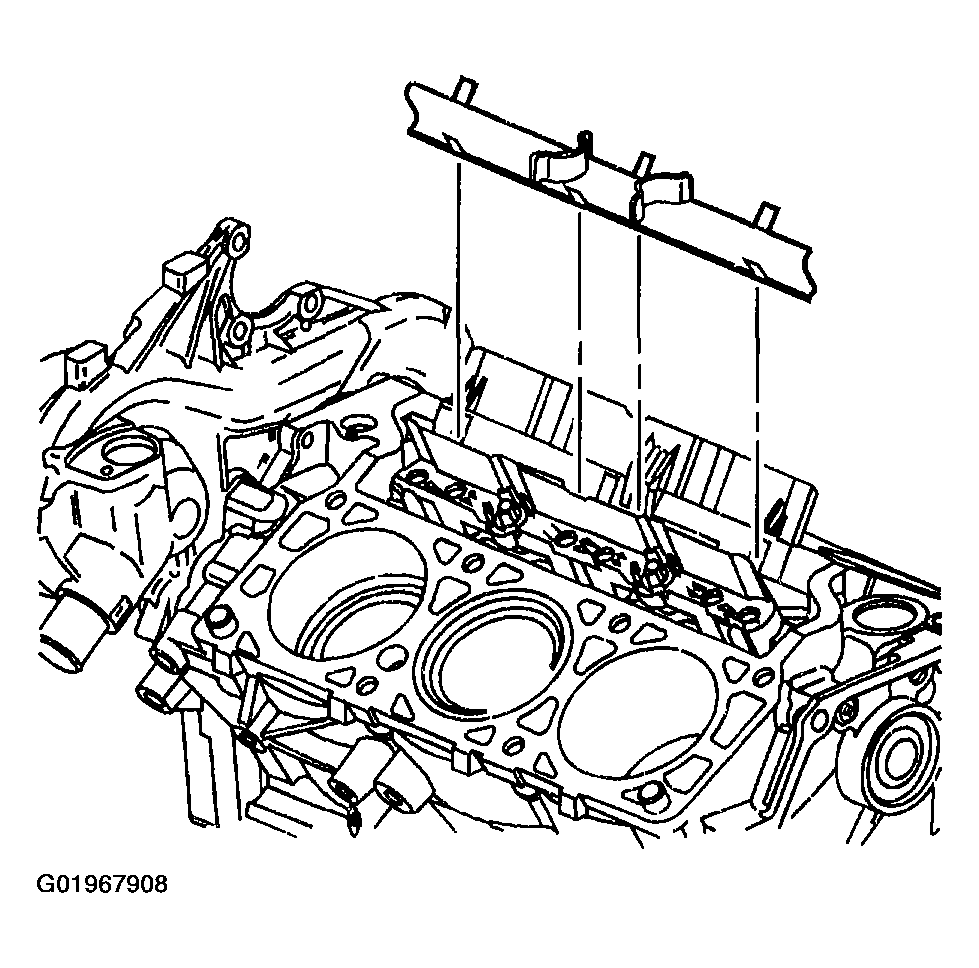

    6. Fig 2: Installing Intake Manifold Oil Splash Shield
    G01967908Courtesy of GENERAL MOTORS CORP.
  6. Install the valve rocker arms and pushrods. Refer to VALVE ROCKER ARM AND PUSH ROD REPLACEMENT  .
  7. Install the lower intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - LOWER  .
