Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the vacuum hoses (1) from the fuel pressure regulator (3) and the positive crankcase ventilation (PCV) valve (2).
  2. Remove the PCV valve (2).

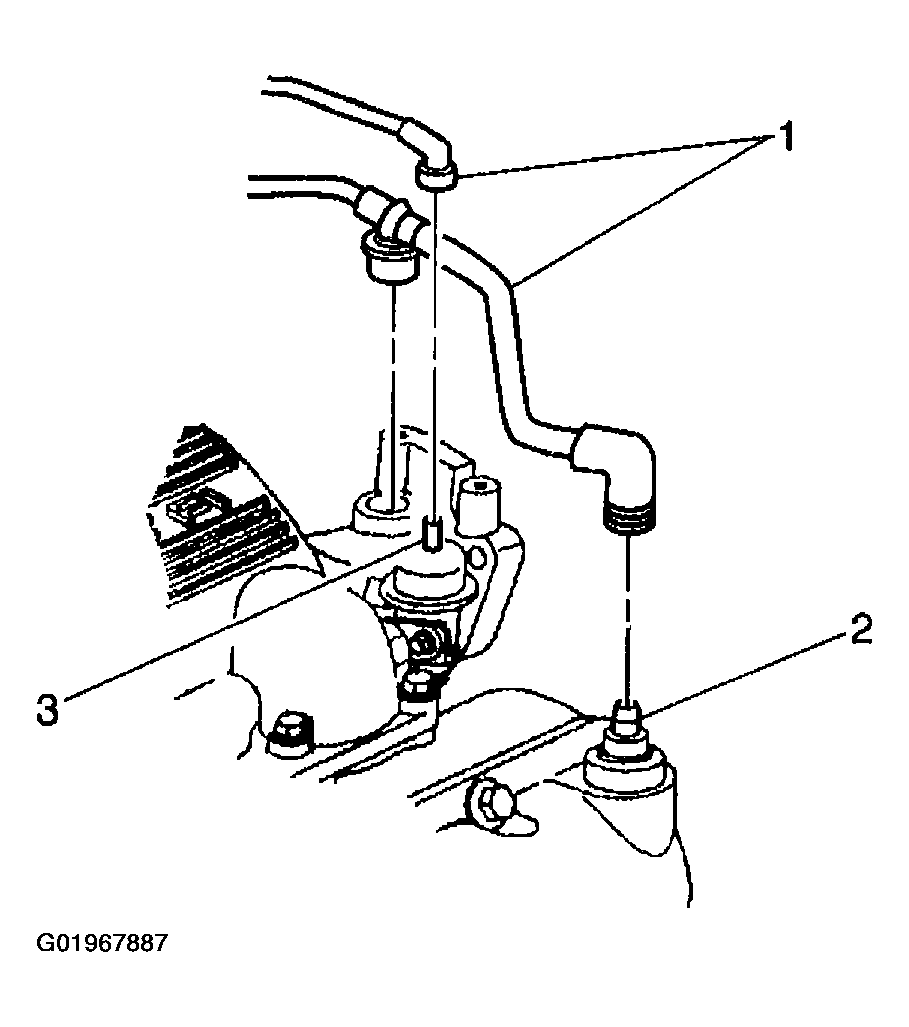

    Fig 1: Disconnecting Fuel Pressure Regulator & PCV Valve Vacuum Hoses
    G01967887Courtesy of GENERAL MOTORS CORP.
