Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the PCV valve (2).
  2. Connect the vacuum hoses (1) to the fuel pressure regulator (3) and the PCV valve (2).

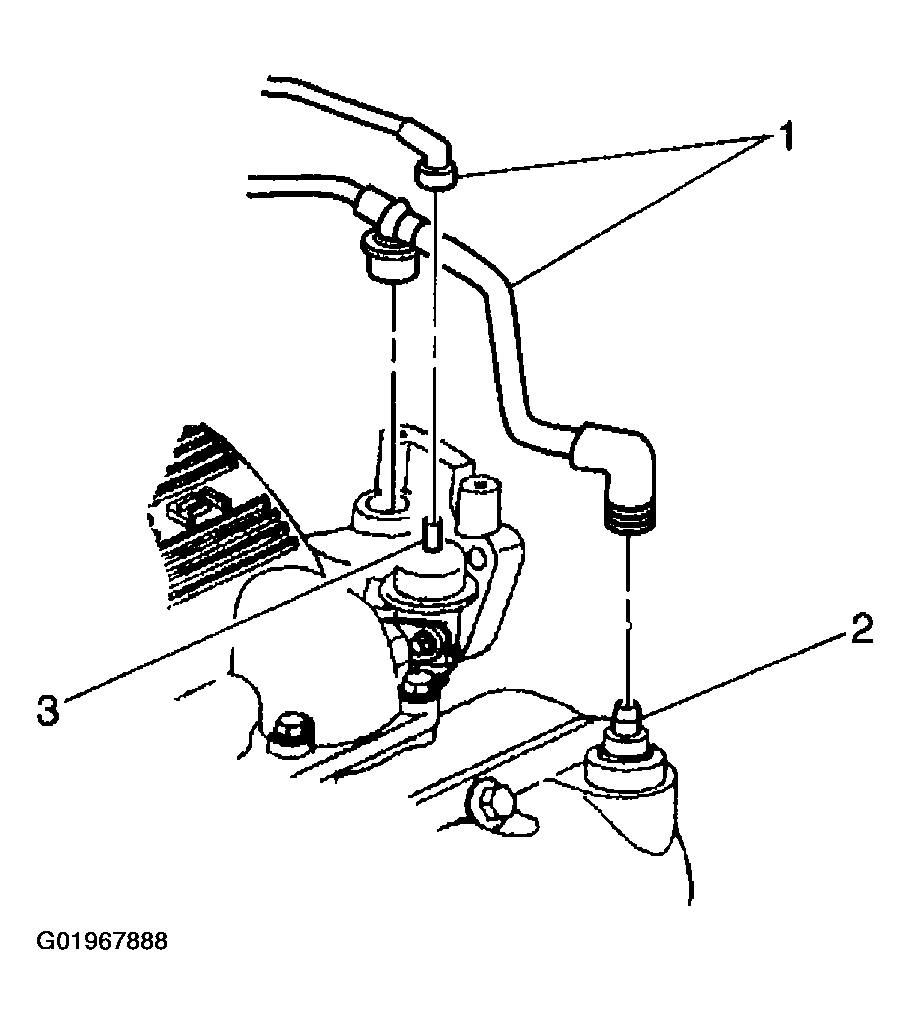

    Fig 1: Connecting Fuel Pressure Regulator & PCV Valve Vacuum Hoses
    G01967888Courtesy of GENERAL MOTORS CORP.
