Engine Support Fixture

Tools Required

• J 28467-B  Universal Engine Support Fixture. See Special Tools and Equipment .
• J 36462-A  Engine Support Adapter Leg Set. See Special Tools and Equipment .
• J-28467-501  Engine Support Fixture Adapters. See Special Tools and Equipment .

1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in (Battery Information Only).
2. Remove the left engine mount strut and the bracket from the upper radiator support. Refer to ENGINE MOUNT STRUT BRACKET REPLACEMENT - UPPER RADIATOR SUPPORT  .
3. Assemble the J-28467-501  (2) to the J 28467-B  cross bar (1).
4. Install the J 28467-B  (1) and the J-28467-501  (2) to the fender rails.

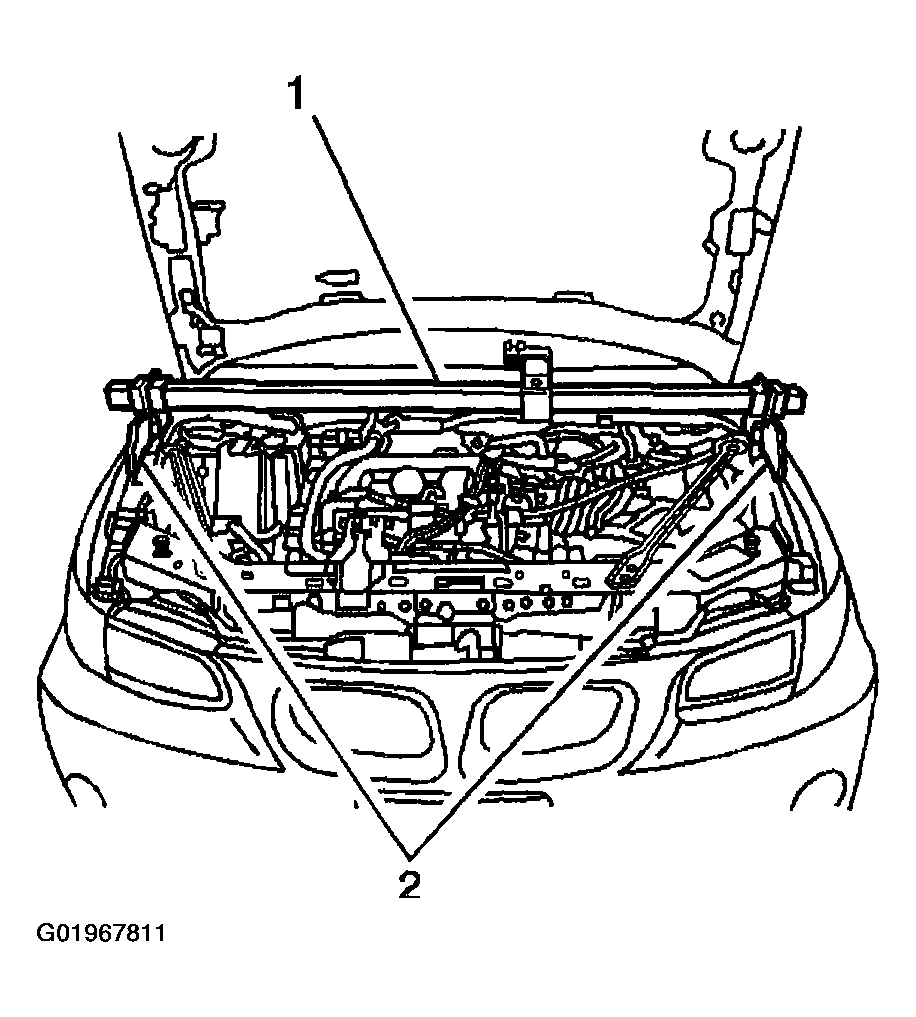

   Fig 1: Installing Engine Support Fixture And Adapters To Fender Rails

   Courtesy of GENERAL MOTORS CORP.
5. Install the J 36462-A  (1) to the cross bar (2).

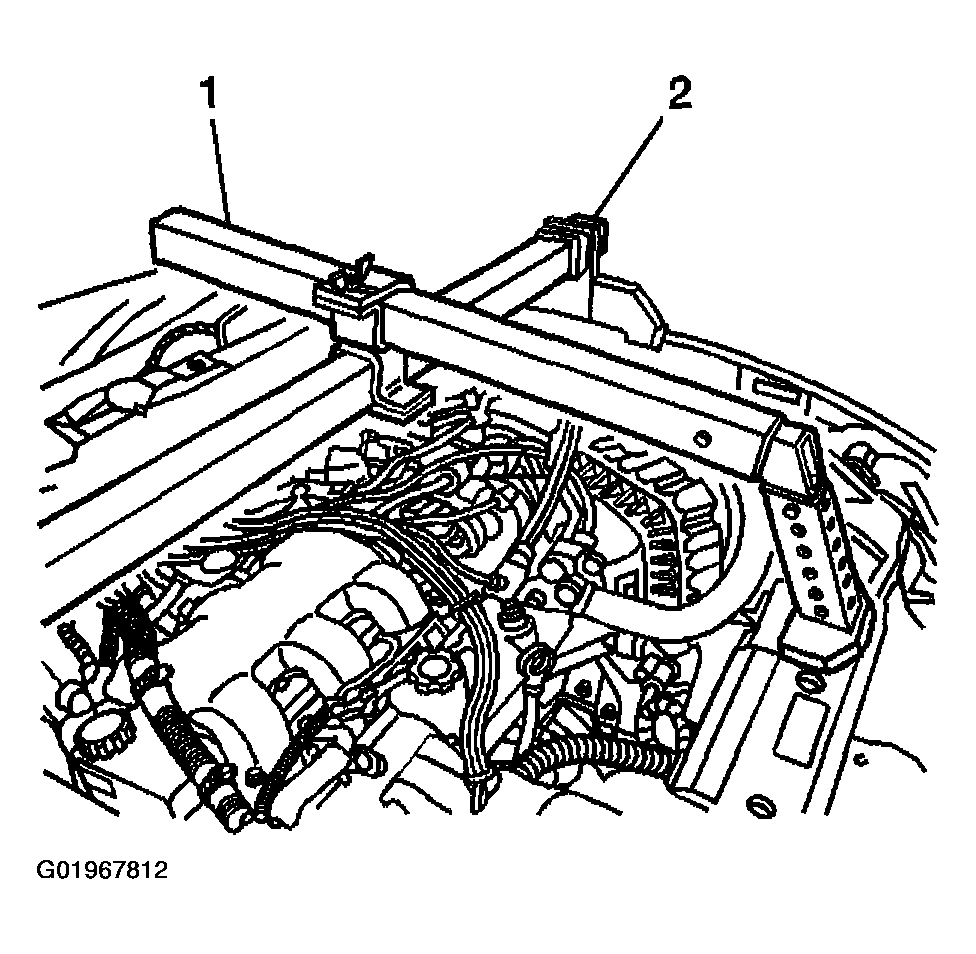

   Fig 2: Installing Engine Support Adapter Leg Set To Cross Bar

   Courtesy of GENERAL MOTORS CORP.
6. Install the support lift hook (1) to the cross bar (2).
7. Install the support hook (1) to the right engine lift hook (3).

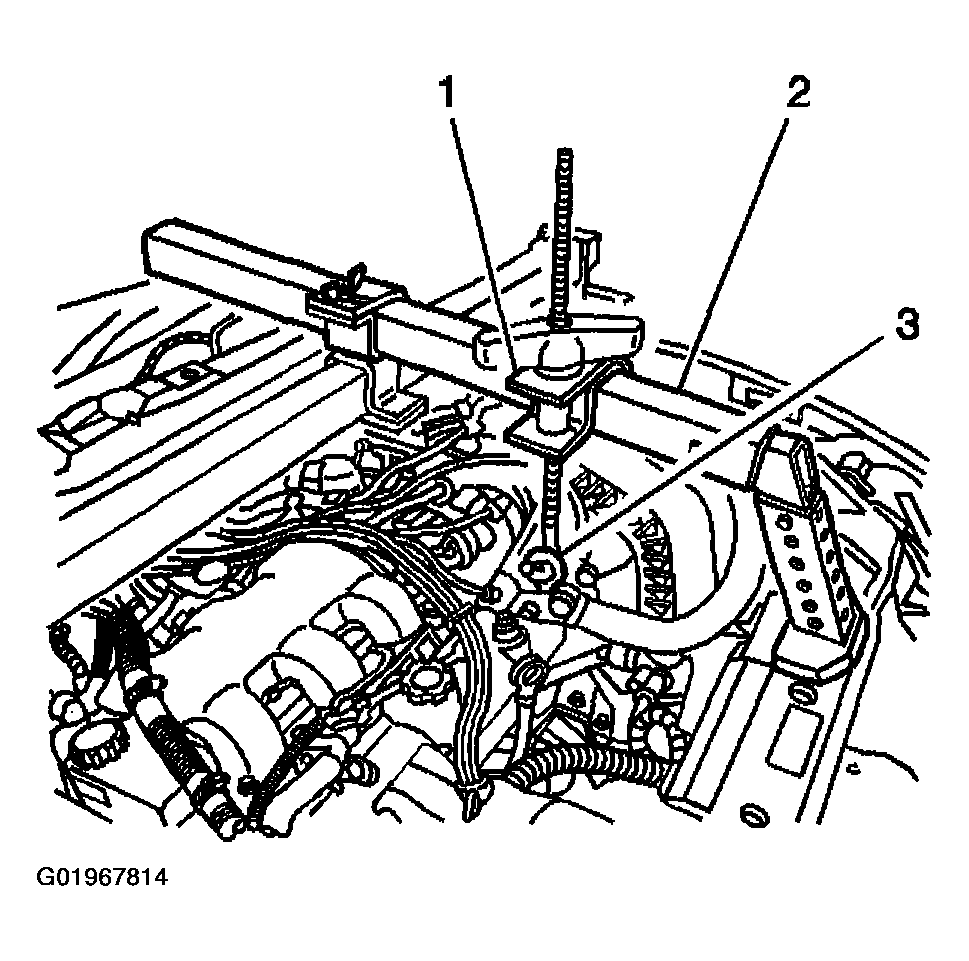

   Fig 3: Installing Support Lift Hook To Cross Bar

   Courtesy of GENERAL MOTORS CORP.

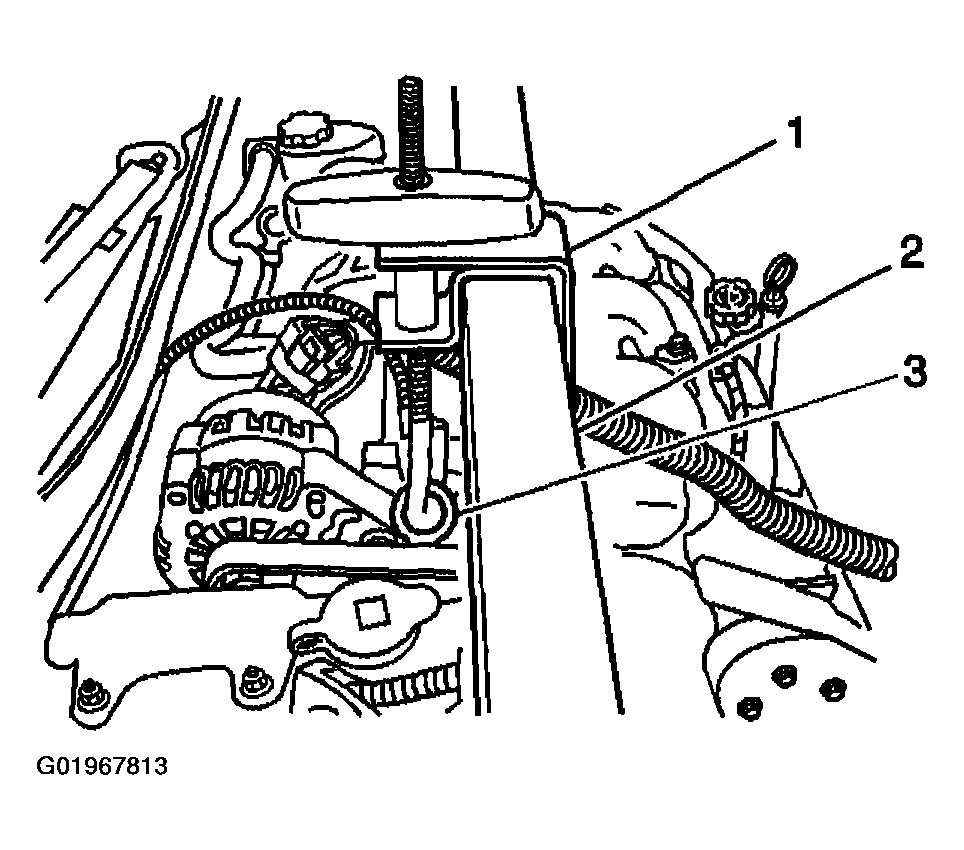

8. Install the support hook (1) to the J 36462-A  (2).
9. Install the support hook (1) to the left engine lift hook (3).
   Fig 4: Installing Support Hook To Engine Support Adapter Leg Set

   Courtesy of GENERAL MOTORS CORP.
10. Raise the engine to release the pressure off of the engine mounts.

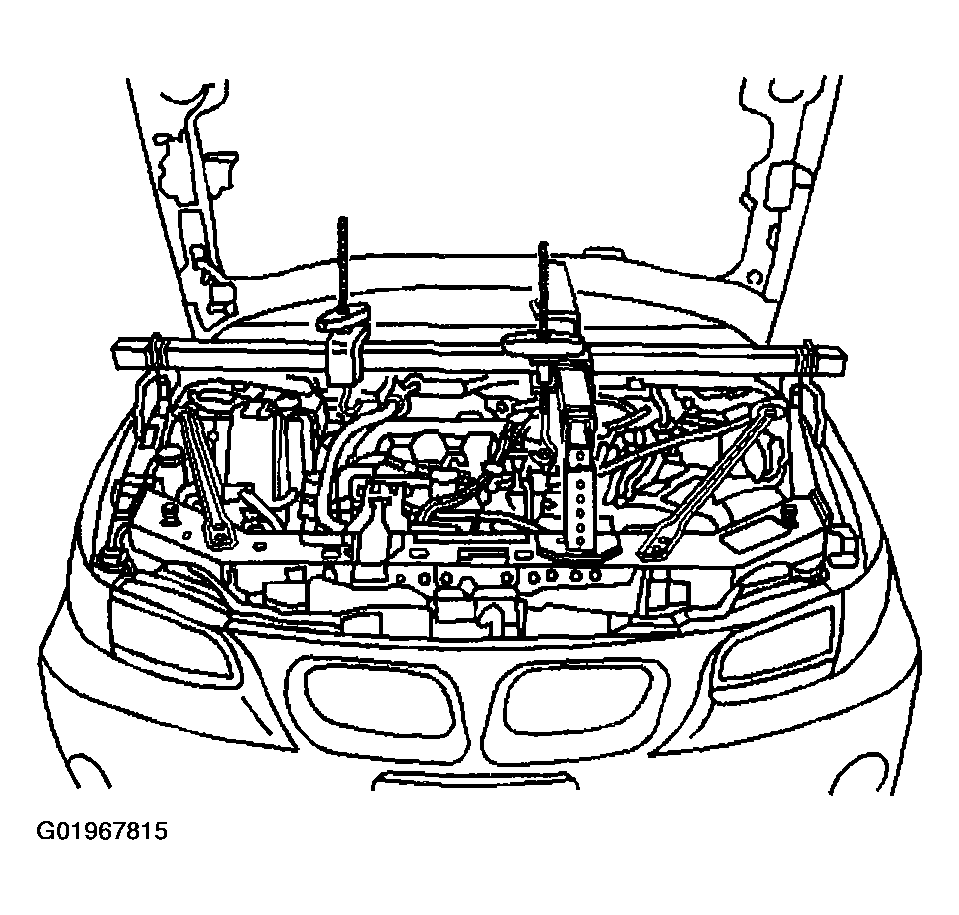

    Fig 5: Raising Engine

    Courtesy of GENERAL MOTORS CORP.
