Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine mount strut.

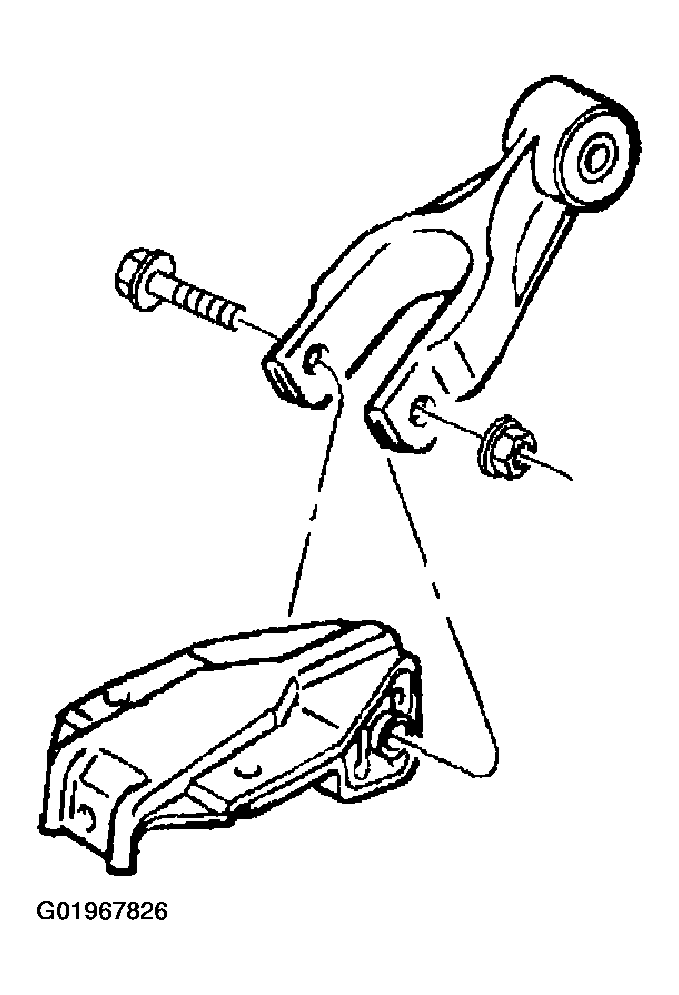

    Fig 1: Installing Engine Mount Strut
    G01967826Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt and the nut to the engine mount strut at the engine mount strut bracket on the upper radiator support.

    Tighten

    Tighten the engine mount strut bolt to 48 N.m (35 lb ft).

  3. Install the bolt and the nut to the engine mount strut and the engine mount strut bracket.

    Tighten

    Tighten the engine mount strut nut to 48 N.m (35 lb ft).

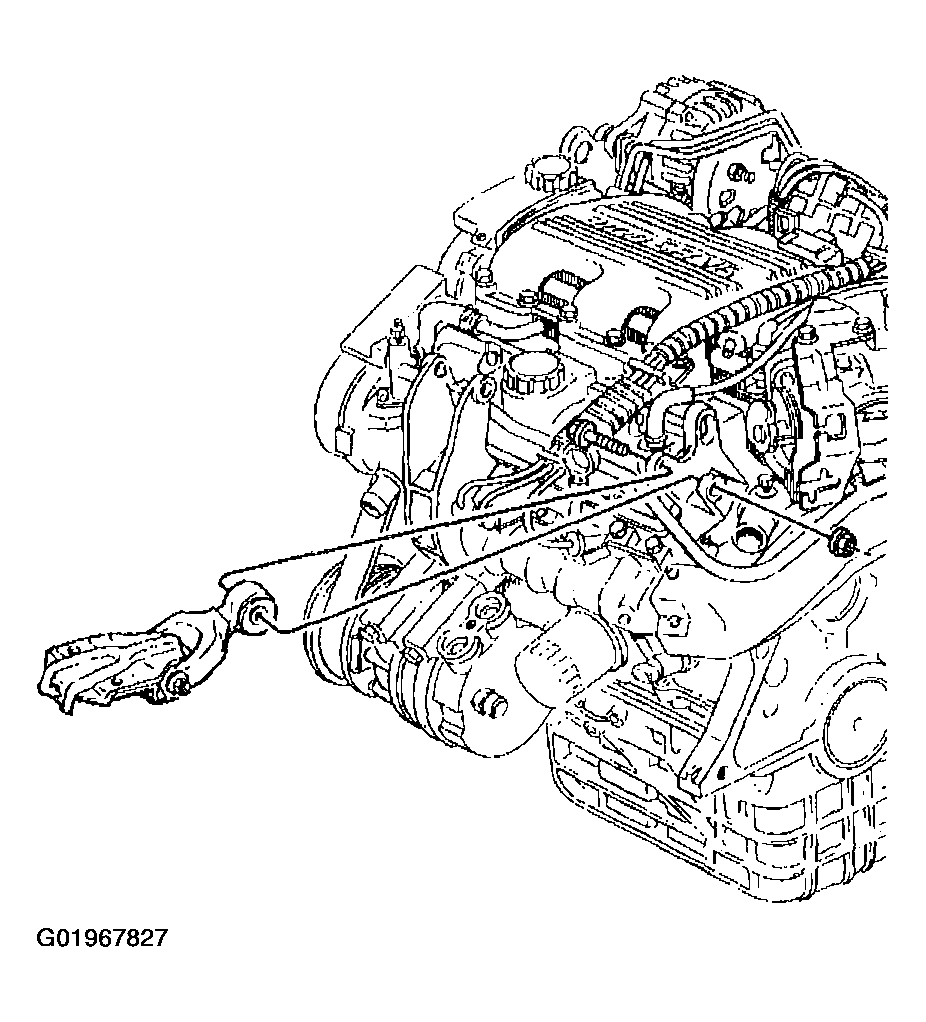

    Fig 2: Installing Engine Mount Strut & Bracket Mounting Bolt & Nut
    G01967827Courtesy of GENERAL MOTORS CORP.
