Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right engine mount strut from the right engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT  .

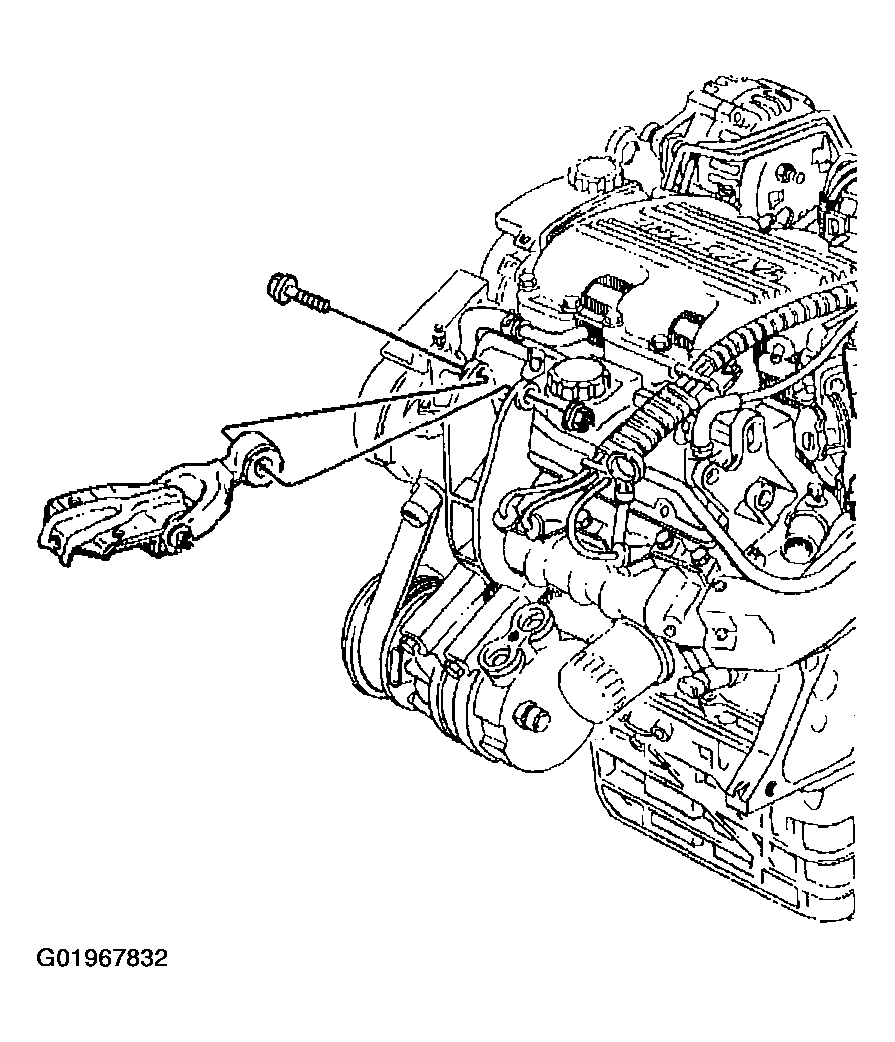

    2. Fig 1: Removing Right Engine Mount Strut From Right Engine Mount Strut Bracket
    G01967832Courtesy of GENERAL MOTORS CORP.
  2. Remove the air conditioning compressor mounting bolts. Refer to COMPRESSOR REPLACEMENT (3.1L) in Heating Ventilation, and Air Conditioning.
  3. Remove and set the air conditioning compressor aside.

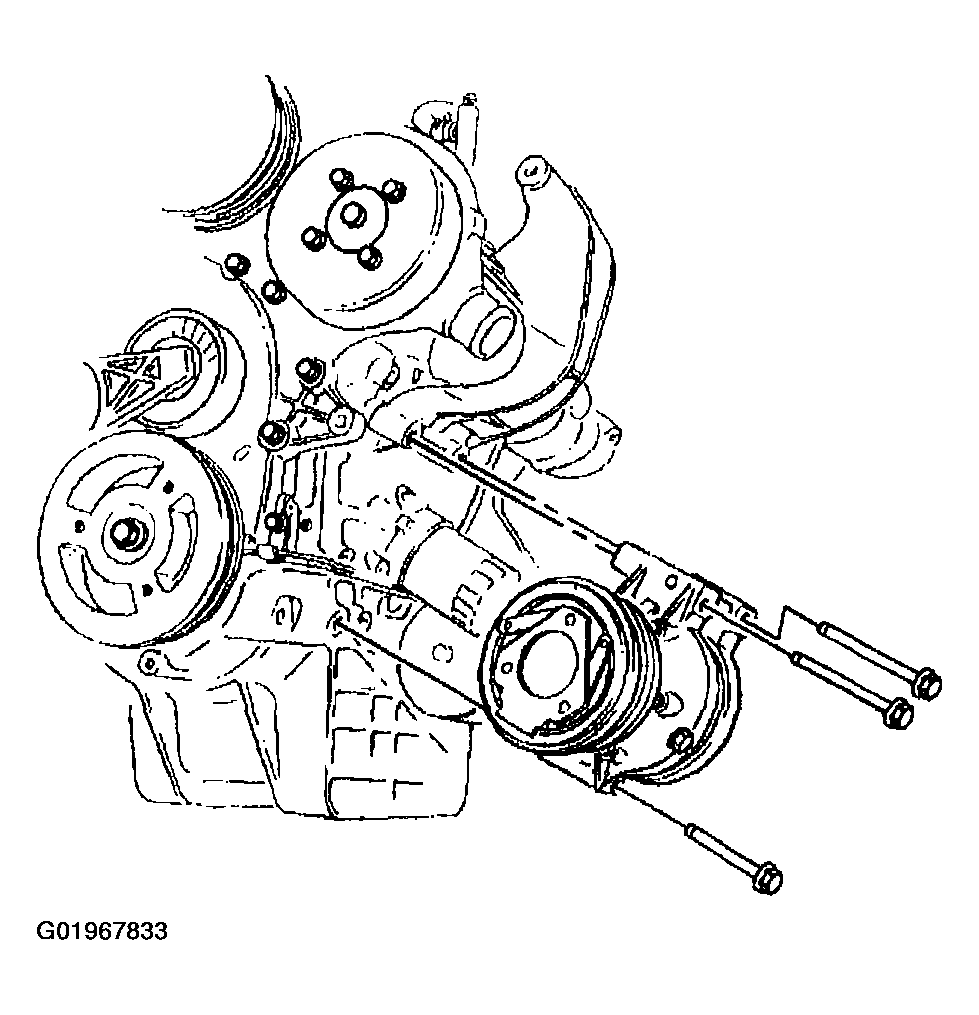

    Fig 2: Removing Air Conditioning Compressor & Mounting Bolts
    G01967833Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts from the right engine mount strut bracket.
  5. Remove the right engine mount strut bracket.
