Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut from the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT  .

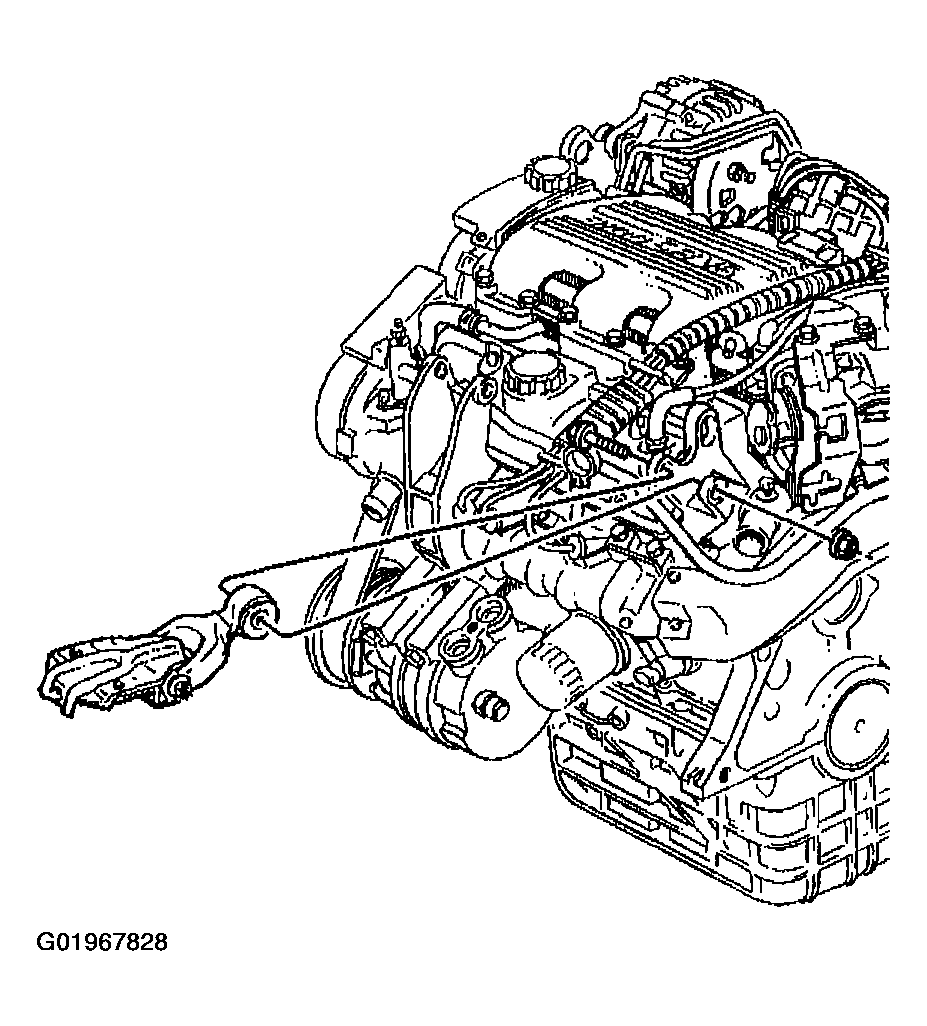

    Fig 1: Removing Engine Mount Strut From Left Engine Mount Strut Bracket
    G01967828Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine mount strut bracket bolts from the left engine mount strut bracket to the cylinder head.
  3. Remove the left engine mount strut bracket.

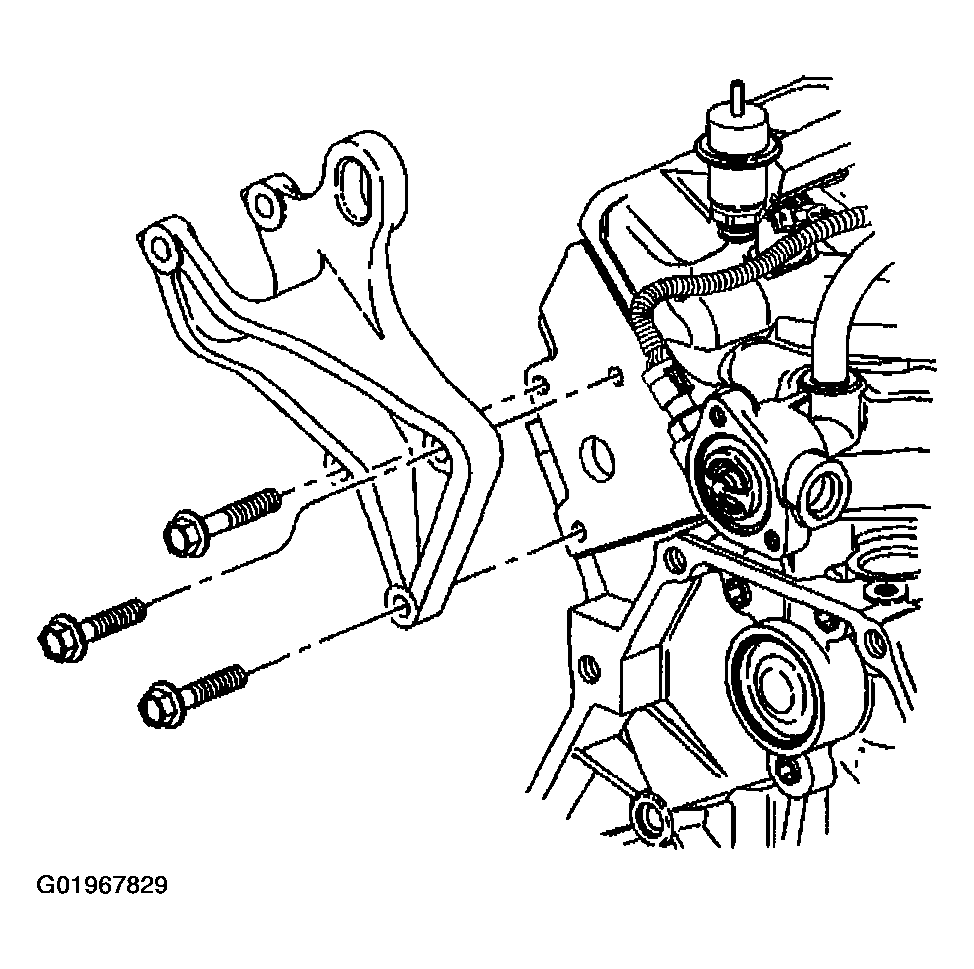

    Fig 2: Removing Left Engine Mount Strut Bracket & Mounting Bolts
    G01967829Courtesy of GENERAL MOTORS CORP.
