Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left engine mount strut bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the engine mount strut bracket bolts through the engine mount strut bracket to the cylinder head.

    Tighten

    Tighten the engine mount strut bracket bolts to 70 N.m (52 lb ft).

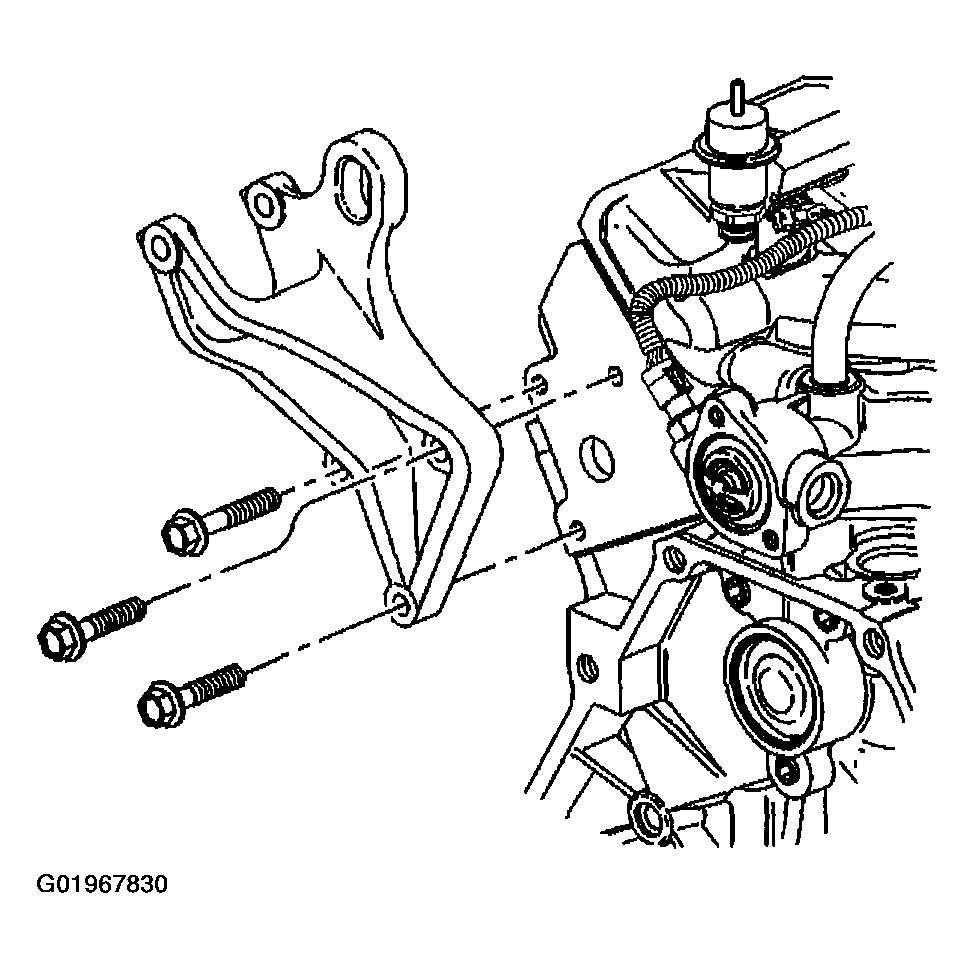

    Fig 1: Installing Left Engine Mount Strut Bracket & Mounting Bolts
    G01967830Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount strut to the left engine mount strut bracket. Refer to ENGINE MOUNT STRUT REPLACEMENT  .
    Fig 2: Installing Engine Mount Strut To Left Engine Mount Strut Bracket
    G01967831Courtesy of GENERAL MOTORS CORP.
