Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount. Refer to ENGINE MOUNT REPLACEMENT  .
  2. Remove the engine mount upper nuts.

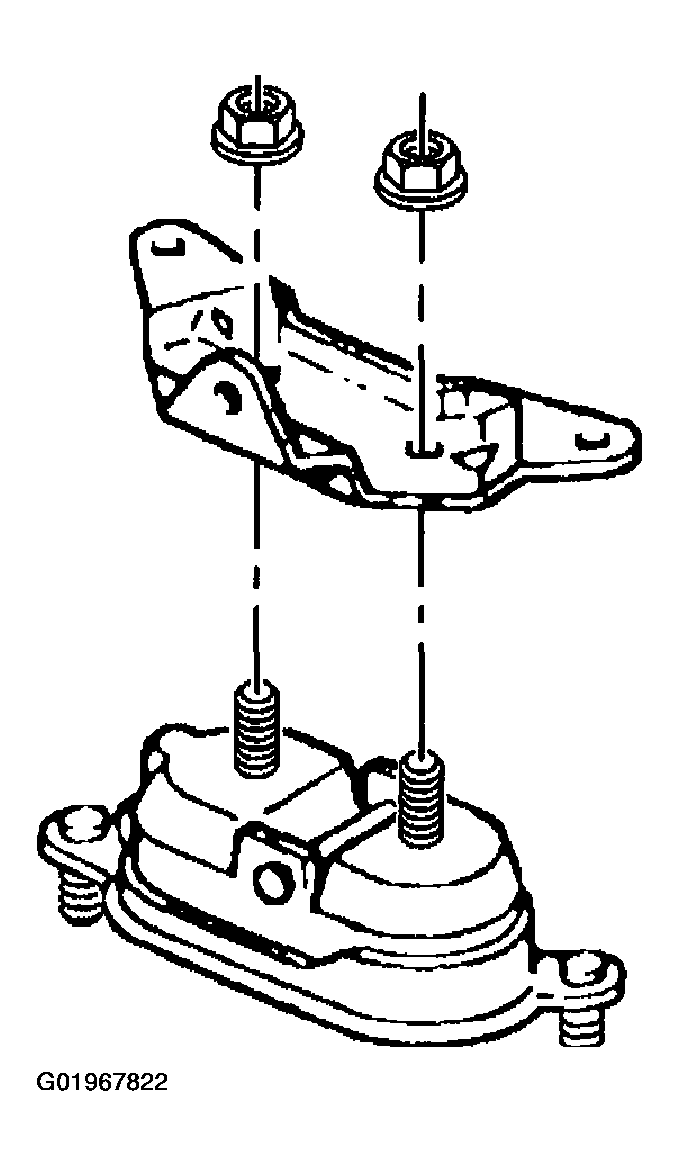

    Fig 1: Removing Engine Mount Bracket & Engine Mount Upper Nuts
    G01967822Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount bracket from the engine mount.
