Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transaxle. Refer to TRANSAXLE (2003) in Removal & Installation - A/T.
  2. Use the J 37096  to secure the flywheel in order to prevent the crankshaft from rotating.

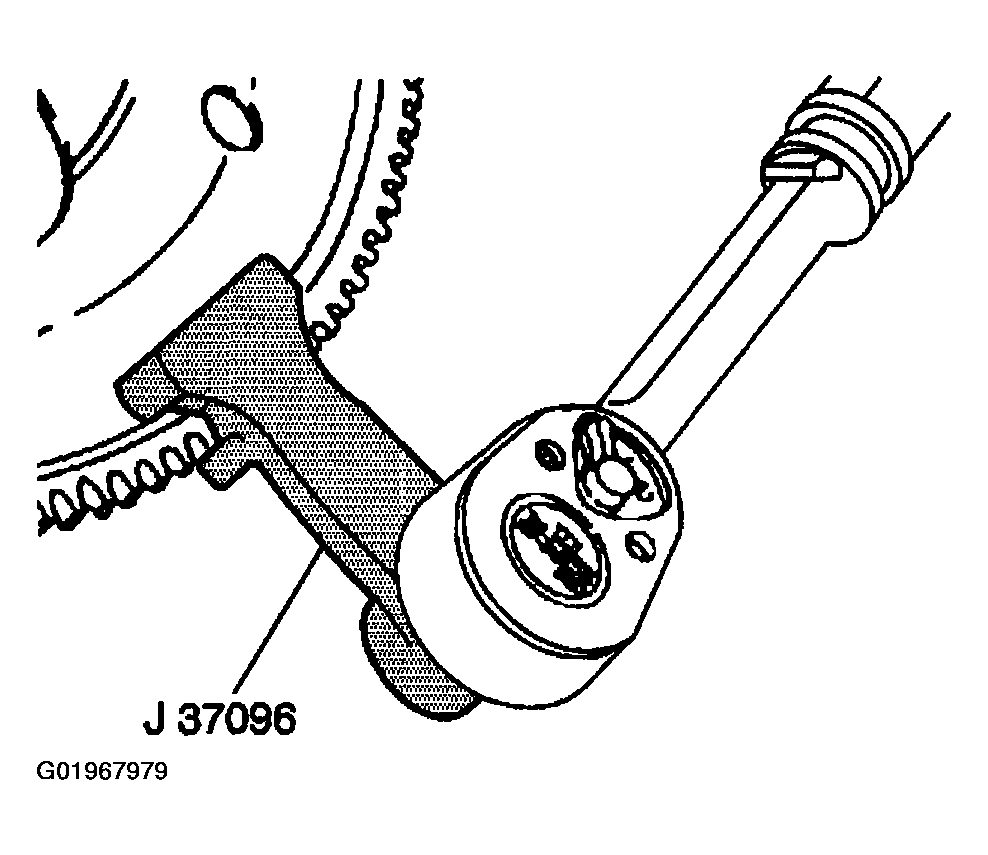

    Fig 1: Securing Flywheel Using J 37096
    G01967979Courtesy of GENERAL MOTORS CORP.
  3. Loosen the 6 flywheel bolts.
  4. Remove 5 of the 6 flywheel bolts leaving 1 bolt at the top of the crankshaft rotation.

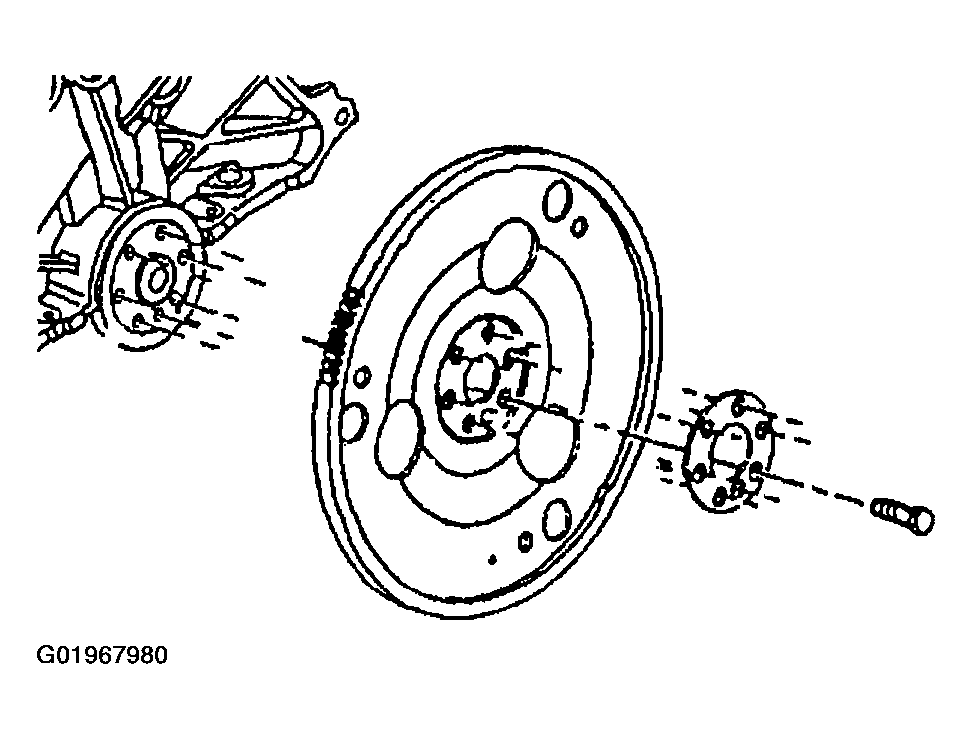

    Fig 2: Removing Engine Flywheel Retainer, Bolts & Flywheel
    G01967980Courtesy of GENERAL MOTORS CORP.
  5. Grip the flywheel and remove the remaining bolt. Do not drop the flywheel when removing the final bolt.
  6. Remove the engine flywheel retainer and the flywheel.
  7. Clean the engine flywheel bolt threads and bolt holes.
