Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
  2. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT  .
  3. Remove the drive belt tensioner bolt.

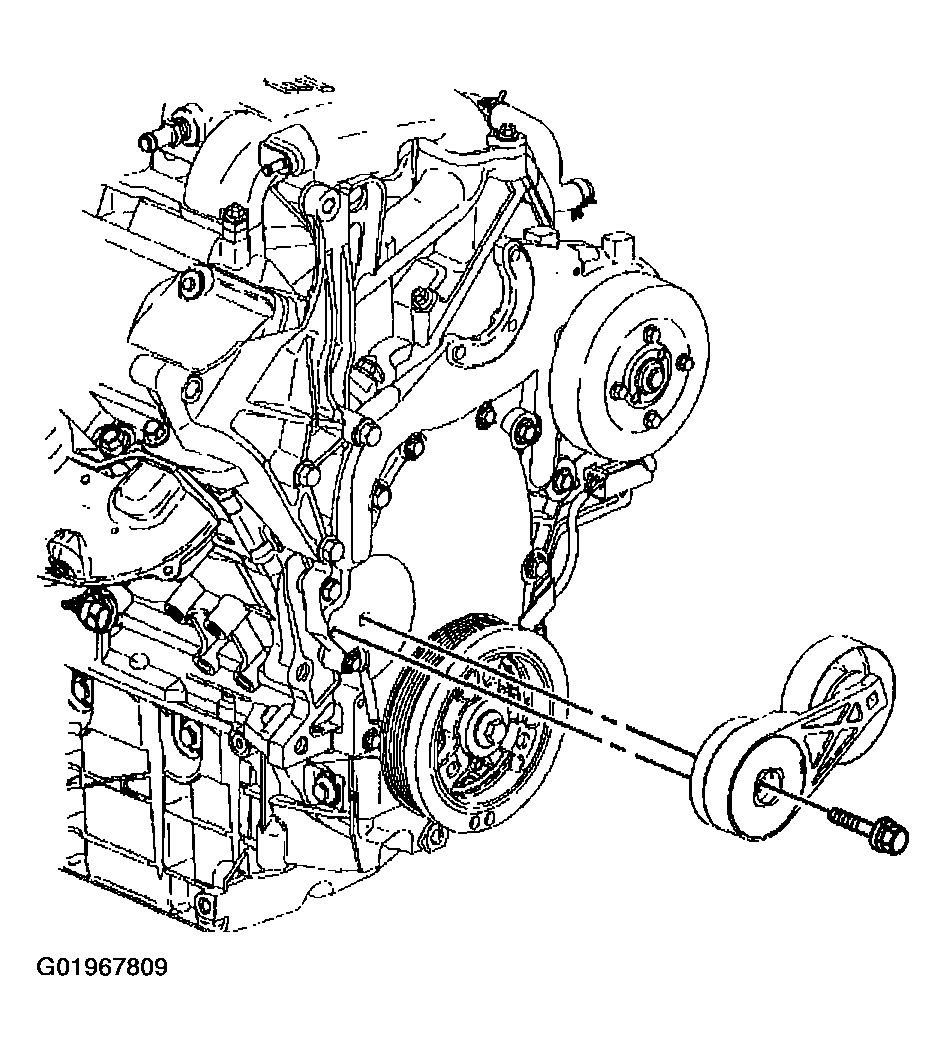

    Fig 1: Removing Drive Belt Tensioner & Bolt
    G01967809Courtesy of GENERAL MOTORS CORP.
  4. Remove the drive belt tensioner.
