Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt tensioner by lifting or rotating the drive belt tensioner off of the drive belt, using a 3/8 inch breaker bar (1).

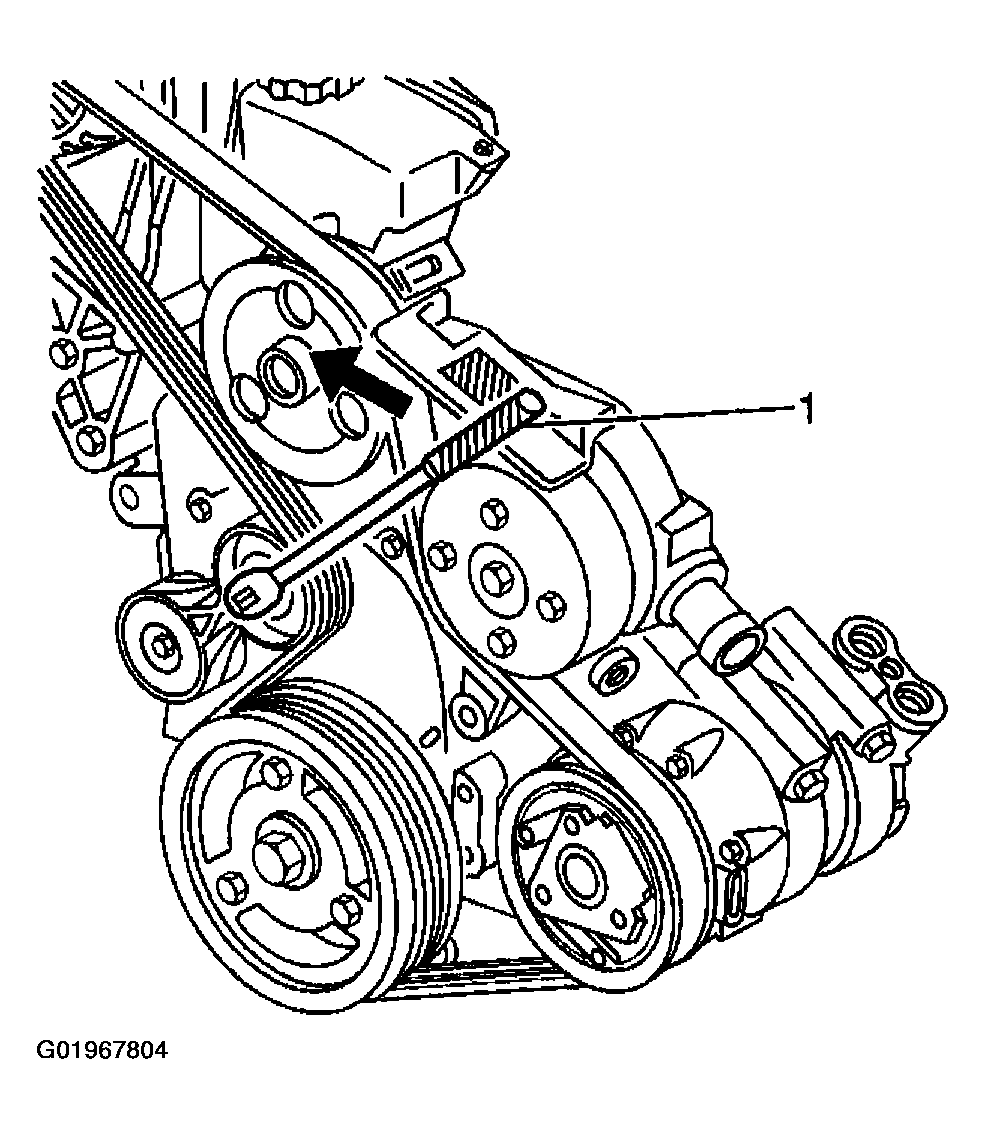

    Fig 1: Rotating Drive Belt Tensioner Using 3/8 Inch Breaker Bar
    G01967804Courtesy of GENERAL MOTORS CORP.
  2. Remove the drive belt.

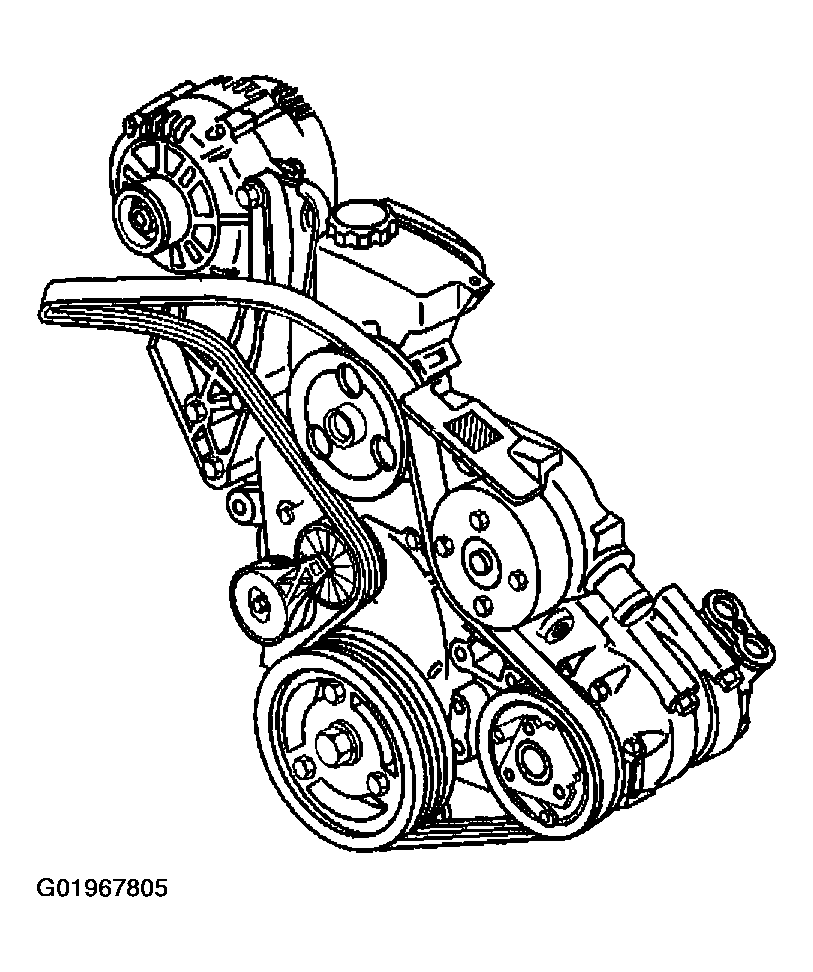

    Fig 2: Removing Drive Belt
    G01967805Courtesy of GENERAL MOTORS CORP.
