Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt.

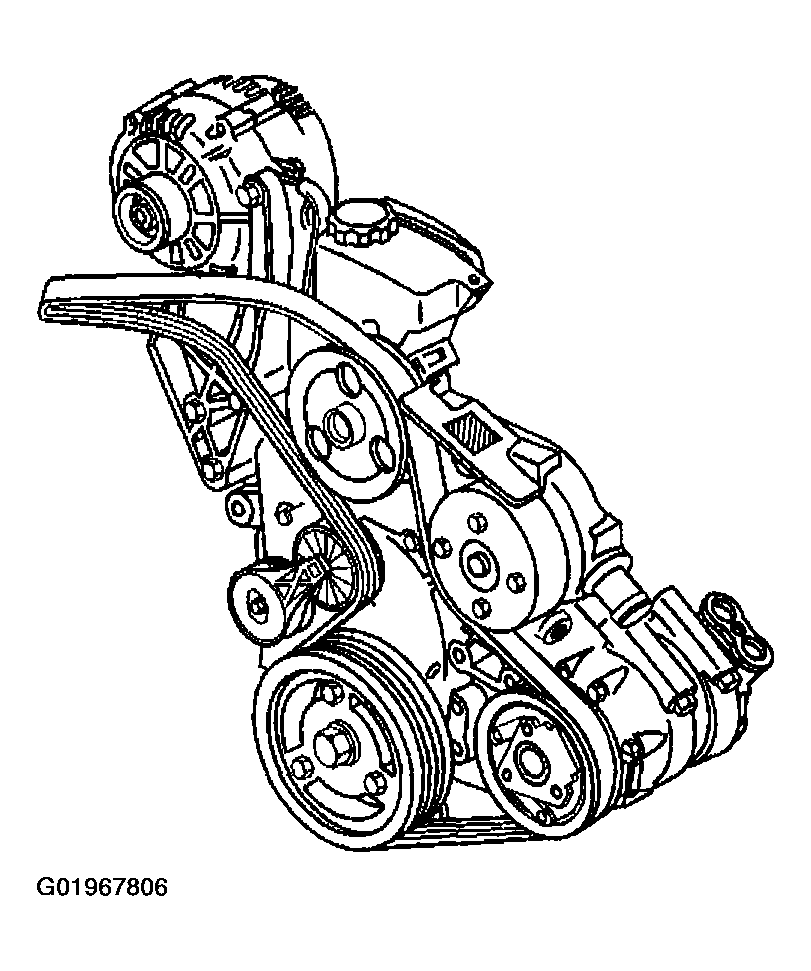

    Fig 1: Drive Belt Routing
    G01967806Courtesy of GENERAL MOTORS CORP.
  2. Inspect the drive belt and the drive belt system. Refer to DRIVE BELT EXCESSIVE WEAR DIAGNOSIS  .
    IMPORTANT: Make sure that the drive belt is aligned into the proper grooves of the accessory drive belt pulleys.
  3. Install the drive belt under the drive belt tensioner pulley by lifting or rotating the drive belt tensioner, using a 3/8 inch breaker bar (1).

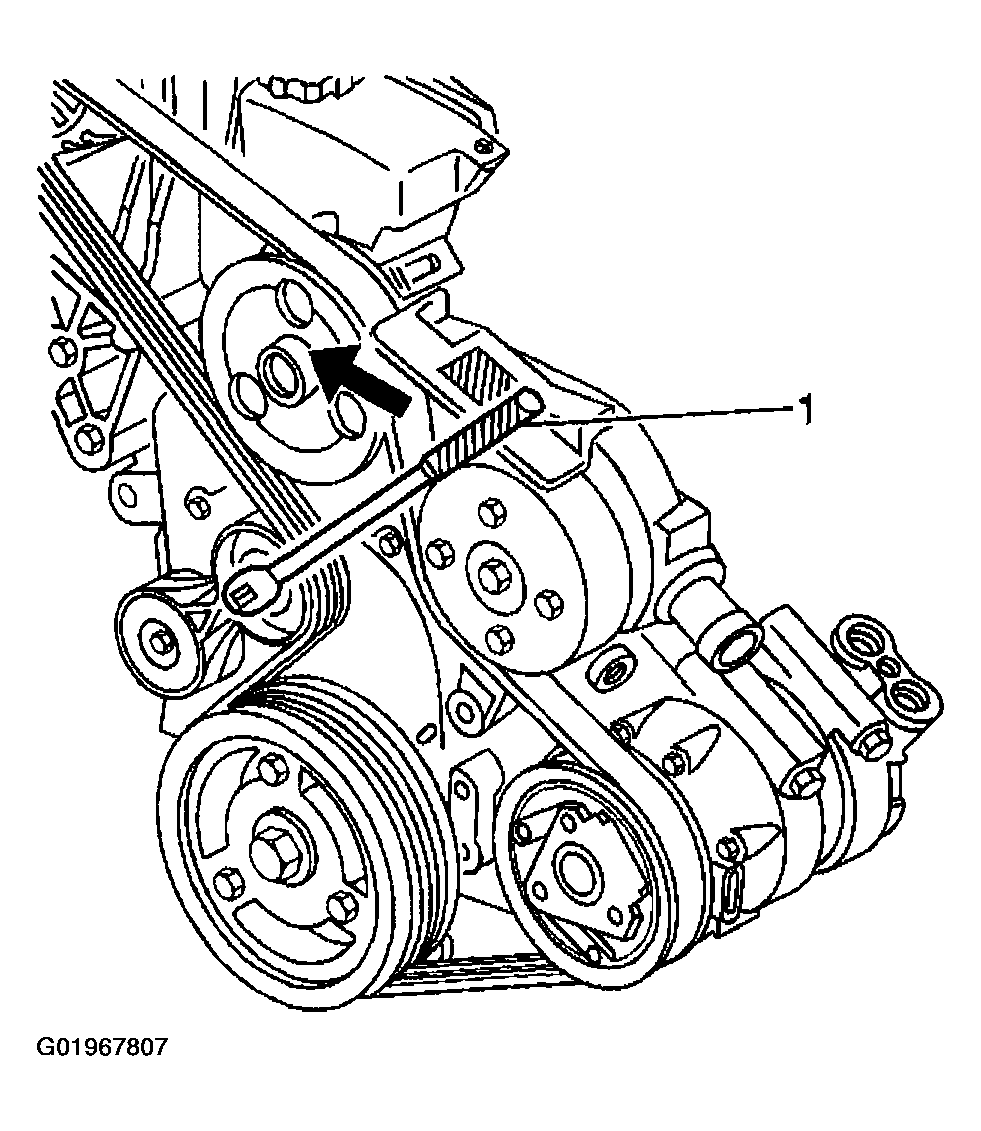

    Fig 2: Rotating Drive Belt Tensioner Using 3/8 Inch Breaker Bar
    G01967807Courtesy of GENERAL MOTORS CORP.
  4. Ensure that the drive belt is properly routed.

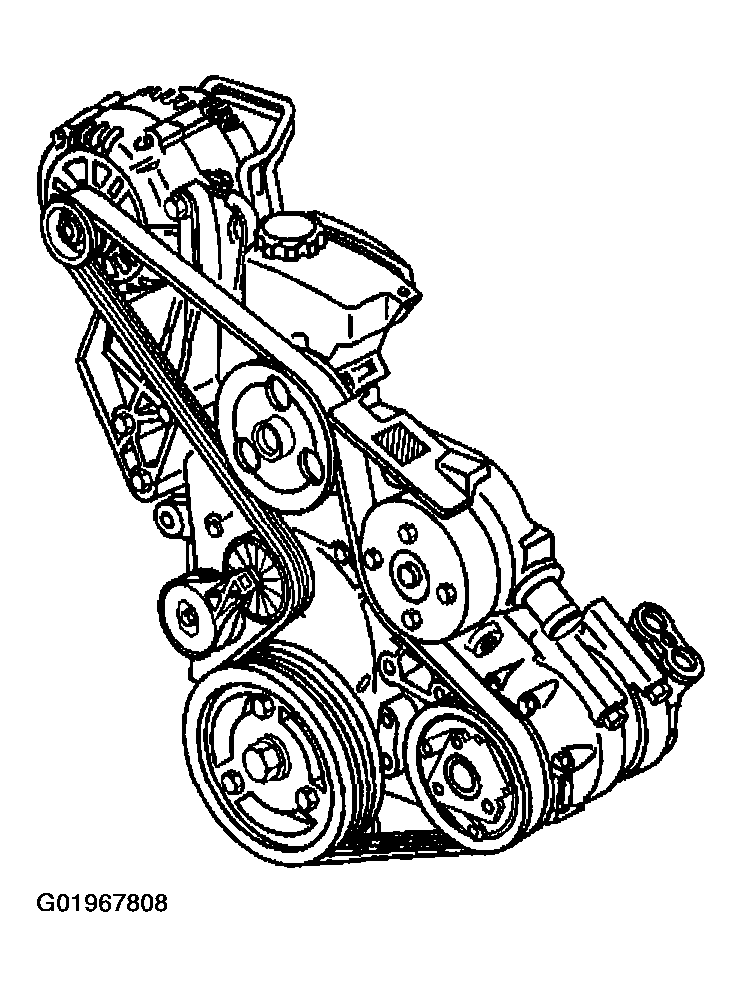

    Fig 3: View Of Proper Drive Belt Routing
    G01967808Courtesy of GENERAL MOTORS CORP.
  5. Inspect the drive belt length scale on the drive belt tensioner for the proper installed length.
