Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the camshaft rear bearing hole plug with sealer. Use sealer GM P/N 12377901 (Canadian P/N 10953504) or the equivalent.
  2. Install the camshaft rear bearing hole plug.

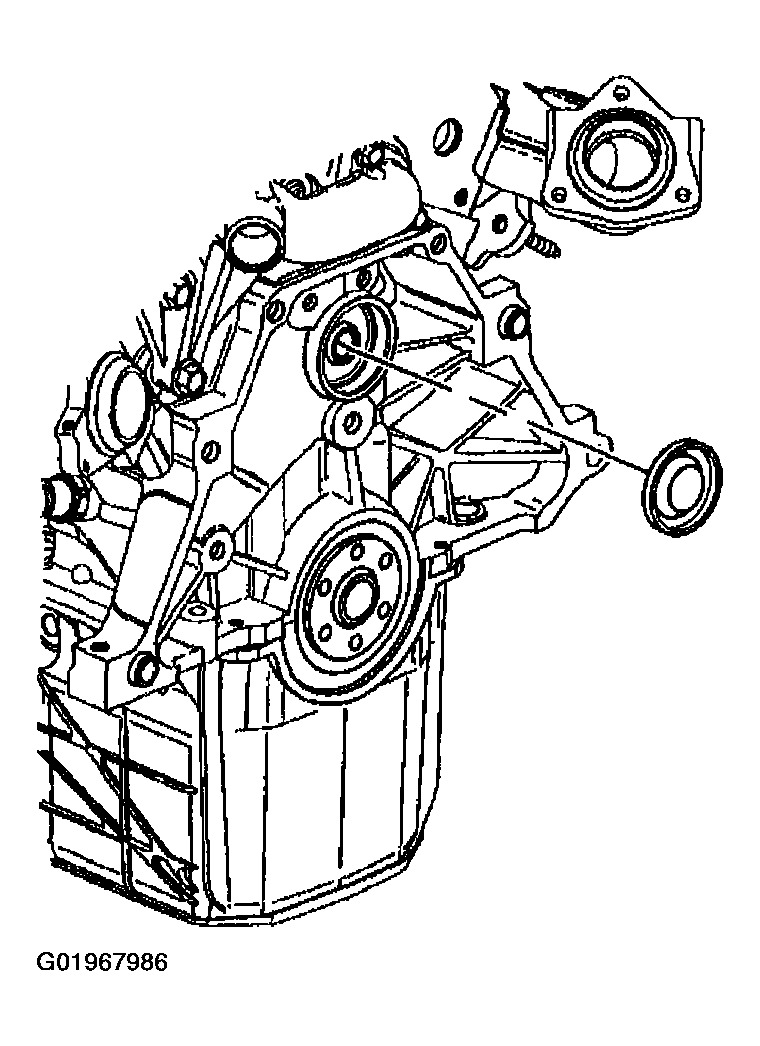

    Fig 1: Installing Camshaft Rear Bearing Hole Plug
    G01967986Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the camshaft rear bearing plug is installed to specifications.
  4. Install the engine flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT  .
    Fig 2: View Of Proper Camshaft Rear Bearing Plug Installation
    G01967987Courtesy of GENERAL MOTORS CORP.
