Water Outlet and Thermostat Removal

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water outlet bolts.
  2. Remove the water outlet.

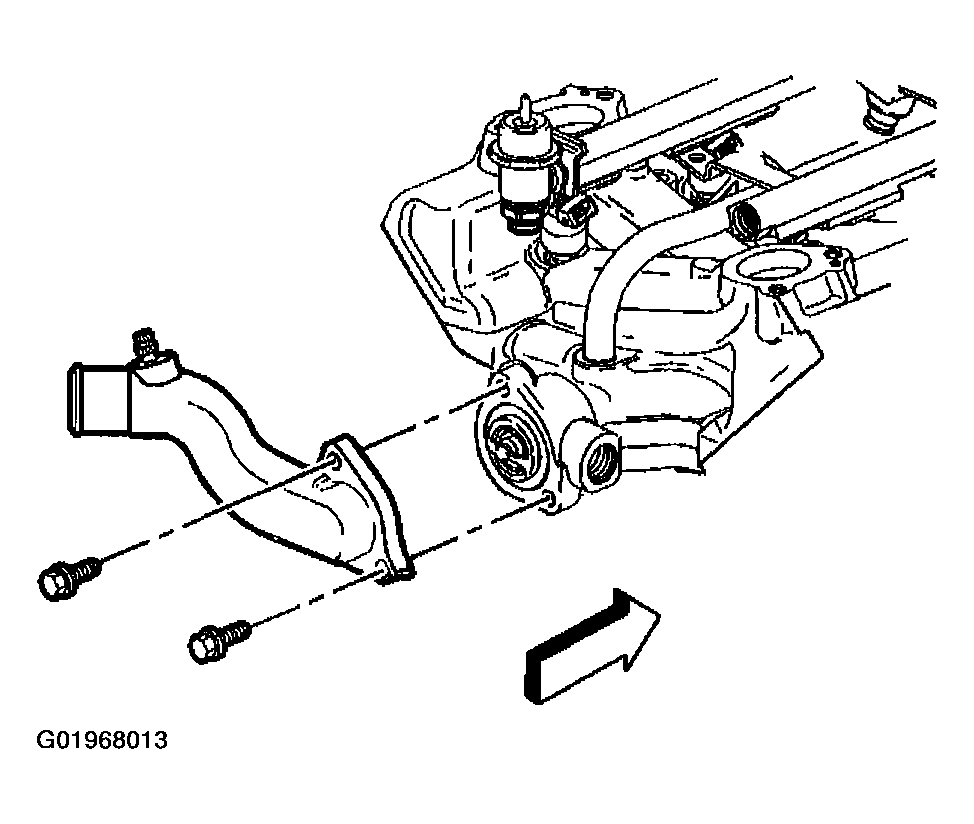

    Fig 1: Removing Water Outlet & Bolts
    G01968013Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat.

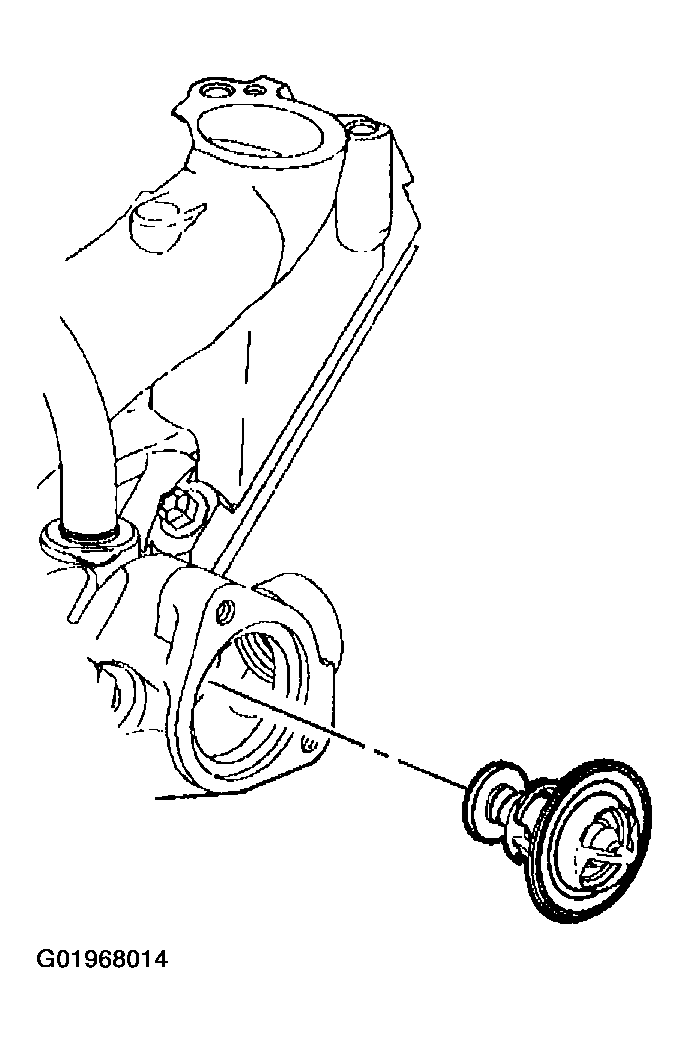

    Fig 2: Removing Thermostat
    G01968014Courtesy of GENERAL MOTORS CORP.
