Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires.
  2. Remove the spark plugs.
  3. Remove the exhaust manifold heat shield bolts.
  4. Remove the exhaust manifold heat shield.

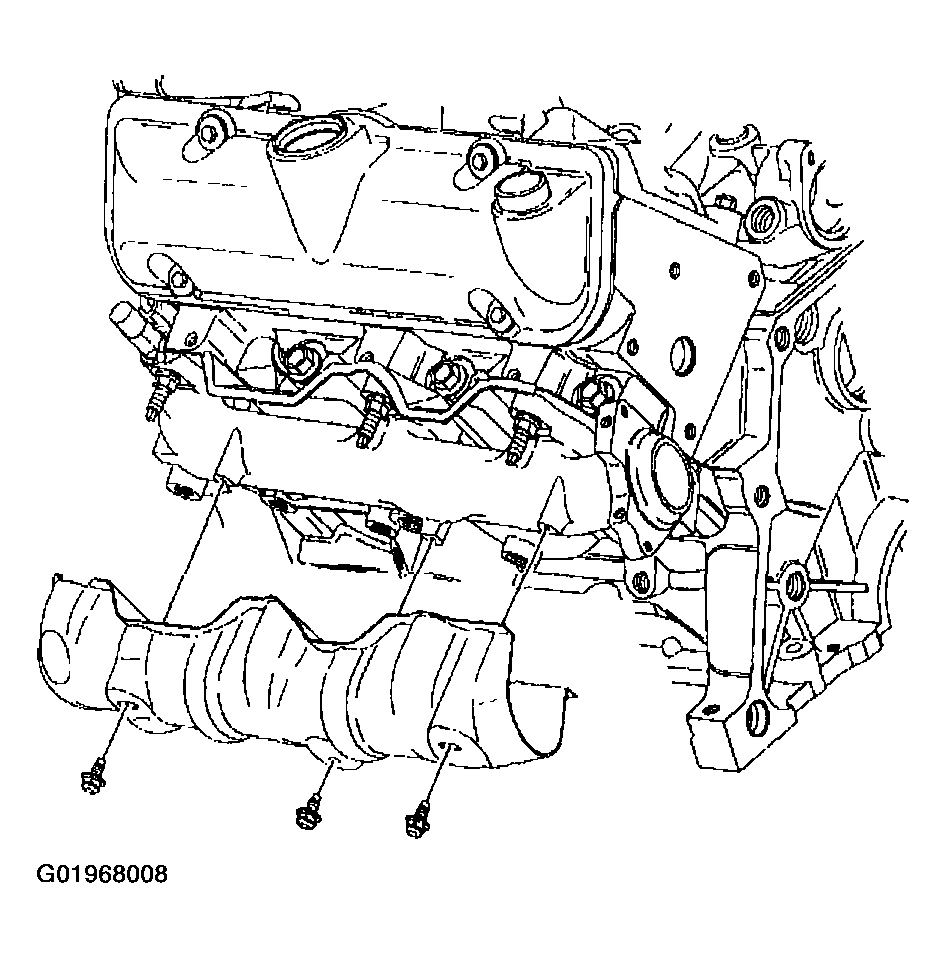

    Fig 1: Removing Left Exhaust Manifold Heat Shield & Bolts
    G01968008Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust manifold nuts.

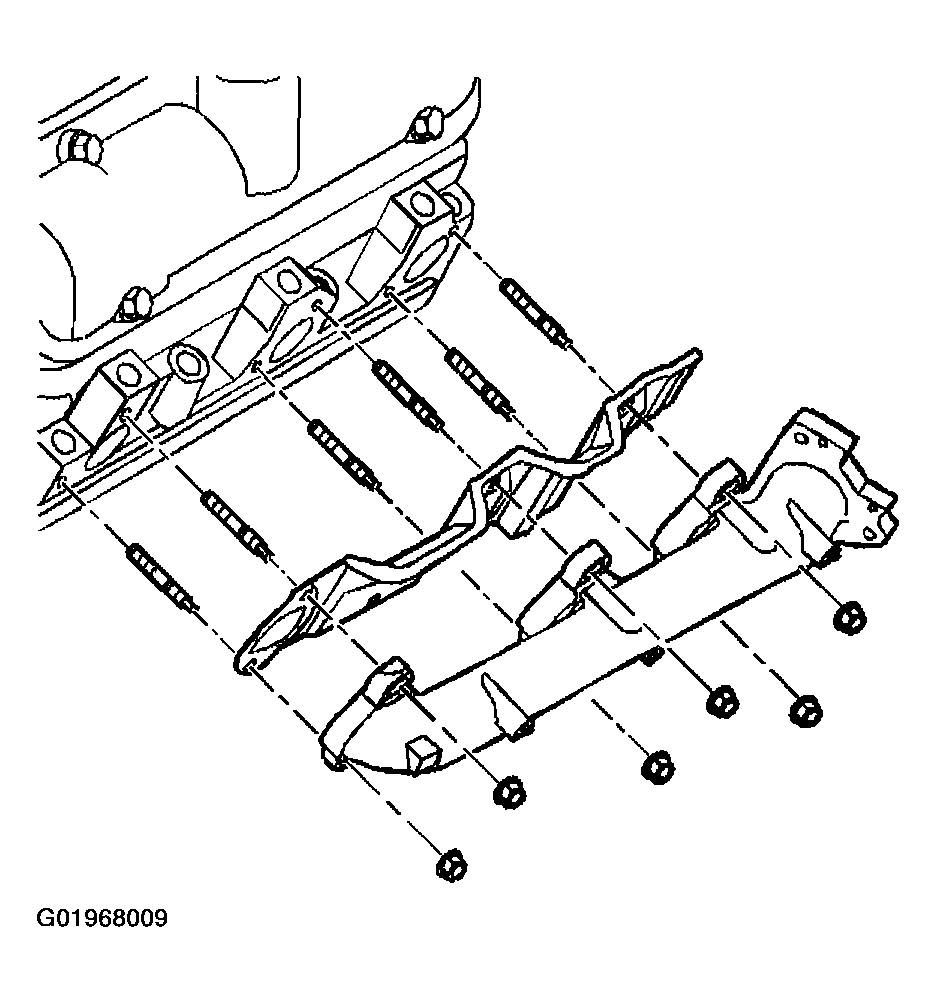

    Fig 2: Removing Left Exhaust Manifold, Studs, Nuts & Gasket
    G01968009Courtesy of GENERAL MOTORS CORP.
  6. Remove the exhaust manifold.
  7. Remove the exhaust manifold gasket.
  8. Remove the exhaust studs, if required.
