Exhaust Manifold Cleaning and Inspection

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the exhaust manifold mating surface for flatness.

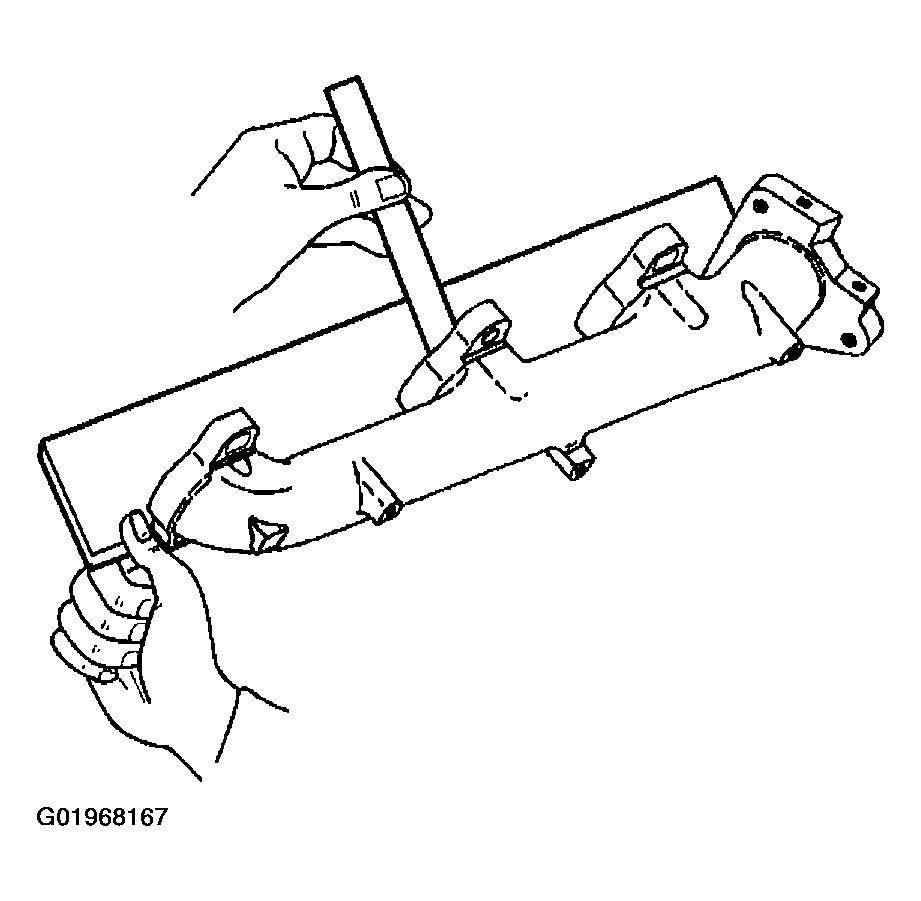

    Fig 1: Inspecting Exhaust Manifold
    G01968167Courtesy of GENERAL MOTORS CORP.
  2. Inspect the exhaust manifold for cracks or damage.

    Replace the exhaust manifold if necessary.
