Engine Flywheel Removal

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel bolts.
  2. Remove the flywheel retainer.
  3. Remove the flywheel.

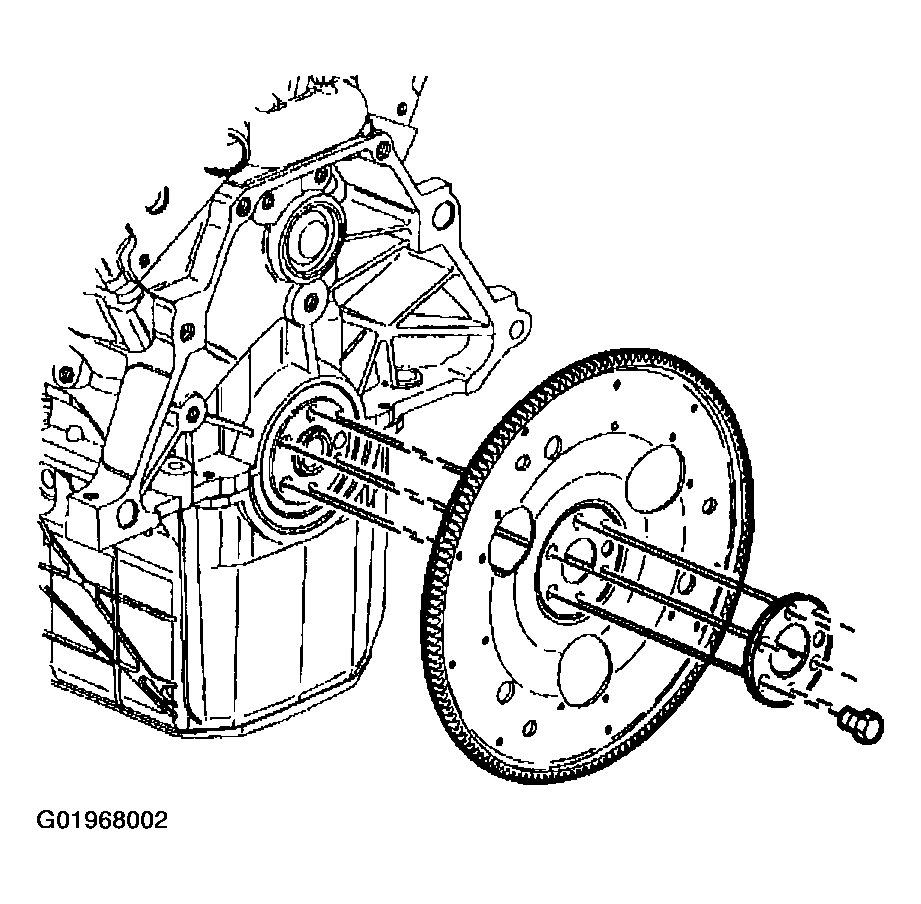

    Fig 1: Removing Flywheel, Retainer & Bolts
    G01968002Courtesy of GENERAL MOTORS CORP.
