Drive Belt Tensioner Installation

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the drive belt tensioner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the drive belt tensioner bolt.

    Tighten

    Tighten the drive belt tensioner bolt to 50 N.m (37 lb ft).

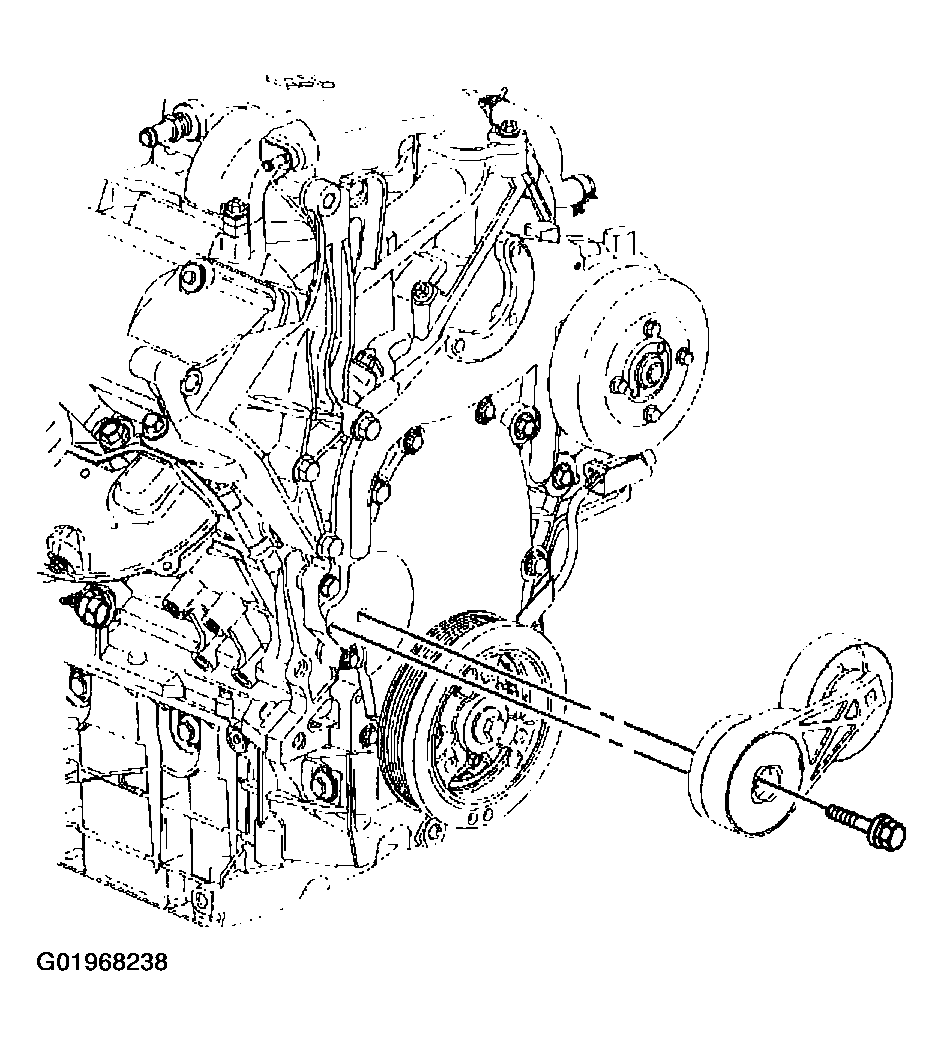

    Fig 1: Installing Drive Belt Tensioner & Bolt
    G01968238Courtesy of GENERAL MOTORS CORP.
