Cylinder Head Removal - Left

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cylinder head bolts.

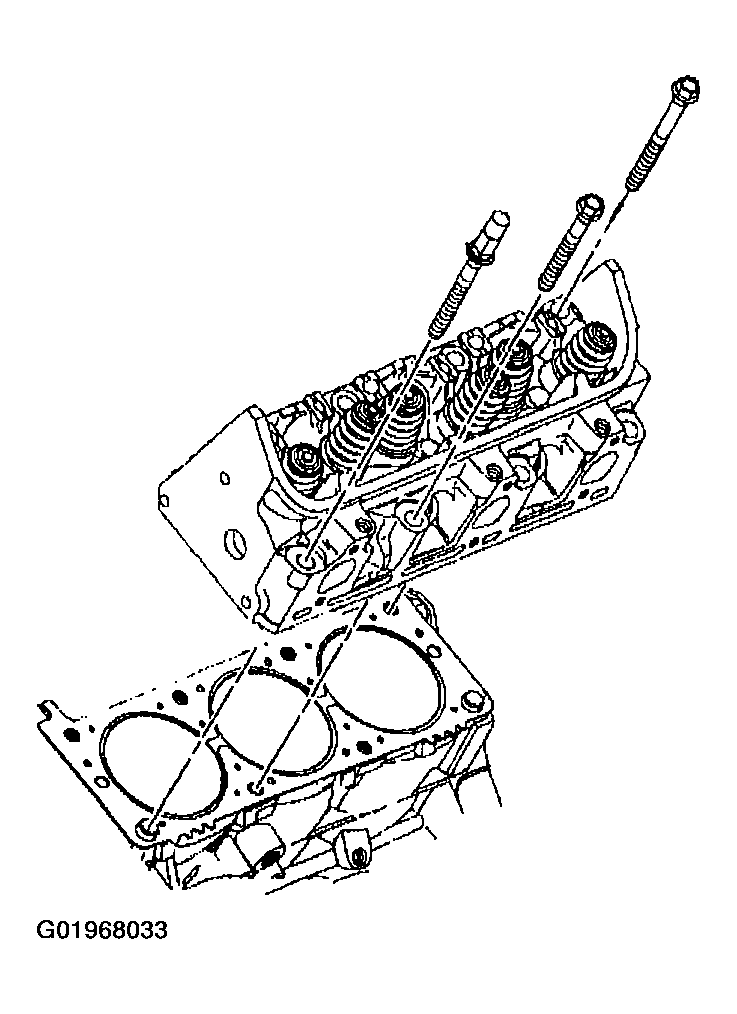

Fig 1: Removing Left Cylinder Head & Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the cylinder head.
Remove the cylinder head gasket.

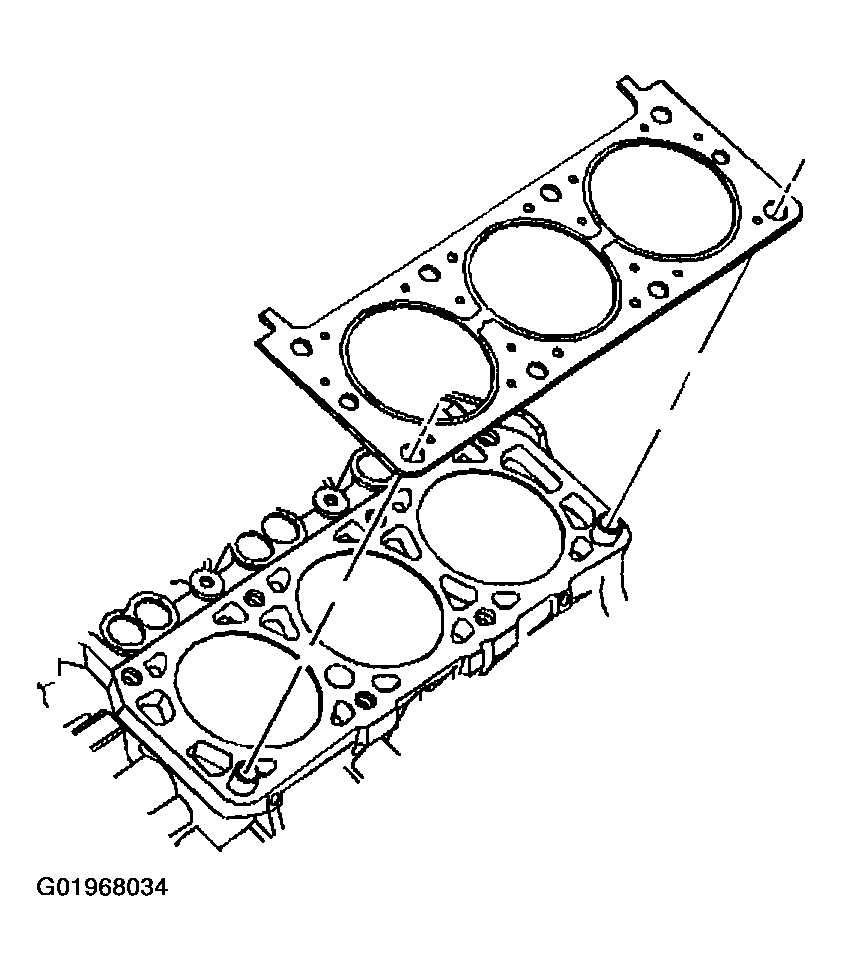

Fig 2: Removing Left Cylinder Head Gasket
Courtesy of GENERAL MOTORS CORP.
Remove the dowel pins - cylinder head locator, if required.
