Crankshaft Balancer Removal

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 24420-C Harmonic Balancer Puller. See Special Tools and Equipment .

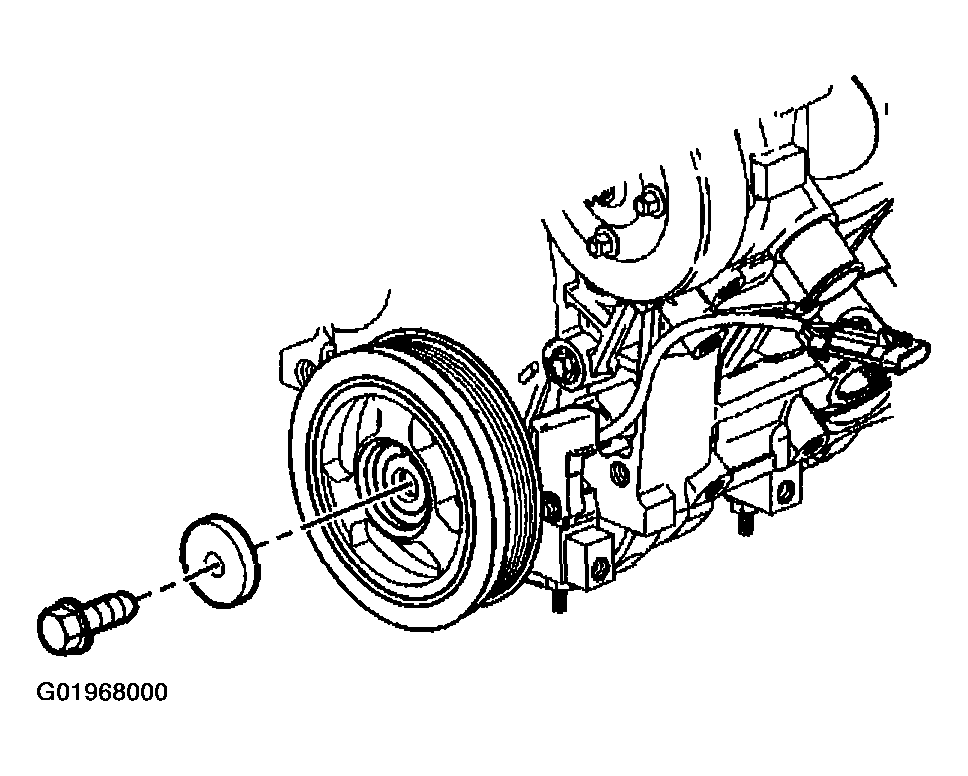

Remove the crankshaft balancer retaining bolt and washer.

Fig 1: Removing Crankshaft Balancer Retaining Bolt & Washer
Courtesy of GENERAL MOTORS CORP.

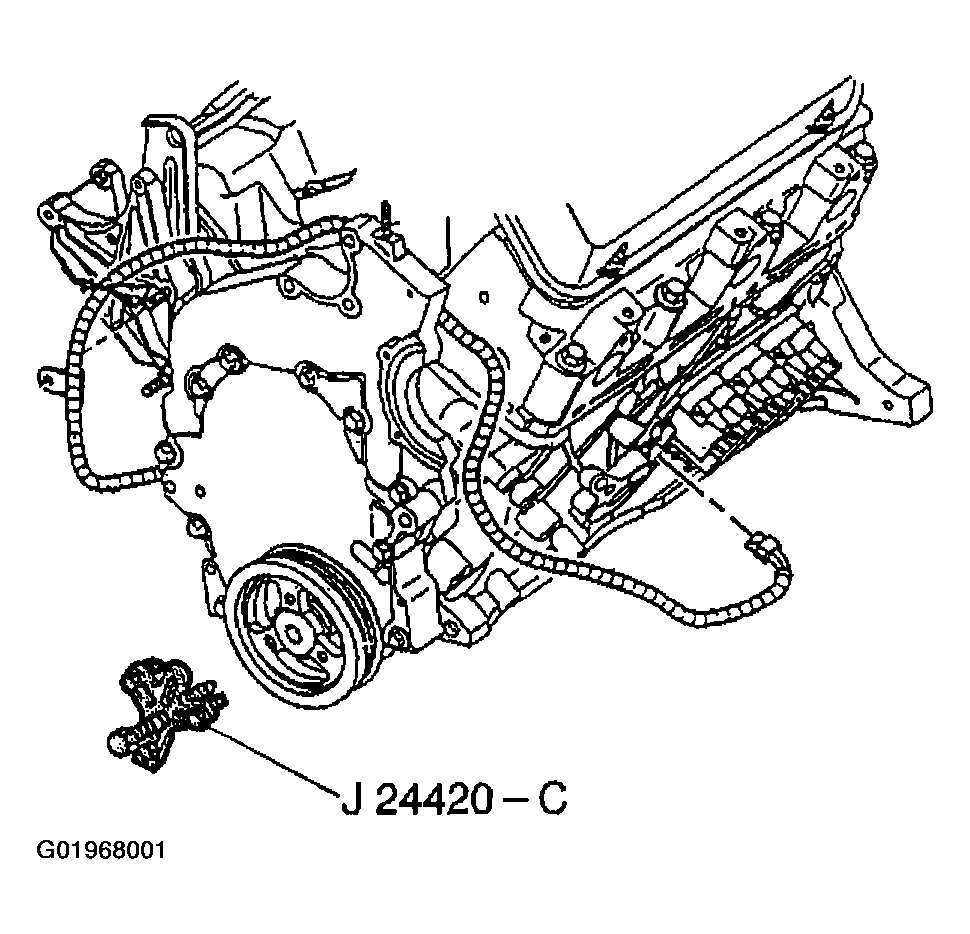

Remove the crankshaft balancer using the J 24420-C .

Fig 2: Removing Crankshaft Balancer
Courtesy of GENERAL MOTORS CORP.
