Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Brake Fluid Irritant Caution in Cautions and Notices.
NOTE: Refer to Brake Fluid Effects on Paint and Electrical Components Notice in Cautions and Notices.
  1. Turn the Ignition switch to the OFF position.
  2. Remove the two BPMV mounting bracket nuts (3) and one bolt located near the bottom and one nut (1) located at the top of the BPMV mounting bracket (4) to the strut tower.

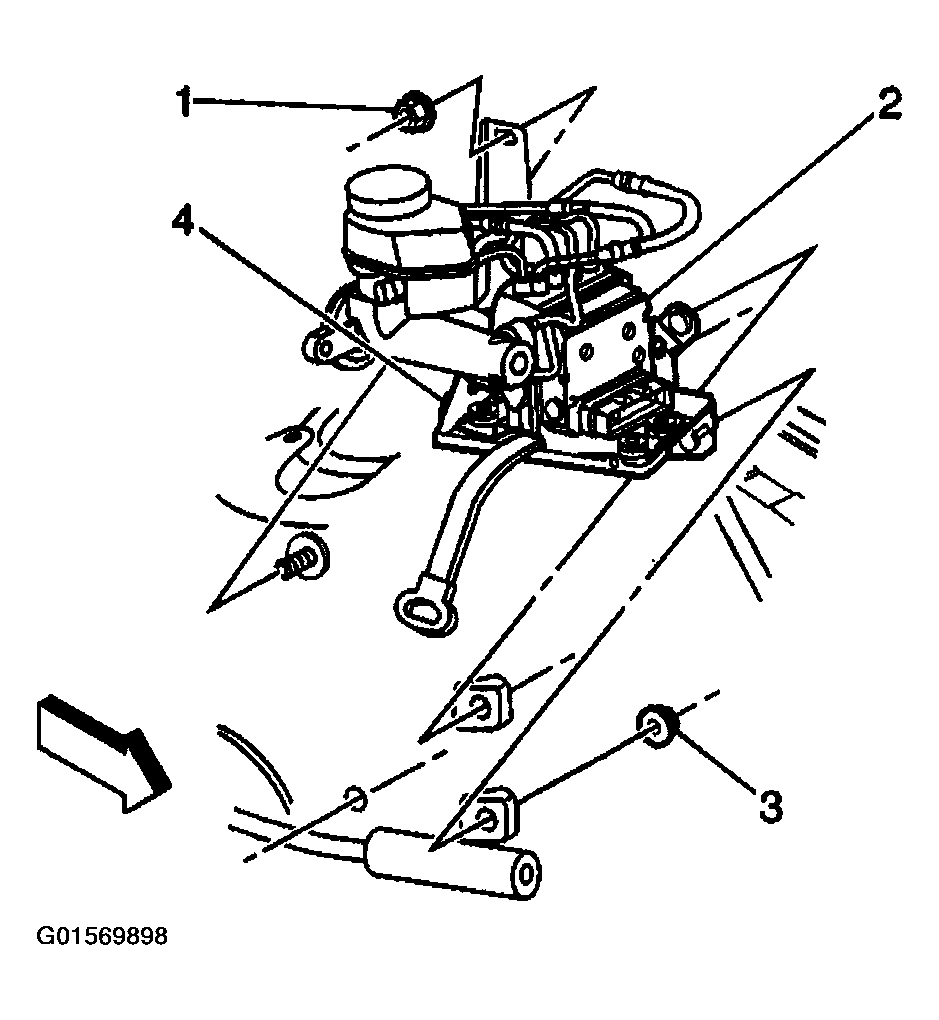

    Fig 1: Removing BPMV Mounting Bracket Nuts
    G01569898Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the ground strap between the EBCM assembly and the chassis.
  4. Remove the BPMV mounting bracket (4) from the vehicle.
  5. Remove BPMV and EBCM assembly (2) from the BPMV mounting bracket (4).
